Note:Keyboard commands belong to the position of the keys on your keyboard. Above commands are designed for keyboards in a QWERTZ layout. The commands may vary when used with other specific language keyboard layouts e.g. French AZERTY keyboard designs.
Fast Key
Hotkey
0
Freely selectable; ESC, DEL, and Enter
2
2x Scroll
3
2x Left Shift
4
2x Left Ctrl
5
2x Left Alt
6
2x Right Shift
7
2x Right Ctrl
8
2x Right Alt
Command
Description
Open OSD
2x Left Shift + o
Exit OSD
Escape
Exit the main menu or go back a step
Exit OSD menu
1x Left Shift + Escape
Exit the OSD within menu
USB HID
2x Left Shift + NUMXX = 1-4 (PC Port Number)
Switch the USB HID control to another target computer
Select Full Mode 1 Input
2x Left Shift + NUMX + EnterX = 1-4 (PC Port Number)
Focus on one video input in full screen mode
Select 2 Full Mode 2 Inputs
2x Left Shift + X + Y + EnterX = NUM1-4 (PC Port Number) Source 1Y = NUM1-4 (PC Port Number) Source 2
Focus on two inputs in full screen mode on main and secondary monitor
Select Video DisplayMode
2x Left Shift + X + EnterX = 1-4 (PC Port Number)
Focus on video input (1 to 4) in any display mode
Change Display Mode
2x Left Shift + F1

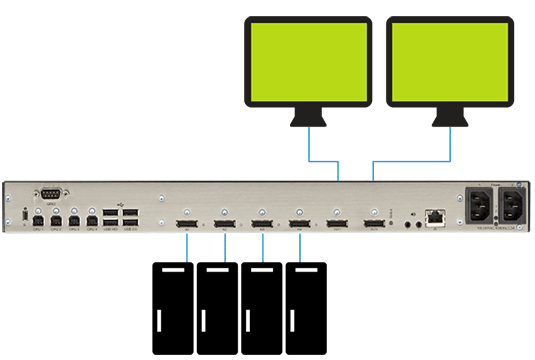

Change display to full screen mode
2x Left Shift + F2
Change display to quad screen
2x Left Shift + F3

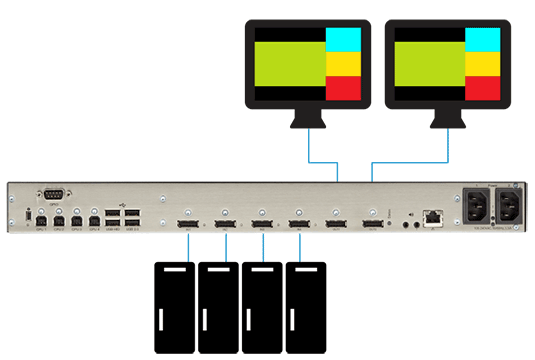

Change display to PiP mode
2x Left Shift + F4
Change display to preview mode
2x Left Shift + F5

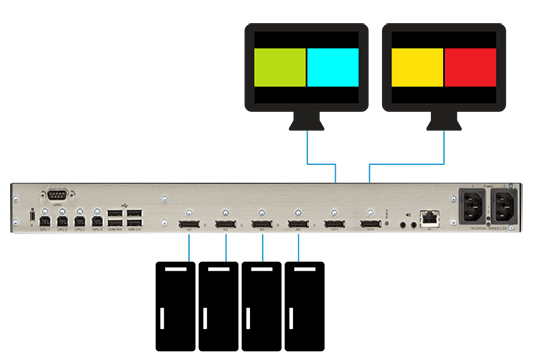

Change display to PbP mode
2x Left Shift + F9

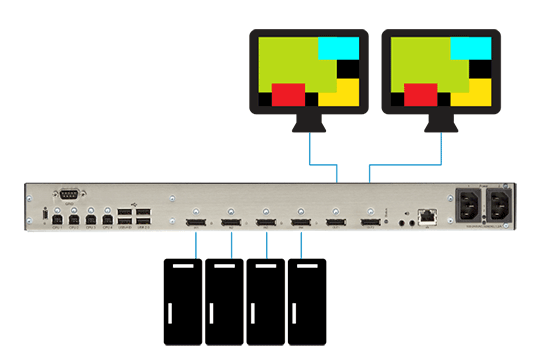

Change display to free mode layout 1
2x Left Shift + F10
Change display to free mode layout 2
2x Left Shift + F11
Change display to free mode layout 3
2x Left Shift + F12
Change display to free mode layout 4
Edit Free Mode
2x Left Shift + F8
Activate the edit mode of the free mode
H
Get HELP within activated edit mode
Control + o
Open one of the 4 stored layouts within edit mode
Control + r
Reset one or all layouts to the default layout(s)
Control + s
Save the layout
Control + 1
Open the free mode layout 1
Control + 2
Open the free mode layout 2
Control + 3
Open the free mode layout 3
Control + 4
Open the free mode layout 4
1
Toggle the window level of input 1 between fore- and background
Toggle the window level of input 2 between fore- and background
Toggle the window level of input 3 between fore- and background
Toggle the window level of input 4 between fore- and background
Exit the edit mode, discard or save changes
Control + Escape
End the editing of the free mode
Change pre-defined Hokey
2x Left Shift + c + new Hotkey + Enter
Change Hotkey according to the pre-defined hotkey table
Select free Hotkey
2x Left Shift + c + 0 + new Hotkey + Enter
Define a freely selectable Hotkey
Reset Hotkeys
1x Right Shift + delete
Reset the Hotkeys back to default settings enter command within 5 seconds after plugging in a keyboard
Fast Key for OSD opening
2x Left Shift + f + new Hotkey Code + Enter
Define a Fast Key to open the OSD directly from the pre-defined Hotkey table
Free Fast Key for OSD opening
2x Left Shift + f + o + new Hotkey Code + Enter
Define a freely selectable Fast Key to open the OSD directly
Delete Fast Key
2x Left Shift + f + o + Del + Enter
Delete the Fast Key
Restrict Mouse Switching
2x Left Shift + x + m + Enter
With activated MSC, restrict the automatic switching. The mouse cannot be moved over the edge of a window. Hot Mouse cannot be used.
Re-enable Mouse Switching
2x Left Shift + x + a + Enter
With restricted mouse switching of activated MSC, enable the automatic (mouse)switching. The mouse can be moved over the edge of a window. Hot Mouse funtion can be used if activated
Emerald VUE Display Modes
