MultiPower Miniature Fast Ethernet (100-Mbps) Media Converter - 10/100-Mbps Copper to 100-Mbps Fiber SFP

Extend LAN reach with fiber media converters.

Product Features

Compliant to EN62368
Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
Compact size; measures just 0.8"H x 1.8"W x 3.4"D.
Powered by a universal AC power supply or the optional rackmountable PowerTray.
Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
Converters may also be powered from a USB port using the LHC021A USB power cable.

Autonegotiates for speed and duplex.

A DIP switch enables Link Fault Pass-Through to be turned on and off for better troubleshooting.

Powered by the included universal AC power supply, a PC's USB port (with optional USB Power Adapter Cable), or the optional rackmountable PowerTray.

Auto MDI/MDI-X means you never need to worry about what kind of cable to use.

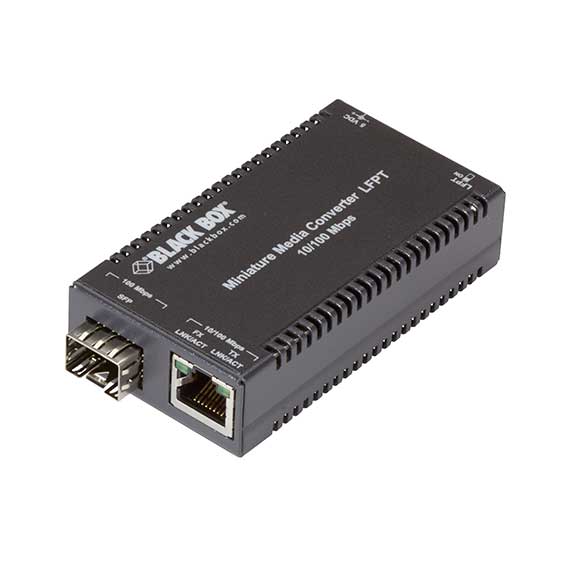

This Black Box MultiPower Miniature Media Converter makes it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to an SFP installed in the converter's opposite side. The SFP slot enables you to adapt the converter to any 100-Mbps fiber interface. Best of all, you can tuck this tiny converter unobtrusively behind your PC. The converter not only links 10- and 100-Mbps segments to fiber cabling, it also works as a data rate converter, performing 10/100 autonegotiation on the twisted-pair port. For extra versatility, you can power the Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable (LHC021A), or through the optional rackmount PowerTray (LHC018A-AC-R2).

6 Years Double Diamond™ Warranty (Standard)

Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box.

Our Double Diamond Warranty* protects your Black Box® brand products from manufacturing and/or material defects.

The LHC301A-R4 comes with a 6 Years Double Diamond™ Warranty (Standard) . During the warranty period, Black Box will repair or replace your damaged equipment at NO CHARGE!*

What’s more, we also have a 30-day return policy on most products. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package to receive a full refund.** Click here to find your local sales office to obtain a Return Authorization.

Extended Double Diamond Warranty.

Extend the warranty on select products or protect eligible previously purchased Black Box® brand items for an additional year - at just 10% of the original purchase price or for three years for only 20% of the purchase price.

* Warranty subject to certain exclusions and limitations. Click here to view our full terms and conditions.

** Returns contingent upon specific exclusions and limitations. Click here to view our full return policy.
