Five Types of Video Walls for Control Rooms

 Aug 15, 2016   |    Harry Ostaffe

The majority of control rooms have some sort of large display wall, whether a single or multiple screens, tiles, or projectors.  This helps to create large-scale visualization and a common operating picture for everyone in the control room.

There are several ways to implement video walls for control rooms depending on the level of complexity and budget.  The purpose of this post is a focus on the video processing aspects of the video wall, not on the display technologies.  To help put different options in perspective, the following descriptions are provided for comparison.


Basic Video Walls

The Monitor Wall is the simplest form of video wall as it is just a collection of individual monitors.  Each piece of content is limited to a single screen and cannot be scaled across multiple screens.  A monitor wall can be driven by dedicated sources, or it could be front-ended with a matrix switch (AV or KVM) to switch content on the screens.  Alternatively, an IP-based matrix can provide significant scale for switching the number of potential inputs in a distributed manner while avoiding a centralized matrix chassis.

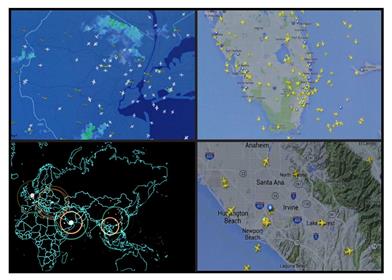

Basic Video Wall
















A Quad-Screen Wall is a 2x2 video wall on which a single input is scaled across all four monitors.  The wall could be front-ended with a matrix switch (AV or KVM) or even just a small presentation switcher if the number of inputs is limited.  Alternatively, an IP-based matrix can provide significant scale for switching the number of potential inputs in a distributed manner while avoiding a centralized matrix chassis.

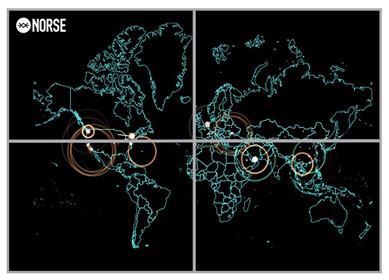

Quad Screen Wall














Intermediate Video Walls

A Multi-Window Video Wall can support content that scales across multiple screens, can be larger than a 2x2, but the content windows are limited to screen sizes.   For example, with a 4x4 wall, up to four 2x2 windows could be displayed, or a 3x3 window with 7 additional single screen windows, or the entire 4x4 could be a single window.  Or, there could be two 2x2 windows with eight additional single screen windows.  An IP-based matrix solution is a very easy and low cost way to implement this type of video wall.

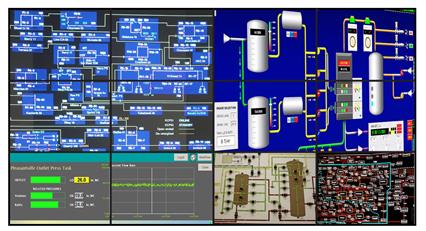

Intermediate Video Wall













A Multi-View Video Wall is driven by a multi-viewer, which is a video processor that provides a limited number of pre-designed layouts for a single output.  Options typically range from 4-8 windows.  A multi-viewer can be used when the number of windows and scalability of a larger video wall processor is not required.  A multi-viewer can also be coupled with a projector or quad-screen wall processor to increase the viewing size.


Advanced Video Wall

An Advanced Video Wall is one that supports a large number of screens of different form factors (e.g. 2x2, 3x2, 6x3, etc.) and offers a canvas-type display interface on which numerous content windows can be dynamically moved or resized.  Advanced video wall processors support dozens of screens and numerous types of video inputs. The processor can also support native decoding of IP streams for displaying large numbers of streams from IP-based security cameras, and can also support encoding of video sources for sharing to additional sites or users.  Advance wall processors can typically drive more than one video wall from the same system.

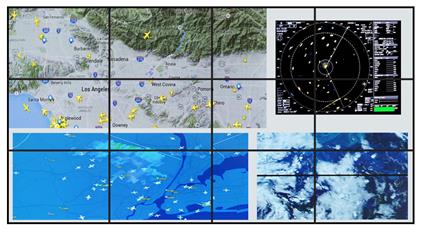

Radian Video Wall














Below is a summary of several features and capabilities of the different type of video wall processors used in control rooms.

Control Room Video Wall Types



Basic

Basic

Intermediate

Intermediate

Advanced



Monitor Wall

Quad-Screen Wall

Multi-Window Video Wall

Multi-View Video Wall

Advanced Video Wall

Content Windows

1 per screen

One for the entire wall

Multiple sizes, typically limited to 4x4

Typically 4-8

Only limited by practical viewing size

Content Size

Limited to single screens

One image across all screens

Limited to screen boundaries

All windows on a single video output, but can feed into other wall processors.

Windows can be freely moved and resized anywhere on the screen

Window Resizing

No

No

Yes, limited to screen boundaries (e.g. increase a 2x2 to 3x3)

Yes, typically based on pre-set window layouts but PiP and Windowed views can be scaled.

Yes. Any window can be any size.

Video Input Types

Limited. Monitor inputs type limit options unless driven by a flexible matrix switch.

Limited. Typically a single video type such as HDMI, DVI, or DispalyPort

Limited, but modular processors typically support multiple input types.

Limited, but modular multi-viewers typically support multiple input types.

Typically support all standard video types including VGA, Component, Composite, DVI, HDMI, DisplayPort, SDI, and IP.

Black Box Product

MediaCento IPX

MediaCento IPX; VideoPlex4

MediaCento IPX

4Site

Radian



With the range of capabilities for video wall processors, it may be difficult to distinguish which type is most appropriate for your needs.  In addition, there may be some other components needed to create a complete solution.  Black Box provides expert engineering support to design a solution that meets your technical and budgetary requirements.  Contact our technical team today for a free, customized system design.
