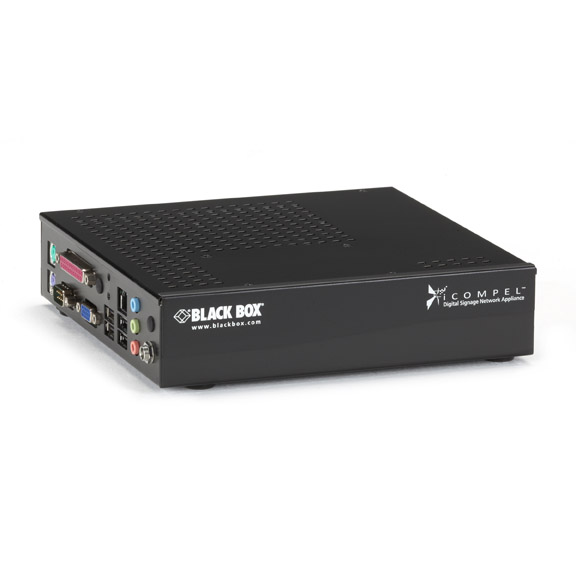

iCOMPEL K Series VESA Kiosk Player

A very affordable iCOMPEL player for attention-getting, standalone signage.

ICKS-VE-KU-N

Extended Double Diamond™ Warranty Available
(2 Additional Year)

Product Highlights

  • Sets up fast with all software preinstalled.
  • Free updates and no ongoing subscription or licensing fees for lower cost of ownership.
  • A VESA-mountable standalone player for single-screen signage setup.
  • Ideal for kiosk applications.

  • Description

    iCOMPEL K Series VESA Kiosk Player


    Quick Facts

  • Sets up fast with all software preinstalled.
  • Free updates and no ongoing subscription or licensing fees for lower cost of ownership.
  • A VESA-mountable standalone player for single-screen signage setup.
  • Ideal for kiosk applications.

  • Further Details

  • Controllable via a standard Web browser connection.
  • Includes free professionally designed screen layouts.
  • Content can be updated locally at the screen. Instantly add text messages or alerts for an audience.
  • Supports resolutions up to 2048 x 1536 on its VGA video output.
  • Plays up to two simultaneous videos—great for showing different videos on a screen.
  • Also supports unlimited zones for text and images, and up to 15 zones for HTML.
  • Easy to change and alter layouts and graphical effects with drag-and-drop tools.
  • Set up multizone layouts with each zone playing different media from its own playlist.
  • Simple to stream dynamic RSS feeds from the Internet. Supports XML.
  • Rotate screen images for either portrait or landscape orientation.
  • Highly secure Linux® based player with built-in firewall.
  • GPIO external device input capabilities (for motion detectors, sensors, etc.).
  • Small form factor with SSD drive. VESA mounts on back of screen.

    Gather, distribute, and manage digital signage content easily with our iCOMPEL™ K Series VESA Kiosk Player appliance.

    Designed for standalone (single-screen) applications, the player works right out of the box with all software preinstalled—and no recurring licensing fees to deal with later. Plus software updates are free for a lower cost of ownership.

    It's also easy to use, giving you the flexibility to create attention-getting digital signage without a lot of creative or technical know-how. Even better, iCOMPEL is easy to integrate; it won't cause IT and security headaches when added to your network. Install the iCOMPEL K Series VESA Kiosk Player on your network and manage it via a Web browser.

    The iCOMPEL K Series VESA Kiosk Player offers:
    • The ability to show video in two zones simultaneously.
    • Support for the display of Flash alongside of video, static images, HTML, XML, RSS Web content.
    • 40 GB of onboard SSD storage for your digital signage content.
    • A small form factor with hardware for VESA mounting on the back of a display.

    Easy to set up and import media.
    Setup is easy. To get started, you simply connect the iCOMPEL player to your network and to a display. After booting up, the iCOMPEL unit automatically obtains an IP address from the network. Fixed IP addresses can also be set.

    Now, it's time to get creative! Begin by dragging and dropping media from your computer desktop or a folder to the iCOMPEL media folders on the player's hard disk or use its intuitive interface to browse for files.

    Because iCOMPEL supports many media formats, you can combine video with scrolling text, photos, Flash, and Web content. In addition to HTML, XML, and RSS media, it handles MPEG, AVI, QuickTime®, and PowerPoint® media*; JPEG, GIF, and TIFF images; and WAV and MP3 audio.

    Productivity tools on the player enable you to deliver a high-impact display at the right time in the right place, whether it's stored media, such as promotional ads, or Web media, including XML and RSS feeds.

    A built-in firewall keeps access limited to authorized users only, and there's no need to install any third-party software or virus protection. iCOMPEL uses HTTP and HTTPS security protocols, and supports the LDAP authentication protocol and VPN capabilities for secure remote access.

    Includes sophisticated layout tools.
    The included software comes with a number of free layouts, so you can be up and running, displaying your choice of content in a professionally designed format within minutes.

    Or you can create your own. The user-friendly layout and design tool makes it easy to create and modify layouts. Adjust, resize, position, and layer zones with a simple click and drag. All zones can be displayed with transparency.

    Also, you can manually set pixel or percentage measurements to achieve pixel-accurate alignment or lock a movie zone to a desired aspect ratio (16:9, 5:4, or 4:3).

    Set up one or more screen layouts containing one or more zones for display. Every zone in the display layout has its own playlist, to which you can add multiple media files. Each playlist runs in a continuous loop per a preset schedule. Different layouts can be scheduled to play at different times of the day.

    You can also add a video file stored on the internal disk, show text from an internal feed, and more. What's more, RSS subscriber features enable you to automatically collect and display text crawl feeds from the Internet—which is great for streaming news or stock tickers.

    Other iCOMPEL versions available.
    The latest evolution of the iCOMPEL platform includes models spanning four series, with the series differing mainly in their processing speeds, storage capabilities, video zones supported, and their role in a signage application.

    In addition to the K Series player featured here, we also offer a K Series kiosk player with built-in Wi-Fi (ICKS-VE-KU-W), as well as K Series versions for interactive touchscreen kiosks, available standard (ICKP-VE-IU-N) and with Wi-Fi (ICKP-VE-IU-W).

    Separate from the K Series, our iCOMPEL line includes:
    • The P Series, our highest-performing version for video-intensive signage and showing professional Flash (publisher and subscriber versions).
    • The S Series, our standard iCOMPEL appliances for applications not requiring advanced HD video and Flash rendering (publisher and subscriber versions).
    • The O Series, pluggable versions for installing in a screen's Intel® OPS slot (publisher and subscriber versions).

    iCOMPEL units can be ordered with an HDMI® video capture card for pure digital HD video input (P Series and S Series); a TV card with analog RF, digital RF, S-Video, and Composite ports for connecting to CATV or a DTV antenna (S Series only); and/or built-in Wi-Fi capabilities (all series except for O Series).

    * PowerPoint media is a slideshow saved as a .wmv file.

  • Technical Specifications for iCOMPEL K Series VESA Kiosk Player:

    CPU Processor Intel® Atom® D525
    System RAM 2048 MB
    System Storage 40 GB SSD
    Video Output Resolution Analog to 2048 x 1536
    CE Approval Yes
    RoHS Yes
    Connectors Video: (1) HD15 F (VGA);
    Audio: (2) 3.5-mm stereo jacks, (1) 3.5-mm microphone jack;
    USB: (4) USB Type A F (USB 2.0);
    Ethernet: (1) RJ-45 (10/100/1000 Mbps);
    Serial: (1) DB9 M (RS-232); Keyboard/mouse: (2) 6-pin mini DIN;
    Legacy printer: (1) DB25 F
    Power Input: 90-250 VAC, 50-60 Hz
    Size 1.8"H x 7.9"W x 7.5"D (4.6 x 20.1 x 19.1 cm)
    Weight 2.9 lb. (1.3 kg)
    You may also need:
    • iCOMPEL Remote Control (ICOMP-RC)
    • iCOMPEL Stream-Out Feature Key (ICOMP-OUT)
    • iCOMPEL Stream-In Feature Key (ICOMP-IN)
    Need assistance ordering your iCOMPEL appliance or designing your complete end-to-end digital signage system? Just contact our FREE 24/7 Tech Support. Also contact us for a one-on-one demo of the iCOMPEL system and its easy-to-use software.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Connect your iCOMPEL K Series VESA Kiosk Player with:
