Digital Signage & Multimedia > Digital Signage Platforms & Players

click photo to enlarge

ICOMP03-S

Photo may show similar product

Other views

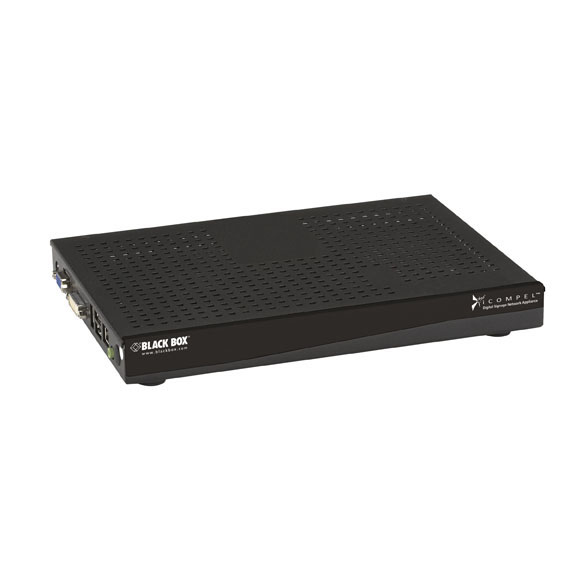

iCOMPEL HD Digital Signage Subscriber Only (32 GB Solid-State, Ruggedized)

A compact, ruggedized iCOMPEL subscriber unit for remote screens.

ICOMP03-S

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Use with an iCOMPEL publisher unit for fast digital signage deployment.
  • Works right out of the box with software preinstalled and tested.
  • Controllable via a standard Web browser connection.
  • A compact, rugged player with 32 GB of solid-state storage for use in vibration-heavy areas.

  • Description

    iCOMPEL HD Digital Signage Subscriber Only (32 GB Solid-State, Ruggedized)


    Quick Facts

  • Use with an iCOMPEL publisher unit for fast digital signage deployment.
  • Works right out of the box with software preinstalled and tested.
  • Controllable via a standard Web browser connection.
  • A compact, rugged player with 32 GB of solid-state storage for use in vibration-heavy areas.

  • Further Details

  • Features a fanless design, no moving parts, and solid-state media storage drive.
  • Measures just 1" high and is VESA screen mountable for attaching to the back of a display.
  • Use it as a subscriber in a networked iCOMPEL application. Set up multiple units as subscribers for a publisher unit.
  • Screen content can be updated locally. Instantly add text messages or alerts, or customize content for an audience.
  • Provides an output resolution up to 2048 x 1536.
  • Supports two video zones—great for showing video feeds side by side!
  • Also supports unlimited zones for text, photo stills, and audio content, and up to 15 zones for HTML.
  • Plus, all zones can be displayed with transparency.
  • Equipped with both DVI and VGA video ports, and three USB ports.
  • Rotate screen images for portrait or landscape display.
  • Highly secure, Linux® based with a built-in firewall.
  • Connects to 10-/100-/1000-Mbps Ethernet networks.
  • GPIO capabilities for external device inputs (from infrared motion detectors, sensors, switches, etc.).
  • Low power consumption.

    Gather, distribute, and manage digital signage content easily with our updated iCOMPEL HD digital signage network appliance platform.

    Install this ruggedized subscriber-only iCOMPEL (ICOMP03-S) on your network and manage it via a browser from any PC or Mac® on a WAN. This iCOMPEL functions as a player for media streamed from an iCOMPEL publisher over a network—even if it’s on the other side of the world.

    Scaling from a standalone installation to a multichannel network with many screens is a matter of simply adding more iCOMPEL units to your standard IT network configuration. As a subscriber, it pulls down new content and instructions from the iCOMPEL publisher unit, an FTP client, or a USB storage device.

    Like other units in the latest evolution of the iCOMPEL digital signage line, the ICOMP03-S features a maximum video output resolution of 2048 x 1536 for vivid digital displays. It’s powered by a 1.6-GHz Intel Atom™ processor and is designed for use in areas with lots of equipment vibration.

    You can even VESA mount it on the back of a screen. Built tough and featuring a 32 GB solid-state drive for media storage and a fanless design, it’s perfect for factory floor, industrial automation, and mass transit digital signage applications.

    Use it in garages, public kiosks, sports venues, and subway stations—basically anywhere you don’t want the rumbling of feet or trains to affect your digital signage operation.

    Though it’s optimized for use with our compact iCOMPEL HD Digital Signage Appliances (ICOMP02-H and ICOMP02-S), the subscriber unit can be used with other central media publishing appliances in the iCOMPEL line, too.

    As for ports, the ICOMP03-S has both digital DVI-D video and analog VGA video ports, and three USB ports. It supports two video zones and, as with all iCOMPEL units, supports 15 zones for HTML content, and unlimited zones for text, stills, and audio. All zones can be displayed with transparency.

    NOTE: This is a subscriber-only unit. Though quite powerful, it can only be used to receive digital signage content published by an iCOMPEL Digital Signage Appliance. For more information, contact our FREE Tech Support.

    This product works with:
    • iCOMPEL HD Digital Signage Appliance, 160 GB (ICOMP02-H)
    • iCOMPEL HD Digital Signage Subscriber Only, 160 GB (ICOMP03-H)
    • iCOMPEL HD Digital Signage Appliance, 32 GB Solid-State, Ruggedized (ICOMP02-S)
    • iCOMPEL HD Plus High-Speed Digital Signage Appliance, 500 GB (ICOMP)
    • iCOMPEL HD Plus High-Speed Digital Signage Appliance, 500 GB with Video Capture Card (ICOMP-VID)
    • iCOMPEL HD Plus Digital Signage Appliance, 160 GB (ICOMP01)
    • iCOMPEL HD Plus Digital Signage Appliance, 160 GB with Video Capture Card (ICOMP01-VID)
    You may also need:
    • iCOMPEL USB HID Touchscreen Feature Key (ICOMP-TOUCH)
    • iCOMPEL Stream-Out Feature Key (ICOMP-OUT)
    • iCOMPEL Stream-In Feature Key (ICOMP-IN)
    Need assistance ordering your iCOMPEL appliance or designing your complete end-to-end digital signage system? Just contact our FREE 24/7 Tech Support. Also contact us for a one-on-one demo of the iCOMPEL system and its easy-to-use software.

  • Technical Specifications for iCOMPEL HD Digital Signage Subscriber Only (32 GB Solid-State, Ruggedized):

    CPU Processor — 1.6-GHz Intel Atom™
    Memory — 1 GB RAM
    Media Storage — 160 GB, 5400 RPM HDD
    Media Supported — HTML; XML; JavaScript; Flash; Real; MPEG 1, 2, 4 (DivX®); AVI; QuickTime; GIF; TIFF; JPEG; PNG; scrolling or static text; RSS feeds; MP3; WAV
    Media Zones Supported — Unlimited text, stills, audio; (15) HTML zones; (2) video zones; transparent zone capable
    Resolution (Maximum) — Output: 2048 x 1536
    CE Approval — Yes
    Connectors — (1) HD15 F (VGA); (1) DVI-D F; (1) RJ-45 (10/100/1000); (1) DB9 M (RS-232); (3) USB Type A; (1) 3.5-mm F audio
    Power — Input: 100–240 VAC, 50–60 Hz;
    Consumption: 12 W
    Size — 1"H x 10"W x 6.5"D (2.5 x 25.4 x 16.5 cm)
    Weight — 2.9 lb. (7.4 kg)
    This product works with:
    • iCOMPEL HD Digital Signage Appliance, 160 GB (ICOMP02-H)
    • iCOMPEL HD Digital Signage Subscriber Only, 160 GB (ICOMP03-H)
    • iCOMPEL HD Digital Signage Appliance, 32 GB Solid-State, Ruggedized (ICOMP02-S)
    • iCOMPEL HD Plus High-Speed Digital Signage Appliance, 500 GB (ICOMP)
    • iCOMPEL HD Plus High-Speed Digital Signage Appliance, 500 GB with Video Capture Card (ICOMP-VID)
    • iCOMPEL HD Plus Digital Signage Appliance, 160 GB (ICOMP01)
    • iCOMPEL HD Plus Digital Signage Appliance, 160 GB with Video Capture Card (ICOMP01-VID)
    You may also need:
    • iCOMPEL Wi-Fi Module (ICOMP-WIFI)
    • iCOMPEL USB HID Touchscreen Feature Key (ICOMP-TOUCH)
    • iCOMPEL Stream-Out Feature Key (ICOMP-OUT)
    • iCOMPEL Stream-In Feature Key (ICOMP-IN)
    • iCOMPEL Remote Control (ICOMP-RC)
    Need assistance ordering your iCOMPEL appliance or designing your complete end-to-end digital signage system? Just contact our FREE 24/7 Tech Support. Also contact us for a one-on-one demo of the iCOMPEL system and its easy-to-use software.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for iCOMPEL HD Digital Signage Subscriber Only (32 GB Solid-State, Ruggedized):

    Manuals

    • iCompel Digital Signage-User Guide
      User Guide for the ICOMP, ICOMP-VID, ICOMP01-R2, ICOMP01-VID-R2, ICOMP02-H, ICOMP02-S, ICOMP03-H, and ICOMP03-S (v8.1.1)
    • Technical Reference Guide
      Technical Reference Guide for the ICOMP, ICOMP-VID, ICOMP01-R2, ICOMP01-VID-R2, ICOMP02-H, ICOMP02-S, ICOMP03-H, and ICOMP03-S
