Digital Signage > Digital Signage Platforms & Players

click photo to enlarge

ICOMP-IDM49

Photo may show similar product

Other views

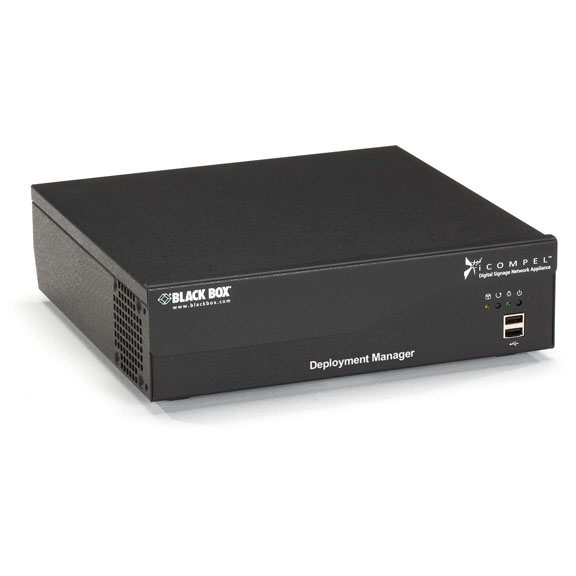

iCOMPEL Deployment Manager (iDM) for 49 Subscribers

Simplify control of up to 49 iCOMPEL players in larger digital signage deployments.

ICOMP-IDM49

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Enables you to manage your digital signage network(s) remotely from any location.
  • Brings greater visibility and control of your multiplayer iCOMPEL application.
  • Cuts ongoing operation costs and helps to ensure digital signage uptime.


    • Description

    iCOMPEL Deployment Manager (iDM) for 49 Subscribers


    Quick Facts

  • Enables you to manage your digital signage network(s) remotely from any location.
  • Brings greater visibility and control of your multiplayer iCOMPEL application.
  • Cuts ongoing operation costs and helps to ensure digital signage uptime.

    • Further Details

  • Reduces the need for on-site maintenance of iCOMPEL players.
  • Easily controllable via a standard Web browser connection.
  • Gives you the live status for individual or groups of iCOMPEL players.
  • Assign iCOMPEL units to organization and to user groups.
  • Provides at-a-glance view of iCOMPEL publish and subscribe operations in a channel.
  • Generates reports detailing player performance over user-defined periods.
  • Offers multiclient operation with ability to assign individual log-in credentials.
  • For secure remote configuration, can be set up to work within a VPN.
  • Supports monitoring of iCOMPEL units behind firewalls.
  • Reports on iCOMPEL alarm conditions with time stamps.
  • Can be set up to send e-mail alerts when alarms are raised or lowered.
  • Expandable. When screens and players increase, simply upgrade your license.
  • Enables you to generate reports. Great for verifying media playout organization-wide.
  • Built-in SQL database for detailed reporting through third-party applications.
  • Secure, Linux® based appliance, uses 128-bit encrypted communications.
  • Powered by Intel® Pentium® Core 2 Duo processor.
  • Equipped to connect to a 10-/100-/1000-Mbps network.
  • Wallmountable with the optional wallmount kit (ICOMP-WALL).
  • Or mount it in a rack with the optional rackmount ears (ICOMP-RACK).

    You’ve rolled out your iCOMPEL™ digital signage to support multiple screens. You like what you see, but you’re looking to simplify the management of all players in your burgeoning organization.

    You need the iCOMPEL Deployment Manager (iDM). It simplifies the task of managing multiple media channels in larger applications where multiple iCOMPEL publisher and subscriber player components are used.

    Web browser accessible, the iDM provides centralized management of and reporting for many iCOMPEL units. With the model featured here, you can control 49 units, but models are also available for controlling 24 units or as many as 999 individual players.

    Once connected to the appliance, your many iCOMPEL players are represented in the iDM’s easy-to-manage GUI interface. It gives you complete visibility of your digital signage network. Display the specific players as pushpins on a geographic map or in a sortable, tabular list. If necessary, drill down to the individual players to check their status.

    Manage your digital assets.
    As a versatile, "asset manager" platform, the iDM gives you a single appliance to monitor and remotely manage all your iCOMPEL players—even if they're geographically separated in different offices.

    With the iDM, you can group iCOMPEL units into organizations. Folders within the iDM GUI enable your many iCOMPEL players to be grouped more logically, such as into stores, or by content type.

    Each iCOMPEL in the network is set up to periodically report its status to the iDM. Because this status information resides in a database, it can be searched and queried when you seek specific configuration and performance details.

    You also have the option of setting the the iDM to work as a VPN server, so the individual iCOMPEL units can access it from behind firewalls using AES 128-bit encrypted communications. Transport Layer Security (TLS) V1 protocols enable you to securely authenticate players into the VPN.

    Advanced reporting functions.
    Plus, the iCOMPEL iDM offers live and historic status reporting. Compile detailed reports showing what signage layouts played on specific days and in what location.

    Reports show start/end times and the duration of playout, information that can be exported as a .csv file for analysis in Excel® or another spreadsheet program or into an external database application. Use the iDM for creating media auditing reports, for example.

    You can also generate thumbnail reports, in which image thumbnails of the iCOMPEL screens are shown through the iDM GUI interface so you can see the current status of individual units.

    What’s more, you can configure an iCOMPEL player to send RS-232 messages to an attached display, and the response you get from that display can be reported through the iDM using tools such as Crystal Reports™.

    Alarm notification capabilities.
    Alarms can be set up through the iDM to notify you and/or other users by e-mail when certain conditions present a threat to the normal operation of individual iCOMPEL players.

    Receiving these alarms, you’ll know when the temperature of a player's CPU or disk approaches maximum levels, or when free disk space goes below a certain level, for example.

    You can also be informed of when the normal iCOMPEL schedule is overridden and hasn’t returned to normal, when there's a loss of time synchronization between units, or when the software version installed on an iCOMPEL doesn't match a specified version.

    In addition, you can set the iDM up to not generate alarm conditions in periods of planned iCOMPEL units' downtime.


    • Technical Specifications for iCOMPEL Deployment Manager (iDM) for 49 Subscribers:

    CPU Processor — Intel® Pentium® Core 2 Duo
    Memory — 2 GB RAM
    Media Storage — 500 GB, 7200 RPM HDD
    CE Approval — Yes
    Connectors — (1) HD15 F (VGA); (1) DVI-D F; (1) RJ-45 (10/100/1000); (1) DB9 M (RS-232); (2) 6-pin mini DIN F (keyboard/mouse); (6) USB Type A F; (3) 3.5-mm F audio
    Power — Input: 100–240 VAC, 50–60 Hz;
    Consumption: 60 W
    Size — 3"H x 11"W x 10.5"D (7.6 x 27.9 x 26.7 cm)
    Weight — 9.4 lb. (4.3 kg)
    This product works with:
  • iCOMPEL Wallmount Kit (ICOMP-WALL*)
  • iCOMPEL Rackmount Ears (ICOMP-RACK*)
  • iCOMPEL HD Plus High-Speed Digital Signage Appliance, 500 GB (ICOMP)
  • iCOMPEL HD Plus High-Speed Digital Signage Appliance, 500 GB with Video Capture Card (ICOMP-VID)
  • iCOMPEL HD Plus Digital Signage Appliance, 160 GB (ICOMP01-R2)
  • iCOMPEL HD Plus Digital Signage Appliance, 160 GB with Video Capture Card (ICOMP01-VID, ICOMP01-VID-R2)
  • iCOMPEL HD Digital Signage Appliance, 160 GB (ICOMP02-H)
  • iCOMPEL HD Digital Signage Subscriber Only, 160 GB (ICOMP03-H)
  • iCOMPEL HD Digital Signage Appliance, 32 GB Solid-State, Ruggedized (ICOMP02-S)
  • iCOMPEL HD Digital Signage Subscriber Only, 32 GB Solid-State, Ruggedized (ICOMP03-S)
    Need assistance designing your complete end-to-end digital signage system? Just contact our FREE 24/7 Tech Support.

    * ICOMP-WALL was previously available as the AC4007; ICOMP-RACK was previously available as the AC4008.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    • Resources for iCOMPEL Deployment Manager (iDM) for 49 Subscribers:

    Manuals

    • iCOMPEL Deployment Manager (iDM) Manual
      Manual for the ICOMP-IDM24, ICOMP-IDM49, ICOMP-IDM999, ICOMP-IDM24-UP49, ICOMP-IDM24-UP999, and ICOMP-IDM40-UP999 (Version 1)
      httpftp

    Product Data Sheets


    Connect your iCOMPEL Deployment Manager (iDM) for 49 Subscribers with:
