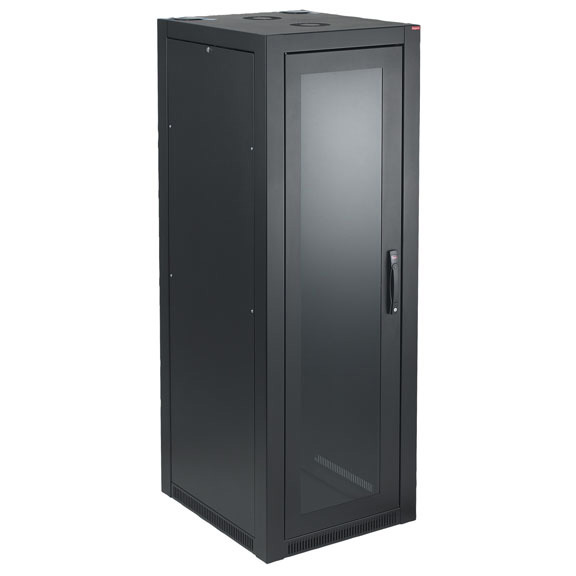

Zone 4 Seismic Cabinet, 45U, 84"H x 28"W x 40"D

Rock the server cabinet that won't be rocked.

RM5100A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Weight capacity of 1100 pounds.
  • Constructed of heavy-gauge welded steel.
  • Protects servers, networking equipment, and telephony equipment through Zone 4 seismic activity.


  • Description

    Zone 4 Seismic Cabinet, 45U, 84"H x 28"W x 40"D


    Quick Facts

  • Weight capacity of 1100 pounds.
  • Constructed of heavy-gauge welded steel.
  • Protects servers, networking equipment, and telephony equipment through Zone 4 seismic activity.

  • Further Details

  • Vented heavy-gauge steel base can be bolted to floor with seismic-rated fasteners.
  • Performance rating based on NEBS-Telcordia GR-63-CORE standard vibration test.
  • Reinforced front door features smoke gray acrylic window.
  • EIA standard for 19" rackmount equipment.
  • Door equipped with 3-point latching and keylock handle.
  • Door and side panels removable for easy installation and access.
  • Top features two cable entry ports with caps and grommets, and two fan-ready cutouts with finger guards.
  • Dynamic load rating of 1000 pounds (454 kg) for earthquake zones; static load rating of 2500 pounds (1134 kg) for non-earthquake zones.


  • If it can stand up to the activity in California, it can handle what happens in your server room. The Zone 4 Seismic Cabinet is designed to protect up to 1000 pounds of server room equipment from the rigors of Zone 4 seismic activity. And because it meets EIA standards, the cabinet can be used in different applications with 19-inch rackmount equipment and fans.

    The top of the cabinet features two cable entry ports with caps and grommets, and two fan-ready cutouts with finger guards. With its "chimney" effect, the cabinet cools mounted equipment by drawing cool air through louvers and venting the heated air through the top.


    Technical Specifications for Zone 4 Seismic Cabinet, 45U, 84"H x 28"W x 40"D:

    "
    Construction — Heavy-gauge steel
    Finish — Textured, low-gloss black polyester powder paint
    Rack Units —  45U
    Weight Capacity — 1100 lb. (499 kg)
    Dimensions — 84"H x 28"W x 40"D (213.4 x 71 x 101.6 cm)
    "


    NOTE: Ships via motor freight.




    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Zone 4 Seismic Cabinet, 45U, 84"H x 28"W x 40"D:

    Manuals

    • Zone 4 Seismic Cabinet User Manual
      User Manual for the RM5100A and RM5110A (Version 1)
