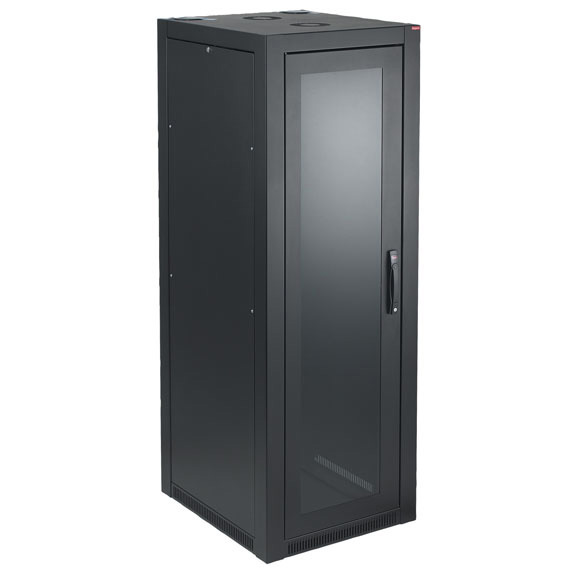

Zone 4 Seismic Cabinet - 45U, 84"H x 28"W x 32"D

Designed to protect your equipment through Zone 4 seismic activity.

RM5110A

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Weight capacity of 1100 pounds.
  • Constructed of heavy-gauge welded steel.
  • Protects servers, networking equipment, and telephony equipment through Zone 4 seismic activity.


  • Further Details

  • Vented heavy-gauge steel base can be bolted to floor with seismic-rated fasteners.
  • Performance rating based on NEBS-Telcordia GR-63-CORE standard vibration test.
  • Reinforced front door features smoke gray acrylic window.
  • EIA standard for 19" rackmount equipment.
  • Door equipped with 3-point latching and keylock handle.
  • Door and side panels removable for easy installation and access.
  • Top features two cable entry ports with caps and grommets, and two fan-ready cutouts with finger guards.
  • With its"chimney" effect, the cabinet cools mounted equipment by drawing cool air through louvers and venting the heated air through the top.
  • Dynamic load rating of 1000 pounds (454 kg) for earthquake zones; static load rating of 2500 pounds (1134 kg) for non-earthquake zones.


  • If it can stand up to the activity in California, it can handle what happens in your server room. The Zone 4 Seismic Cabinet is designed to protect up to 1000 pounds of server room equipment from the rigors of Zone 4 seismic activity. And because it meets EIA standards, the cabinet can be used in different applications with 19-inch rackmount equipment and fans.

    The top of the cabinet features two cable entry ports with caps and grommets, and two fan-ready cutouts with finger guards. With its "chimney" effect, the cabinet cools mounted equipment by drawing cool air through louvers and venting the heated air through the top.

    Construction Heavy-gauge steel
    Finish Textured, low-gloss black polyester powder paint
    Rack Units 45U
    Weight Capacity 1100 lb. (499 kg)
    Dimensions 84"H x 28"W x 32"D (213.4 x 71 x 81.3 cm)
    "

    NOTE: Ships via motor freight.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.
