Cabinets & Racks > Open Racks

click photo to enlarge

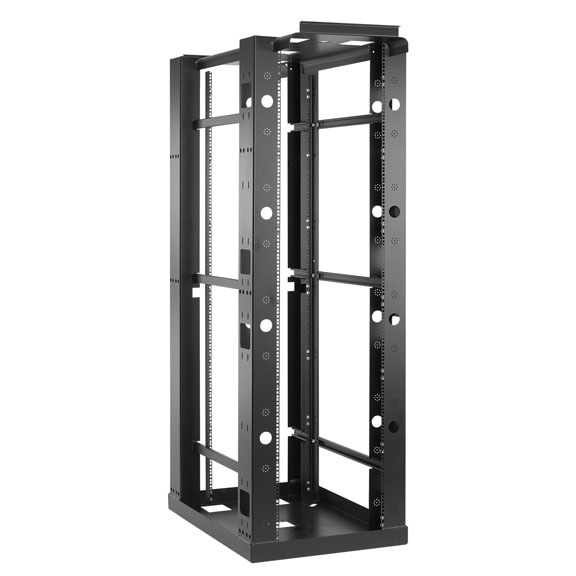

RM5210A

Photo may show similar product

Other views

Zone 4 4-Post Seismic Rack with M6 Rails

Get the mounting security of a cabinet with the convenience of an open rack.

RM5210A


One year Warranty

Product Highlights

  • Weight capacity of 1000 pounds
  • Constructed of 10-gauge steel.
  • Meets California Building Code requirements.
  • Fully welded for maximum rigidity.
  • Pre-drilled holes on the top make runway installation a cinch.
  • Cable entry cutouts on the top and bottom.

  • Description

    Zone 4 4-Post Seismic Rack with M6 Rails


    Quick Facts

  • Weight capacity of 1000 pounds
  • Constructed of 10-gauge steel.
  • Meets California Building Code requirements.
  • Fully welded for maximum rigidity.
  • Pre-drilled holes on the top make runway installation a cinch.
  • Cable entry cutouts on the top and bottom.

  • Further Details

  • Integral front waterfall top.
  • Easily joins with other 4-post or 2-post racks to meet all your equipment mounting needs.
  • EIA standard to fit 19" rack equipment and accessories.
  • Grounding kit included.

    Dynamic load rating of 1000 pounds (454 kg) for earthquake zones; static load rating of 2500 pounds (1134 kg) for non-earthquake zones.

    The Zone 4 4-Post Seismic Rack gives you the mounting security of a cabinet with the convenience of an open rack. An adjustable depth and solid base make this rack well suited for heavy, deep networking equipment, telephone and voice mail equipment, routers, servers, and switches. This rack easily exceeds the load capacity of a 2-post rack.

    With standard rails, 19" rack accessories and equipment mount easily in this open frame rack. Additionally, it can be bayed with other 2- and 4-post racks to encompass your server and equipment storage needs.

  • Technical Specifications for Zone 4 4-Post Seismic Rack with M6 Rails:

    Construction — 10-gauge steel
    Rack Units — 45U
    Size — 84"H x 39.9"W x 26.75"D (213.4 x 101.3 x 68 cm)
    Weight Capacity — 1000 lb. (453.6 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
