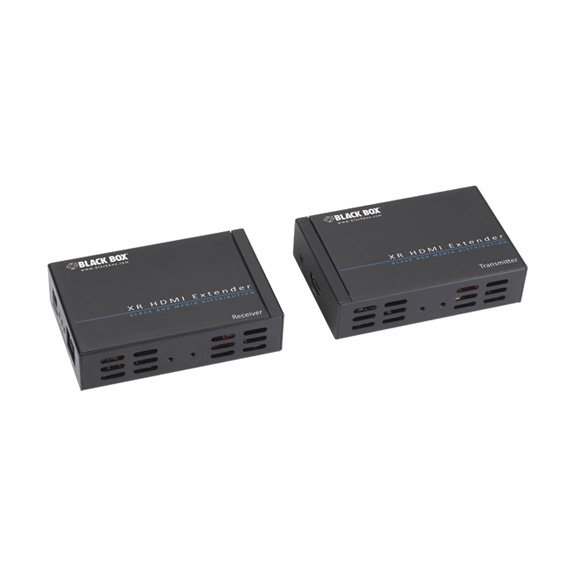

XR HDMI and IR Extender

XR: The "eXtended Range" HDMI video distribution solution for lower cabling costs and enhanced control.

VX-HDMI-TP-100M

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Uses a single CAT5e/6 run, reducing cable clutter and simplifying HDMI® signage deployment.
  • Extends uncompressed HD video, audio, and control signals up to 328 feet (100 m)*.
  • Supports IR extension with CEC passthrough. Control source devices at the screen.


  • Description

    XR HDMI and IR Extender


    Quick Facts

  • Uses a single CAT5e/6 run, reducing cable clutter and simplifying HDMI® signage deployment.
  • Extends uncompressed HD video, audio, and control signals up to 328 feet (100 m)*.
  • Supports IR extension with CEC passthrough. Control source devices at the screen.

  • Further Details

  • Enables flexible screen location without compromising video quality.
  • HDBaseT® based for greater video capacity and 3D support.
  • Provides 10.2 Gbps of HDMI video bandwidth on all channels.
  • Supports 1080p video at 60 Hz and 48-bit pixel rates.
  • No software or driver installation required.
  • HDCP compliant and Blu-ray ready.
  • Includes transmitter, receiver, IR emitter, and IR receiver.
  • Wallmountable for space-saving installation.

  • Put a digital sign where you want it and control AV source equipment at the screen with the XR HDMI and IR Extender.

    Extending over a single CAT5e/6 cable, the transmitter-receiver combo makes it easy to send digital 1080p-quality video and audio plus IR remote control signals up to 328 feet (100 m)*.

    Reduced cabling requirements.
    The XR HDMI and IR Extender transmits uncompressed full HD digital video and audio plus data control signals—all over a single copper cable.

    By using just one CATx run to reach a remote screen, you can get away with using a single, existing Ethernet cabling drop for multimedia distribution. Reach digital signage or monitors without adding—and having to maintain—a jumble of cables and wiring behind the screen.

    You also get simplified control. The extender supports CEC passthrough and source device control via a built-in IR extender function (an IR emitter and IR receiver are included). IR commands received in the vicinity of the display extend back to the source device. This way, a receptionist stationed near a screen, for instance, can use an HDTV's remote controller to change settings on a source device in another room.

    Designed for emerging HDMI technology.
    The extender is ideal for applications requiring greater distance for high-quality video resolutions on HDTV displays or projectors. It supports 340 MHz/3.4 Gbps of HDMI video bandwidth per channel and 10.2 Gbps on all channels.

    What's more, the XR HDMI and IR Extender uses HDBaseT based technology, so it has the capacity to extend both HDMI and control signals. It also supports the resolutions of current and emerging video display devices, such as the latest 3D screens and future HD formats.

    It works with the latest source devices, too. Use it to extend HDMI from a newer consumer electronics device that provides uncompressed-only output. Because it supports HDCP communications, you can also extend content from a Blu-ray player or other protected-content source.

    For high-quality sound, the XR HDMI and IR Extender transmits uncompressed LPCM signals as well as compressed audio, such as DTS-HD and Dolby® TrueHD audio, as part of the HDMI signal.

    * NOTE: Distance depends on the characteristics and quality of the cable and the type of HDMI source and display.


    What's included:
    • Transmitter
    • Receiver
    • (2) power supplies
    • IR emitter
    • IR receiver
    • (4) Wallmount brackets with (8) screws
    • User manual


    Technical Specifications for XR HDMI and IR Extender:

    Distance (Maximum)* 328 ft. (100 m)
    Video Bandwidth HDMI: 340 MHz/3.4 Gbps per channel (10.2 Gbps on all channels)
    CE Approval Yes
    RoHS Yes
    Connectors Transmitter: (1) HDMI F input, (1) 3.5-mm IR emitter jack, (1) RJ-45 output (CATx interconnect);
    Receiver: (1) HDMI F output, (1) 3.5-mm IR receiver jack, (1) RJ-45 output (CATx interconnect)
    Indicators (3) LEDS on both the transmitter and receiver: Power, Link, HDCP
    Power For both the transmitter and receiver: AC input: 115-230 VAC, 50-60 Hz
    Size Both transmitter and receiver units: 1"H x 2.6"W x 3.9"D (2.5 x 6.6 x 4 cm)
    Weight Both transmitter and receiver units: 0.4 lb. (0.2 kg)

    * NOTE: Distance depends on the characteristics and quality of the cable and the type of HDMI source and display.
