Networking > Legacy Technologies

click photo to enlarge

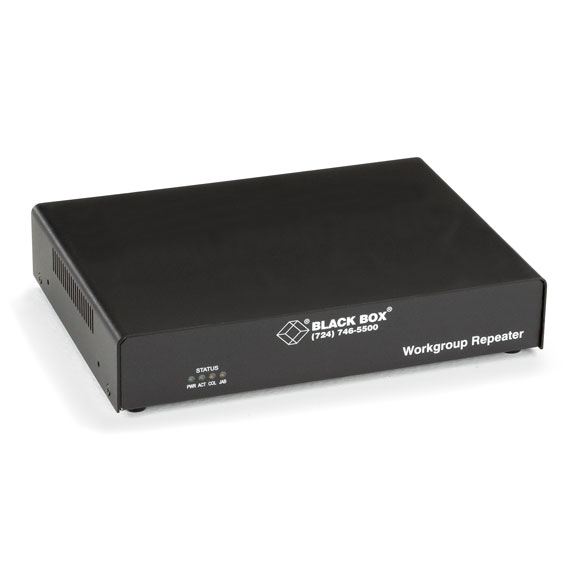

LE4205A-R3

Photo may show similar product

Other views

WorkGroup Repeater, BNC/UTP

Extend your Ethernet LAN and link mismatched media.

LE4205A-R3

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Autosensing power supplies.
  • Compact, dual-port repeaters add extra distance to your LAN—up to 1.2 miles (1.9 km), depending on your cable.
  • Choose from 15 models with a variety of connectors for the perfect solution to link your mismatched media.

  • Description

    WorkGroup Repeater, BNC/UTP


    Quick Facts

  • Autosensing power supplies.
  • Compact, dual-port repeaters add extra distance to your LAN—up to 1.2 miles (1.9 km), depending on your cable.
  • Choose from 15 models with a variety of connectors for the perfect solution to link your mismatched media.

  • Further Details

  • Get full support for 10BASE5, 10BASE2, 10BASE-T, FOIRL, and 10BASE-FL.
  • Autopartitioning adds fault tolerance by isolating troublesome segments from the rest of your LAN.

    Compact WorkGroup Repeaters from Black Box are the perfect solution for adding remote workgroups quickly or extending the range of your LAN. Their slim design makes them easy to install virtually anywhere. In fact, with their autosensing power supplies, they’re compatible with AC sources around the globe.

    Autopartitioning.
    Whenever there’s a failure on one of the connected Ethernet segments, the repeater effectively closes access to the failed link, enabling data traffic on the remaining segment to continue unaffected. When the problem is resolved, the repeater reactivates the connection automatically.

    Special features—built right in.
    Repeaters with BNC connectors feature user-selectable manual termination, so you can attach your network segment directly without a T-connector and a separate terminator. UTP models with RJ-45 connectors automatically detect and correct reversed polarity. And every repeater includes two extra 10BASE-T RJ-45 ports.

    Choose fiber models for extra-long distances.
    The benefit of any repeater is the extra distance it adds to your LAN. But for really long-range links between coax or twisted-pair segments, use our fiber optic repeaters and run cable up to 1.2 miles (2 km). Available with SC or ST connectors.

    These products work with:
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
    • Ceramic Terminated Multimode Fiber Optic Cable, ST–ST (EFN062-CC)
    • ThinNet Cable (NEC® CL2 & CL2P), PVC (LCN300)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for WorkGroup Repeater, BNC/UTP:

    CE Approval — Yes
    Connectors — Fiber Optic: ST or SC;
    ThinNet: BNC for RG58 coax cable;
    10BASE-T: RJ-45;
    Standard Ethernet: DB15 F
    Indicators — Each unit has (3) LEDs (Power, Activity, Collision) plus (2) for Partition (one per segment); repeaters with FO or UTP ports have (1) link LED per FO or UTP connector
    Power — 100–240 VAC, 50–60 Hz, 1 A, 12 watts maximum, internal autosensing power supply
    Size — 1.8"H x 8.4"W x 6.4"D (4.6 x 21.3 x 16.3 cm)
    Weight — 1.8 lb. (0.8 kg) with power module
    These products work with:
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
    • Ceramic Terminated Multimode Fiber Optic Cable, ST–ST (EFN062-CC)
    • ThinNet Cable (NEC® CL2 & CL2P), PVC (LCN300)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for WorkGroup Repeater, BNC/UTP:


    Connect your WorkGroup Repeater, BNC/UTP with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Three year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $36.00

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $71.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    WorkGroup Repeater, BNC/UTP LE4205A-R3 $359.95

    WorkGroup Repeaters, AUI/UTP LE4206A-R3 $359.95

    WorkGroup Repeater, BNC/BNC LE4200A-R3 $421.95

    WorkGroup Repeaters, AUI/AUI LE4202A-R3 $496.95

    WorkGroup Repeaters, AUI/BNC LE4201A-R3 $524.95

    WorkGroup Repeaters, ST LE4204A-R3 $734.95

    WorkGroup Repeater, Fiber/BNC, ST LE4203A-R3 $751.95

    WorkGroup Repeaters, ST LE4208A-R3 $751.95

    WorkGroup Repeaters, SC LE4208A-SC $818.95

    WorkGroup Repeaters, ST/ST LE4207A-R3 $833.95

    WorkGroup Repeaters, SC/SC LE4207A-SC $967.95
