AVU5020A

Photo may show similar product

Other views

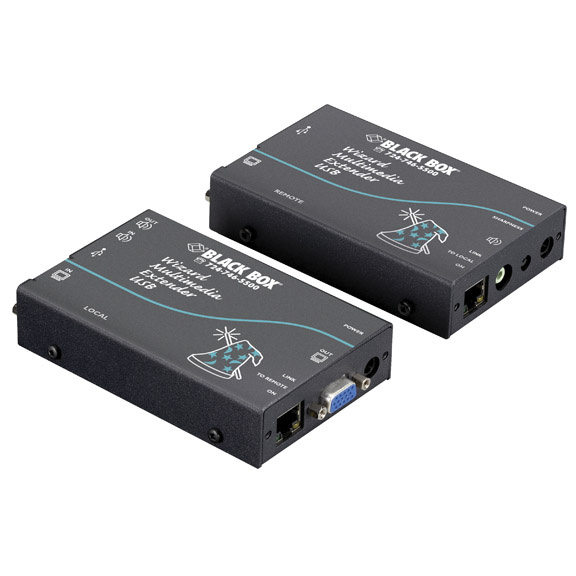

Wizard USB Multimedia Extender

Send audio, video, and USB signals to displays, touch screens, and USB devices over CATx.

AVU5020A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Extends VGA video and audio signals up to 164 feet (50 meters) over ordinary CATx cable.
  • Also supports connections for touch screens, speakers, keyboards, and other USB 2.0 and 1.1 devices.
  • Integrated 4-port USB hub.


  • Description

    Wizard USB Multimedia Extender


    Quick Facts

  • Extends VGA video and audio signals up to 164 feet (50 meters) over ordinary CATx cable.
  • Also supports connections for touch screens, speakers, keyboards, and other USB 2.0 and 1.1 devices.
  • Integrated 4-port USB hub.

  • Further Details

  • Provides ultra sharp, high-resolution video of 1920 x 1200.
  • Use two extenders to extend video from computers with dual monitors to touch screens and interactive kiosks.
  • Fully supports DDC for high-resolution video.
  • Digitally transmits 44.1-kHz CD-quality stereo audio.
  • Operation is fully transparent. Use with all USB devices and all operating systems.
  • Four full-speed USB 2.0 devices can be used simultaneously, disconnected and reconnected at any time without any errors.
  • Video and audio outputs on the local unit enable local control of remote devices.
  • User-adjustable video compensation for fine-tuning image.
  • What's included:
  • Local unit
  • Remote unit
  • In-line power supply
  • Power cord
  • (8) rubber feet
  • VGA cable
  • 3.5-mm to 3.5-mm audio cable
  • USB Type A to Type B cable
  • Safety guide


  • Technical Specifications for Wizard USB Multimedia Extender:

    Approvals CE, RoHS
    Distance and Resolution 164 ft. (50 m) at 1920 x 1200 maximum
    Connectors Local unit (2) HD15 F, (1) USB Type B, (2) 3.5-mm audio, (1) RJ-45, (1) 2.5-mm DC;
    Remote unit: (1) HD15 F, (4) USB Type A, (1) 3.5-mm audio, (1) RJ-45, (1) 2.5-mm DC
    Power 100-240 VAC, 50-60 Hz, autosensing
    Dimensions Each unit: 1.7"H x 4.7"W x 3"D (4.4 x 12 x 7.5 cm)
    Weight Each unit: 1 lb. (0.5 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
