Video & Multimedia > Extenders

click photo to enlarge

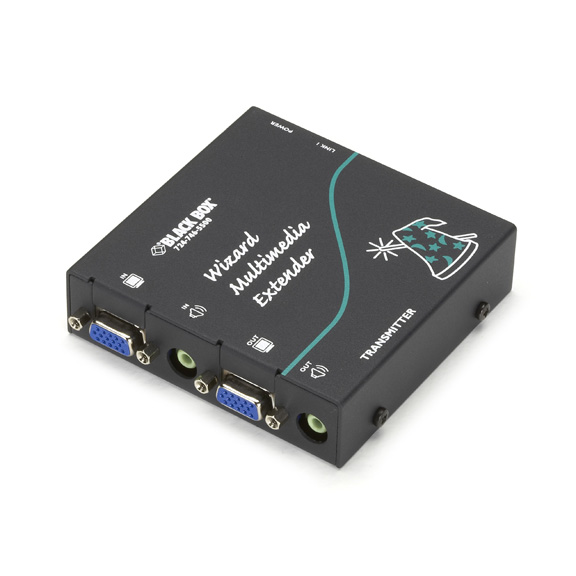

AVU5001A

Photo may show similar product

Other views

Wizard Multimedia Transmitter, Single Video/Stereo Audio

A transmitter for sending audio and video to remote displays over CATx cable.

AVU5001A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Use with a compatible Wizard Multimedia Extender Receiver (AVU5011A* or AVU5111A-R2).
  • Transmits VGA video and stereo audio signals up to 984.2 feet (300 m) over a single CATx cable.

  • Description

    Wizard Multimedia Transmitter, Single Video/Stereo Audio


    Quick Facts

  • Use with a compatible Wizard Multimedia Extender Receiver (AVU5011A* or AVU5111A-R2).
  • Transmits VGA video and stereo audio signals up to 984.2 feet (300 m) over a single CATx cable.

  • Further Details

  • Used with a receiver, supports the connection of two remote display and speaker sets.
  • An ideal choice for digital signage and narrowcasting applications.
  • Plug-and-play operation with independent sharpness and brightness controls.
  • Digitally transmits high-fidelity 16-bit, 44.1-kHz stereo audio.
  • Use its local ports for local screen and speaker connections or for cascading other transmitter units.
  • Advanced spike suppression for electrically noisy environments.
  • Durable steel casing.
  • Mount up to 16 of the units in the optional 3U chassis (AVU5000A).

    * You can also order the AVU5001A and AVU5001A as a complete transmitter-receiver kit (AVU5010A).

    What’s included:
  • Wizard Multimedia Extender Transmitter, Single Video/Stereo Audio
  • Universal power supply
  • 6-ft. (1.2-m) power cord
  • Set of self-adhesive rubber feet
  • CD containing a user’s manual

    To rackmount up to 16 of the transmitters, order:
  • Wizard Multimedia Extender Rackmount Chassis (AVU5000A)
    Then order a plate for every unit you plan to mount:
  • Wizard Multimedia Extender Universal Plate (AVU5002)
    Questions? Contact our FREE Tech Support.

    Other Wizard Multimedia Extender options:
    You can also order the AVU5001A and AVU5011A as a kit (AVU5010A). Plus, we offer a quad transmitter model (AVU5004A) to directly feed four receivers. For a receiver with built-in skew compensation and a CATx daisychain port, order the AVU5111A-R2. It is recommended for CAT5e or higher cable extensions that are longer than 328 feet (100 m). We also recommend it for CAT5e or higher applications in which you need to extend higher resolutions. For assistance setting up a multichannel Wizard Multimedia Extender application, contact our FREE Tech Support.

    Maximum link distance for cascade connections:
    Number of cascade connections (in a branch) / overall length of links for a branch**
    0 / 1000 ft. (305 m)
    1 / 800 ft. (244 m)
    2 / 650 ft. (200 m)
    3 / 600 ft. (183 m)
    ** From the transmitter to farthest receiver.



  • Technical Specifications for Wizard Multimedia Transmitter, Single Video/Stereo Audio:

    Distance and Resolution (Maximum) — 984.2 ft. (300 m) at 1280 x 1024; 656.1 ft. (200 m) at 1600 x 1280
    CE Approval — Yes
    RoHS — Yes
    Connectors — (2) HD15 F, (2) 3.5-mm audio, (1) RJ-45, (1) 2.5-mm DC
    Power — 100–240 VAC, 50–60 Hz, autosensing
    Size — 3.9"H x 3.7"W x 1"D (9.8 x 9.5 x 2.5 cm)
    Weight — 0.9 lb. (0.4 kg)

    To rackmount up to 16 of the transmitters, order:
  • Wizard Multimedia Extender Rackmount Chassis (AVU5000A)
    Then order a plate for every unit you plan to mount:
  • Wizard Multimedia Extender Universal Plate (AVU5002)
    Questions? Contact our FREE Tech Support.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for Wizard Multimedia Transmitter, Single Video/Stereo Audio:

    Product Data Sheets

    Visio Stencils

    • Visio Stencil
      Stencil Drawings


    Connect your Wizard Multimedia Transmitter, Single Video/Stereo Audio with:

    Accessory: AVU5111A-R2

    Wizard Multimedia Receiver with Dual Video/Stereo Audio Ports, CATx Daisychain Port, and Integral Deskew

    Wizard Multimedia Receiver with Dual Video/Stereo Audio Ports, CATx Daisychain Port, and Integral Deskew

    Accessory: AVU5011A

    Wizard Multimedia Receiver with Dual Video/Stereo Audio Ports

    Wizard Multimedia Receiver with Dual Video/Stereo Audio Ports

    Accessory: EYN556MS-0010

    CAT5e Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, 10-ft. (3.0-m)

    CAT5e Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, 10-ft. (3.0-m)

    Accessory: AVU5000A

    Wizard Multimedia Extender Rackmount Chassis

    Wizard Multimedia Extender Rackmount Chassis

    Accessory: AVU5002

    Wizard Multimedia Extender Universal Rackmounting Plate

    Wizard Multimedia Extender Universal Rackmounting Plate
