Video & Multimedia > Extenders

click photo to enlarge

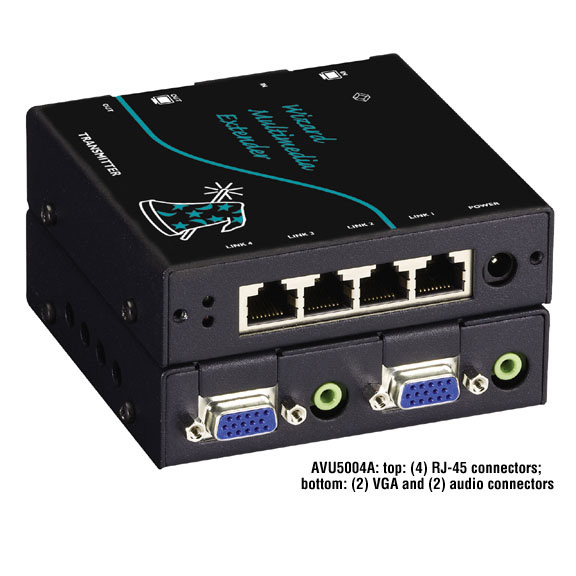

AVU5004A

Photo may show similar product

Other views

Wizard Multimedia Transmitter, Quad Video/Stereo Audio

A four-channel transmitter for extending audio/video channels to remote displays over CATx.

AVU5004A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Use with compatible Wizard Multimedia Extender Receivers (AVU5011A and/or AVU5111A-R2).
  • Transmits four VGA video and stereo audio signals up to 984.2 feet (300 m) over CATx cables.

  • Description

    Wizard Multimedia Transmitter, Quad Video/Stereo Audio


    Quick Facts

  • Use with compatible Wizard Multimedia Extender Receivers (AVU5011A and/or AVU5111A-R2).
  • Transmits four VGA video and stereo audio signals up to 984.2 feet (300 m) over CATx cables.

  • Further Details

  • Each separately available receiver supports the connection of two remote display and speaker sets.
  • An ideal choice for digital signage and narrowcasting applications.
  • Plug-and-play operation with independent sharpness and brightness controls.
  • Digitally transmits high-fidelity 16-bit, 44.1-kHz stereo audio.
  • Use its local port for local screen and speaker connections or for cascading other transmitter units.
  • Advanced spike suppression for electrically noisy environments.
  • Durable steel casing.
  • Mount up to 16 of the units in the optional 3U chassis (AVU5000A).

    What’s included:
  • Wizard Multimedia Extender Transmitter, Quad Video/Stereo Audio
  • Universal power supply
  • 6-ft. (1.2-m) power cord
  • Set of self-adhesive rubber feet
  • CD containing a user’s manual

    To rackmount up to 16 of the transmitters, order:
  • Wizard Multimedia Extender Rackmount Chassis (AVU5000A)
    Then order a plate for every unit you plan to mount:
  • Wizard Multimedia Extender Universal Plate (AVU5002)
    Questions? Contact our FREE Tech Support.

    Other Wizard Multimedia Extender options:
    We offer a single video/stereo audio transmitter model (AVU5001A) to directly feed a single receiver. You can also order the AVU5001A packaged with our dual video/stereo audio receiver (AVU5011A) in a complete extender kit (AVU5010A).

    Pair each CATx port on this quad transmitter with either the dual video/stereo audio receiver (AVU5011A) or our receiver with built-in skew compensation and a CATx daisychain port (AVU5111A-R2). The latter model is recommended for CAT5e or higher cable extensions that are longer than 328 feet (100 m). We also recommend the AVU5111A-R2 for CAT5e or higher applications in which you need to extend higher resolutions. For assistance setting up a multichannel Wizard Multimedia Extender application, contact our FREE Tech Support.

    Maximum link distance for cascade connections:
    Number of cascade connections (in a branch) / overall length of links for a branch*
    0 / 1000 ft. (305 m)
    1 / 800 ft. (244 m)
    2 / 650 ft. (200 m)
    3 / 600 ft. (183 m)
    * From the transmitter to farthest receiver.



  • Technical Specifications for Wizard Multimedia Transmitter, Quad Video/Stereo Audio:

    Distance and Resolution (Maximum) — 984.2 ft. (300 m) at 1280 x 1024; 656.1 ft. (200 m) at 1600 x 1280
    CE Approval — Yes
    RoHS — Yes
    Connectors — (2) HD15 F, (2) 3.5-mm audio, (4) RJ-45, (1) 2.5-mm DC
    Power — 100–240 VAC, 50–60 Hz, autosensing
    Size — 3.9"H x 3.7"W x 1"D (9.8 x 9.5 x 2.5 cm)
    Weight — 0.9 lb. (0.4 kg)

    To rackmount up to 16 of the transmitters, order:
  • Wizard Multimedia Extender Rackmount Chassis (AVU5000A)
    Then order a plate for every unit you plan to mount:
  • Wizard Multimedia Extender Universal Plate (AVU5002)
    Questions? Contact our FREE Tech Support.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
