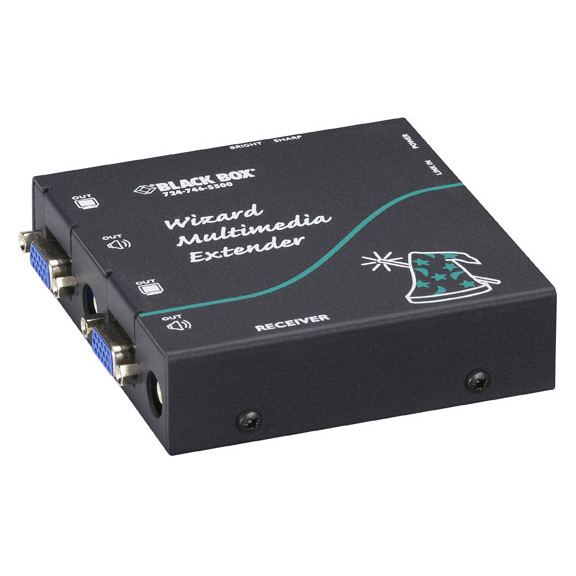

AVU5011A

Photo may show similar product

Other views

Wizard Multimedia Receiver with Dual Video/Stereo Audio Ports

A receiver for making remote screen and speaker connections over CATx cable.

AVU5011A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Use with a compatible Wizard Multimedia Extender Transmitter (AVU5001A* or AVU5004A).
  • System extends VGA video and stereo audio signals up to 984.2 feet (300 m) over a single CATx cable.

  • Description

    Wizard Multimedia Receiver with Dual Video/Stereo Audio Ports


    Quick Facts

  • Use with a compatible Wizard Multimedia Extender Transmitter (AVU5001A* or AVU5004A).
  • System extends VGA video and stereo audio signals up to 984.2 feet (300 m) over a single CATx cable.

  • Further Details

  • Supports the connection of two remote display and speaker sets.
  • An ideal choice for digital signage and narrowcasting applications.
  • Plug-and-play operation with independent sharpness and brightness controls.
  • Digitally transmits high-fidelity 16-bit, 44.1-kHz stereo audio.
  • Advanced spike suppression for electrically noisy environments.
  • Durable steel casing.
  • Mount up to 16 of the units in the optional 3U chassis (AVU5000A).

  • * You can also order this unit packaged with the AVU5001A unit as a complete transmitter-receiver kit (AVU5010A).

    What's included:
  • Wizard Multimedia Extender Receiver, Single Video/Stereo Audio
  • Universal power supply
  • 6-ft. (1.2-m) power cord
  • Set of self-adhesive rubber feet
  • Safety guide

  • To rackmount up to 16 of the receivers, order:
  • Wizard Multimedia Extender Rackmount Chassis (AVU5000A)
  • Then order a plate for every unit you plan to mount:
  • Wizard Multimedia Extender Universal Plate (AVU5002)
  • Questions? Contact our FREE Tech Support.

    Other Wizard Multimedia Extender options:
    You can also order this unit packaged with the AVU5001A unit as a complete transmitter-receiver kit (AVU5010A). Plus, we offer a quad transmitter model (AVU5004A) to directly feed four of these receiver units. In addition to this receiver, we offer a receiver with built-in skew compensation and a CATx daisychain port (AVU5111A-R2). It is recommended for CAT5e or higher cable extensions that are longer than 328 feet (100 m). We also recommend it for CAT5e or higher applications in which you need to extend higher resolutions. For assistance setting up a multichannel Wizard Multimedia Extender application, contact our FREE Tech Support.

    Maximum link distance for cascade connections:
    Number of cascade connections (in a branch) / overall length of links for a branch**
    0 / 1000 ft. (305 m)
    1 / 800 ft. (244 m)
    2 / 650 ft. (200 m)
    3 / 600 ft. (183 m)
    ** From the transmitter to farthest receiver.



    Technical Specifications for Wizard Multimedia Receiver with Dual Video/Stereo Audio Ports:

    Approvals CE, RoHS
    Distance and Resolution (Maximum) 984.2 ft. (300 m) at 1280 x 1024; 656.1 ft. (200 m) at 1600 x 1280
    Connectors (2) HD15 F, (2) 3.5-mm audio, (1) RJ-45, (1) 2.5-mm DC
    Power 100-240 VAC, 50-60 Hz, autosensing
    Dimensions 3.9"H x 3.7"W x 1"D (9.8 x 9.5 x 2.5 cm)
    Weight 0.9 lb. (0.4 kg)


    To rackmount up to 16 of the receivers, order:
  • Wizard Multimedia Extender Rackmount Chassis (AVU5000A)
    Then order a plate for every unit you plan to mount:
  • Wizard Multimedia Extender Universal Plate (AVU5002)
    Questions? Contact our FREE Tech Support.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
