Video & Multimedia > Extenders

click photo to enlarge

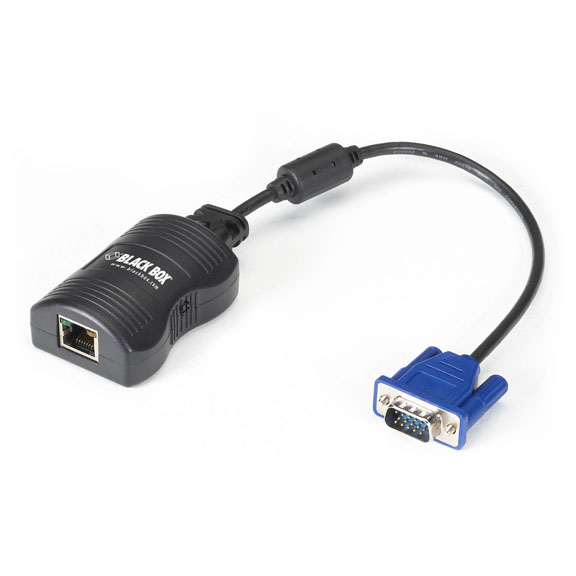

AVU4001A-RX

Photo may show similar product

Other views

Wizard Multimedia Extender LP Receiver

For receiving VGA signals at maximum resolution from a Wizard Multimedia Extender LP Transmitter.

AVU4001A-RX

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Attaches to a screen in a Wizard Multimedia Extender LP 4-Port Transmitter application.
  • Extends maximum resolutions at a maximum distance of 500 feet (152.4 m).
  • No need for external power. Great for video in areas short on outlets.

  • Description

    Wizard Multimedia Extender LP Receiver


    Quick Facts

  • Attaches to a screen in a Wizard Multimedia Extender LP 4-Port Transmitter application.
  • Extends maximum resolutions at a maximum distance of 500 feet (152.4 m).
  • No need for external power. Great for video in areas short on outlets.

  • Further Details

  • Uses ordinary CATx cable—much cheaper than long VGA cable runs.
  • System supports cloning of EDID information from the remote displays.
  • Offers quick, easy setup. OS system independent.
  • High-impact injection moulded design.
  • Very compact. Hides easily out of sight.

  • Simplify multiscreen HD video extension with this CATx-based VGA distribution solution. The Wizard Multimedia Extender LP solution extends analog video as far as 500 feet (152.4 m) using solid-conductor CATx cable*.

    Used with the separately sold Wizard Multimedia Extender LP 4-Port Transmitter (AVU4004A), the receiver featured here enables you to use CATx wiring already installed in your building to extend Full HD 1080p video.

    The Wizard Multimedia Extender LP broadcasts maximum resolutions at maximum distances—going farther than what’s ordinary possible or practical with standard VGA cabling runs.

    Each receiver is line powered from the transmitter end via the CATx cable, so there’s no need for a bulky power supply. This feature makes it ideal for rooms where you’re short on outlets, as well as reducing the number of cords around or behind screens.

    The receiver also features video adjustment to control picture sharpness on your connected video screen. Just use a screwdriver to adjust the sharpness of the video image.

    Be sure to order a receiver for each display in your application.

    The Wizard Multimedia Extender LP is great for:
    • Control centers
    • Corporate signage networks
    • Healthcare and medical imaging
    • Classroom video distribution
    • Broadcast/AV production studios
    • Retail store applications
    • Banking and financial video
    • Military and government deployments

    * NOTE: Distance depends on the characteristics and quality of the cable and the type of VGA source and display. Low-skew cables are recommended for distances over 164 feet (50 m).



    Technical Specifications for Wizard Multimedia Extender LP Receiver:


    Cable Skew Allowed (Maximum) — 25 ns over maximum cable length; low-skew cables are recommended for distances over 164 ft. (50 m)
    Distance (Maximum) — 500 ft. (152.4 m)* at 1920 x 1200 at 60 Hz
    Resolution (Maximum) — 1920 x 1200 at 60 Hz
    RoHS — Yes
    Connectors — Video output: (1) HD15 F (VGA);
    Interconnect: (1) RJ-45 (CATx to transmitter)
    Power — Via the CATx cable from the transmitter
    Size — 0.8"H x 1.8"W x 2.5"D (2.1 x 4.5 x 6.3 cm)

    * NOTE: Distance depends on the characteristics and quality of the cable and the type of VGA source and display. Low-skew cables are recommended for distances over 164 feet (50 m).

    For transmitting video, be sure to order:
    • Wizard Multimedia Extender LP 4-Port Transmitter (AVU4004A)
    The Wizard Multimedia Extender LP is also compatible with our:
    • Wizard Multimedia Extender LP (AVU4001A) point-to-point transmitter/receiver kit
    Questions? Contact our FREE Tech Support.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Wizard Multimedia Extender LP Receiver:


    Connect your Wizard Multimedia Extender LP Receiver with:

    Accessory: AVU4004A

    Wizard Multimedia Extender LP 4-Port Transmitter

    Wizard Multimedia Extender LP 4-Port Transmitter
