Digital Signage & Multimedia > Video Infrastructure

click photo to enlarge

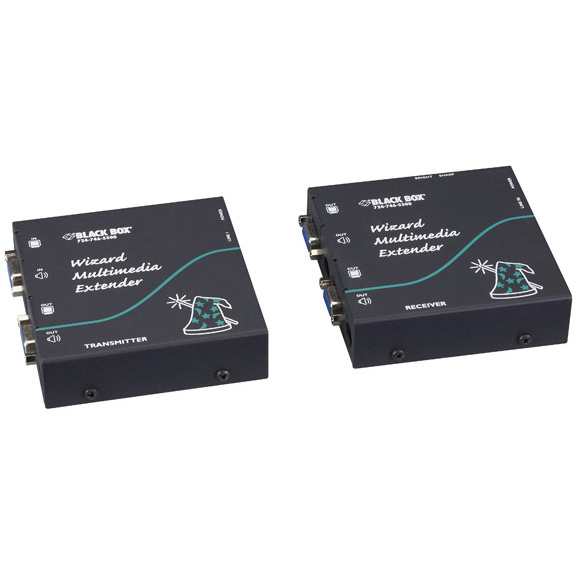

AVU5010A

Photo may show similar product

Other views

Wizard Multimedia Extender Kit

A complete kit for sending audio and video to remote displays over CATx cable.

AVU5010A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Extends VGA video and stereo audio signals up to 984.2 feet (300 m) over a single CATx cable.
  • Supports the connection of two remote display and speaker sets.

  • Description

    Wizard Multimedia Extender Kit


    Quick Facts

  • Extends VGA video and stereo audio signals up to 984.2 feet (300 m) over a single CATx cable.
  • Supports the connection of two remote display and speaker sets.

  • Further Details

  • An ideal choice for digital signage and narrowcasting applications.
  • Plug-and-play operation with independent sharpness and brightness controls.
  • Digitally transmits high-fidelity 16-bit, 44.1-kHz stereo audio.
  • Dual video and audio outputs on the receiver. Duplicates input from the transmitter.
  • Use transmitter’s local ports for local screen and speaker connections or for cascading other transmitter units (additional transmitters and receivers available as options).
  • Advanced spike suppression for electrically noisy environments.
  • Durable steel casings.
  • Up to 16 transmitter or receiver units can be mounted in the optional 3U chassis (AVU5000A).

    What’s included:
  • Wizard Multimedia Extender Transmitter (AVU5001A)
  • Wizard Multimedia Receiver with Dual Video/Stereo Audio Ports (AVU5011A)
  • (2) universal power supplies
  • (2) 6-ft. (1.2-m) power cords
  • (2) sets of self-adhesive rubber feet
  • CD containing a user’s manual

    To rackmount the up to 16 transmitters or receivers, order:
  • Wizard Multimedia Extender Rackmount Chassis (AVU5000A)
    Then order a plate for every unit you plan to mount:
  • Wizard Multimedia Extender Universal Plate (AVU5002)
    Questions? Contact our FREE Tech Support.

    Other Wizard Multimedia Extender options:
    You can also order the kit’s transmitter (AVU5001A) and receiver (AVU5011A) individually, as well as a quad transmitter model (AVU5004A) to directly feed four receivers. In addition, we offer a receiver with built-in skew compensation and a CATx daisychain port (AVU5111A-R2). It is recommended for CAT5e or higher cable extensions that are longer than 328 feet (100 m). We also recommend it for CAT5e or higher applications in which you need to extend higher resolutions. For assistance setting up a multichannel Wizard Multimedia Extender application, contact our FREE Tech Support.

    Maximum link distance for cascade connections:
    Number of cascade connections (in a branch) / overall length of links for a branch**
    0 / 1000 ft. (305 m)
    1 / 800 ft. (244 m)
    2 / 650 ft. (200 m)
    3 / 600 ft. (183 m)
    ** From the transmitter to farthest receiver.



  • Technical Specifications for Wizard Multimedia Extender Kit:

    Distance and Resolution (Maximum) — 984.2 ft. (300 m) at 1280 x 1024; 656.1 ft. (200 m) at 1600 x 1280
    CE Approval — Yes
    RoHS — Yes
    Connectors — Transmitter: (2) HD15 F, (2) 3.5-mm audio, (1) RJ-45, (1) 2.5-mm DC;
    Receiver: (2) HD15 F, (2) 3.5-mm audio, (1) RJ-45, (1) 2.5-mm DC
    Power — 100–240 VAC, 50–60 Hz, autosensing
    Size — Each unit: 3.9"H x 3.7"W x 1"D (9.8 x 9.5 x 2.5 cm)
    Weight — Each unit: 0.9 lb. (0.4 kg)

    To rackmount the up to 16 transmitters or receivers, order:
  • Wizard Multimedia Extender Rackmount Chassis (AVU5000A)
    Then order a plate for every unit you plan to mount:
  • Wizard Multimedia Extender Universal Plate (AVU5002)
    Questions? Contact our FREE Tech Support.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
