Digital Signage Multimedia > Presentation Tools

click photo to enlarge

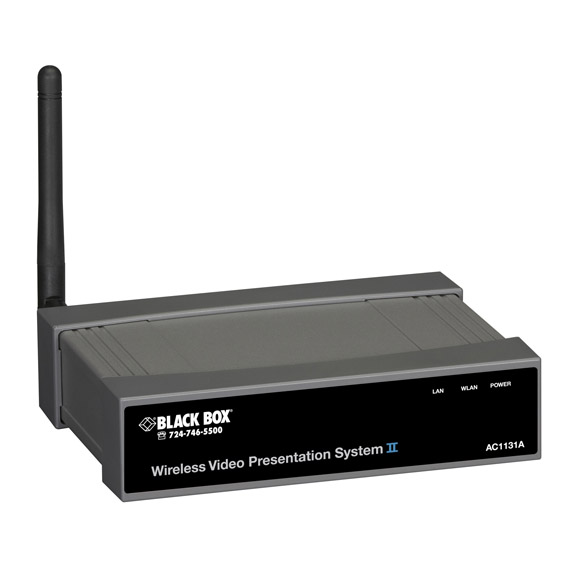

AC1131A

Photo may show similar product

Other views

Wireless Video Presentation System II

Transform a wired projector into a high-end wireless projector—and stream from a PDA.

AC1131A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Transforms your existing “wired” projector into a high-end wireless projector.
  • Features Plug & Show setup, 4-to-1 split screen display, simple conference control, and support for PDA wireless projection.
  • Perfect for conference rooms and college classrooms with VGA projectors.

  • Description

    Wireless Video Presentation System II


    Quick Facts

  • Transforms your existing “wired” projector into a high-end wireless projector.
  • Features Plug & Show setup, 4-to-1 split screen display, simple conference control, and support for PDA wireless projection.
  • Perfect for conference rooms and college classrooms with VGA projectors.

  • Further Details

  • Enables up to 254 meeting participants to wirelessly stream their computer video and audio to a projector from where they sit— up to 300 feet (91.4 m) away*.
  • No more having to swap any cables in and out right at the projector.
  • Supports Windows Vista®, Windows® XP, 2000, and Mobile 5/6.
  • Provides session security login, wireless WEP key, and gatekeeper functions that keep presentation content secure.
  • Receives your laptop or computer screen image wirelessly for output to the LCD projector or other display device with VGA input.
  • Magnifier feature enlarges a small video region to play back with full screen.
  • Media playback supports music and video streaming.
  • Works with Macintosh® version 10.4 and above (projection feature only).
  • Ideal for controlling PowerPoint® and real-time video presentations in large rooms.
  • Equipped with RJ-45 port for wired LAN links.
  • Allows you to browse the Internet while projecting a computer screen when it’s connected to a LAN or a DSL/cable modem.
  • Can be wallmounted (kit is included).


  • This enhanced version of our Wireless VGA Video Presentation System adds PDA support and 4-to-1 split-screen projection functions to the 802.11b/g receiver plus it features a “Plug & Show” token for fast setup by meeting participants.

    As with our standard AC1130A system, the Wireless Video Presentation System II (WVPS II) plugs into any display device with a VGA port, enabling a roomful of laptop users to access a projector or other device from hundreds of feet away.

    The Wireless Video Presentation System II version, however, works with both PC and Mac® computers, supports communications with mobile PDA devices, and has features to enhance meeting productivity.

    Plug & Show
    With the accompanying Plug & Show USB token, wireless presentation becomes easy. Just link your PC/laptop to the Wireless Video Presentation System II through a WLAN or Ethernet connection, plug the token into a USB port, and in seconds, your screen will be wirelessly projected to the projector and, in turn, onto an overhead screen seen by the entire room.

    4-to-1 split-screen projection
    With this 4-to-1 split-screen feature, the Wireless Video Presentation System II projects up to four PC screens through one projector at the same time. This enables you to compare four PC and/or PDA screens side by side.

    PDA wireless projection
    You don’t need a laptop computer to link to the Wireless Video Presentation System II. Simply connect your PDA phone (or other wireless mobile handheld device running Windows® Mobile) to the Wireless Video Presentation System II through Wi-Fi® and start your presentation.

    Conference control
    The Wireless Video Presentation System II supports a conference control function to help you moderate the conference. You can control the order of projection from connected PCs through a Web-based control page, as well as assign quadrants to each presenter during a 4-to-1 split-screen session.

    Magnifier feature
    The Wireless Video Presentation System II has a magnifier feature for a codec-free video clips watching experience. By dragging and dropping the video into the magnifier capture region, you’ll be able to watch the video on a big screen for the best experience.

    Macintosh® wireless projection
    The Wireless Video Presentation System II supports Mac® computers connected to a client and projected wirelessly. By launching the Mac client software that’s stored in the accompanying USB token, the WVPS II enables Mac users to use the wireless presentation feature.

    Works as a wireless access point, too
    The Wireless Video Presentation System II can be used as a wireless access point, so you and a roomful of users can access and stream content from the Internet or a wireless LAN. Or, use its RJ-45 port, to link the receiver to a wired LAN.

    * Under optimum conditions, depending on the environment.

    What’s included:
  • Wireless pesentation adapter
  • USB token
  • User’s manual on flash drive
  • Antenna

  • Technical Specifications for Wireless Video Presentation System II:

    IP Address Configuration — Automatic DHCP or manual (static)
    Output Resolutions — SVGA (800 x 600), XGA (1024 x 768), WXGA (1280 x 768)
    Standards — IEEE 802.11b/g (2.4 GHz), 802.3/3u (10BASE-T/100BASE-TX)
    Video Formats — MPEG1, MPEG2, MPEG4, DivX® 3/4/5, Xvid, WMV 9
    Video Streaming — Up to 30 fps
    Wireless Channels — 11
    Wireless Encryption — WEP 64- or 128-bit
    Wireless Frequency — 2.4 GHz
    Wireless Range (Maximum) — 300 ft. (91.4 m) under optimum conditions
    Wireless Speed (Maximum) — 54 Mbps
    CE Approval — Yes
    Connectors — Network: (1) RJ-45 (10BASE-T/100BASE-TX);
    Video: (1) HD15 F (VGA);
    Audio: (1) 3.8-mm jack;
    Detachable wireless antenna: (1) SMA (-3 dBi)
    Size — 1.1"H x 4.6"W x 5.5"D (2.7 x 11.7 x 14 cm)
    Weight — 1.1 lb. (0.5 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Wireless Video Presentation System II:

    Manuals

    • Wireless Video Presentation System II User's Manual
      Installation and User Guide (6/9/2012)

    Quick Start Guides

    • Wireless Video Presentation System II Quick Start Guide
      Quick Start Guide (6/9/2012)

    Application Diagrams


    Connect your Wireless Video Presentation System II with:
