LWE100A-KIT

Photo may show similar product

Other views

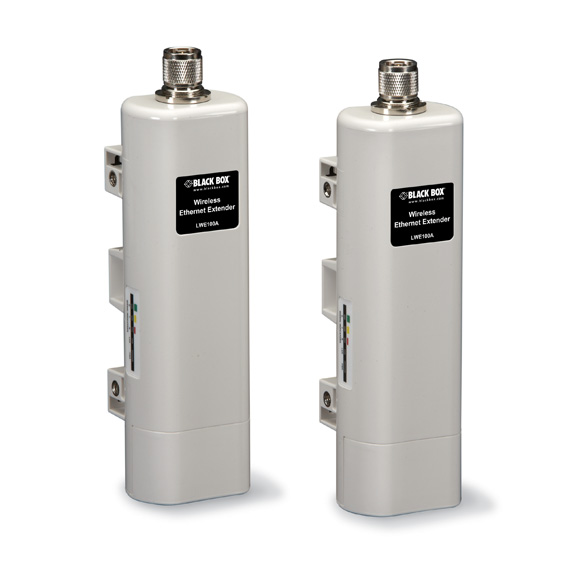

Wireless Point-to-Point Ethernet Extender Kit

Extend Ethernet links between buildings wirelessly and with ease. No laying cable!

LWE100A-KIT

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • For affordable, point-to-point wireless Ethernet extension up to 6.2 miles (10 km).
  • Simple to install and configure—extenders are pre-synchronized to work with each other.
  • Tough waterproof enclosure for outdoor use.

  • Description

    Wireless Point-to-Point Ethernet Extender Kit


    Quick Facts

  • For affordable, point-to-point wireless Ethernet extension up to 6.2 miles (10 km).
  • Simple to install and configure—extenders are pre-synchronized to work with each other.
  • Tough waterproof enclosure for outdoor use.

  • Further Details

  • Features 802.11n wireless for fast throughput—40 Mbps at up to 3.1 miles (5 km).
  • LED indicator simplifies configuration and alignment.
  • Easy to manage through a Web-based interface.
  • Features an 8-dBi internal antenna or can used with an external antenna.
  • Extenders also work as access points or customer premises equipment (CPE) devices. For more information, contact our FREE Tech Support.
  • Powered through the Ethernet cable—no outdoor power outlet needed.
  • Kit includes PoE injectors and pole-mounting rings.
  • 10-/100-Mbps Ethernet port with MDI/MDI-X.

  • The Wireless Point-to-Point Ethernet Extender Kit gives you a quick way to extend an Ethernet link between buildings. Because it's wireless, you avoid the hassle and expense of laying cable.

    You get a 40-Mbps wireless link up to 3 miles away—and that's enough bandwidth to support several workstations—with lower speeds at longer distances of up to about 6 miles (9.6 km).

    The kit comes with two wireless extender units synchronized to work together. Mount each on a building within line of sight of each other. The extenders are waterproof, weatherproof, and compact—about the size of a bottle of water. They blend unobtrusively into building architecture without large, unsightly antennas.

    What's more, the kit's extender units don't require a nearby power outlet because they receive their power through the Ethernet cable via a 12-VDC power injector included with each extender unit.

    The extender units also offer easy setup. An LED indicator shows when the extenders are properly aligned and receiving a strong signal.

    Use the Wireless Point-to-Point Ethernet Extender Kit in any number of wireless extension applications, including last-mile access for broadband networks. Quickly and economically extend your network's reach to areas such as guard stations or utility buildings, or any site where it's not cost effective to run cable for just one or two workstations.

    And, for data security, the extender kit uses 64-/128-152-bit WEP encryption, WPA/WPA2 and pre-shared key WPA-PSK/WPA2-PSK protocols, as well as IEEE standard 802.1X authentication.

    What's included:
    • (2) extender units
    • (2) PoE power injectors with (2) power cords
    • (2) pole-mounting rings
    • Quick-installation guide

    NOTE: Lightning protection is required for safe installation. For more information, contact Tech Support.


    Technical Specifications for Wireless Point-to-Point Ethernet Extender Kit:

    Environmental Operating temperature: -4 to +158° F (-20 to +70° C);
    Storage temperature: -22 to +179° F (-30 to +80° C);
    Humidity: 10-95% noncondensing
    Management Interface Telnet, FTP, SNMP, integral Web server
    Wireless Antennas Internal 8-dBi directional; optional external antenna
    Wireless Frequencies IEEE 802.11b/g ISM and 802.11g/n 20-MHz bands: 2.412-2.462 GHz (U.S. and Canada);
    IEEE 802.11g/n 40-MHz band: 2.422-2.452 GHz (U.S. and Canada)
    Wireless Modulation IEEE 802.11b (DSSS): CCK, DQPSK, DBPSK;
    IEEE 802.11g/n (OFDM/DSSS): QAM-64, QAM-16, QPSK, BPSK
    Wireless Output Power IEEE 802.11b: 27.5 dBm at 11 Mbps;
    IEEE 802.11g: 27.5 dBm at 6 Mbps;
    IEEE 802.11g/n: 27.5 dBm at HT20/HT40 rates
    Wireless Sensitivity IEEE 802.11b: -88 dBm at 11 Mbps;
    IEEE 802.11g: -73 dBm at 6 Mbps;
    IEEE 802.11n: -70 dBm at HT20 rates; -67 dBm at HT40 rates
    CE Approval Yes
    RoHS Yes
    Connectors (1) (1) RJ-45 10-/100-Mbps Ethernet,
    (1) N-Type for optional external antenna
    Indicators (1) Signal-strength LED
    Power Proprietary PoE passive device with 12-VDC output via the Ethernet cable; Input: From the included 100-240-VAC, 50/60-Hz power injector via PoE;
    Consumption: 900 mA
    Size Each unit: 2.4"H x 2.5"W x 9"D (6.1 x 6.4 x 22.8 cm)
    Weight Each unit: 1.1 lb. (0.5 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Wireless Point-to-Point Ethernet Extender Kit:

    Manuals

    • Wireless Point-to-Point Ethernet Extender User Manual
      User Manual for the LWE100A-KIT and LWE100AE-KIT (Version 1)

    Quick Start Guides

    • Wireless Point-to-Point Ethernet Extender Quick Start Guide
      Quick Start Guide for the LWE100A (Version 1)

    Black Box Explains


    Connect your Wireless Point-to-Point Ethernet Extender Kit with:

    Accessory: AL-CAT6JTW

    Outdoor Ethernet PoE Lightning Protector

    Outdoor Ethernet PoE Lightning Protector

    Accessory: HGLN-CAT6JT

    Indoor Ethernet PoE Lightning Protector

    Indoor Ethernet PoE Lightning Protector
