Networking > Switches

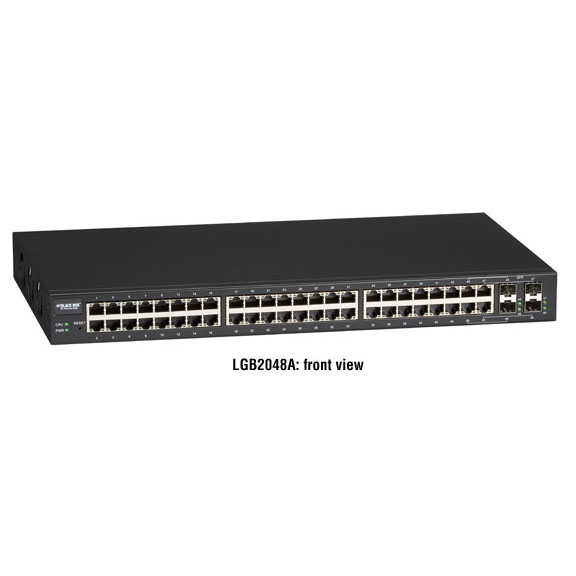

click photo to enlarge

LGB2048A

Photo may show similar product

Other views

Web Smart Gigabit Switch, 48-Port

Manage this high-speed switch through your Web browser.

LGB2048A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Built-in CLI interface enables you to configure and monitor the switch remotely.
  • Features 48 autosensing 10-/100-/1000-Mbps ports plus four slots for SFPs.

  • Description

    Web Smart Gigabit Switch, 10/100/1000 Mbps, 48-Port


    Quick Facts

  • Built-in CLI interface enables you to configure and monitor the switch remotely.
  • Features 48 autosensing 10-/100-/1000-Mbps ports plus four slots for SFPs.

  • Further Details

  • Use any standard Web browser to monitor and control the switch.

  • The Web Smart Switch makes migrating to Gigabit Ethernet easy and affordable.

    Setup is easy. Just use any Web browser to log onto the built-in CLI interface to configure or monitor the switch.

    All 10-/100-/1000-Mbps copper ports are autosensing for speed and auto­negotiating for duplex. The switch also features Auto MDI/MDI-X, which means you never need a crossover cable. Plus, you can populate the SFP slot with a wide range of Gigabit and WDM uplink modules.

    Tagged and port-based VLAN provides precise control over network traffic segmentation and broadcast domains with up to four trunk groups. You also get support for IEEE 802.x flow control for full-duplex mode and collision-based backpressure for half-duplex mode, plus Quality of Service (QoS) with a two-level priority queue.

    SNMP trap management alerts you instantly when something goes wrong. Port mirroring helps to track network errors or abnormal packet transmission.


    Technical Specifications for Web Smart Gigabit Switch, 48-Port:

    Buffer — 768 KB
    MAC Addresses — 8K
    Operating Environment — Temperature: 32 to 104° F (0 to 40°C);
    Humidity: 10 to 90% noncondensing
    Standards — IEEE 802.3, 802.3u, 802.1ab, 802.3z, 802.3x, ANSI/IEEE 802.3 autonegotiation, IEEE 802.1q VLAN
    System Configuration — Web
    CE Approval — Yes
    Connectors — (48) RJ-45, (2) combo ports: RJ-45/SFP
    Power — 100–240 VAC, 50–60 Hz, autosensing
    Size — 1.75"H (1U) x 17.4"W x 9.8"D (4.4 x 44.2 x 24.9 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Connect your Web Smart Gigabit Switch, 48-Port with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $123.60

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $247.19

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    Web Smart Gigabit Switch, 48-Port LGB2048A $1,235.95

    Web Smart Gigabit Switch, 10/100/1000 Mbps, 8-Port LGB2008A-R2 $220.95

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $1,235.95

    Quantity

    Warranty

    Total

    (7 available)
