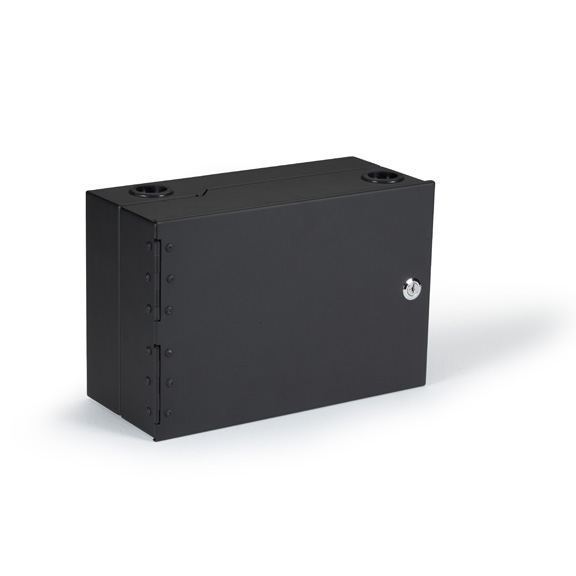

JPM450A

Photo may show similar product

Other views

Wallmount Z-Hinged Fiber Enclosure

Secure and protect fiber connections in limited-space areas.

JPM450A

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Z-design enclosure features two compartments: the front holds fiber assemblies, the rear holds the fiber splices.
  • Access fiber patch cables in the front of the Z-hinged enclosure while protecting fiber splices in the rear.
  • Guaranteed for life!

  • Description

    Wallmount Z-Hinged Fiber Enclosure


    Quick Facts

  • Z-design enclosure features two compartments: the front holds fiber assemblies, the rear holds the fiber splices.
  • Access fiber patch cables in the front of the Z-hinged enclosure while protecting fiber splices in the rear.
  • Guaranteed for life!

  • Further Details

  • Only 8" high and 12" wide, it's ideal areas where you don't have room for a full-size enclosure.
  • Ideal for applications where you do not have access to the rear of the enclosure.
  • Holds two snap-in fiber adapter panels.
  • Two spring-loaded screws hold the two compartments together.
  • To access the rear, release the screws.
  • Locking front door protects terminations from tampering..
  • Route the fiber patch cords into the front via two side-mounted rubber grommets.
  • Route the fiber trunk cable into the rear via two side-mounted rubber grommets.
  • Heavy-duty 16 AWG cold rolled steel, riveted body construction.
  • Features a clamp for anchoring your trunk cable in the rear.
  • Front compartment features two cable management rings.
  • Includes a space for an optional splice tray.
  • Key lock keeps fiber connections secure.

  • This unusual Z-hinged wallmount fiber enclosure is the solution when you need to make fiber interconnects in narrow spaces. At only 8'" high and 12" wide, it'll fit in corners and cubbies that don't give you enough room to swing open doors on standard cabinets. The front compartment of the locking cabinet swings up giving you access to your fiber assemblies. The middle of the cabinet, between the two compartments, holds two standard snap-in fiber adapter panels. To access the splices in the rear of the cabinet, simply release two spring-loaded screws and fold the front panel down.
    The cabinet comes cable organizers, cable ties, and built-in cable rings in the front compartment. The rear compartment features a Kevlar® cable clamp and a space for an optional splice tray. Route cable into each comparment via rubber grommets. The cabinet is built with heavy-duty 16-AWG cold rolled steel. It has a riveted construction. Once mounted and locked, it will keep your fiber connections very secure from unauthorized access.


    Technical Specifications for Wallmount Z-Hinged Fiber Enclosure:

    table cellpadding="0" cellspacing="0" width="525"> Approvals RoHS Construction 16AWG Cold-rolled steel Dimensions 8"H x 12"W x 5"D (30.5 x 20.3 x 12.7 cm) Weight 11 lb. (5 kg)

    This product works with:
    • Standard Adapter Panels (JPM450B, JPM450C, JPM451B, JPM451C, JPM455B, JPM455C)
    • High-Density Adapter Panels (JPM460B, JPM460C, JPM461C, JPM462B, JPM463B, JPM466B, JPM467B, JPM467C)
    • HD Adapter Panels (JPM413A, JPM414A, JPM415A-R2, JPM416A-R2, JPM420A, JPM421A, JPM422A)
    • Mini Fiber Splice Tray (JPM441A)
    • MPO Fiber Optic Cassettes (MTPCS-LC-10G, MTPCS-SC-10G)
    • Blank Adapter Panel (JPM480A)
    Questions? Need to know if your fiber adapter panels will fit in the shelf's slots? Contact our FREE Tech Support or by clicking "Need Help" in the top navigation.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
