WISP24013PTNF

Photo may show similar product

Other views

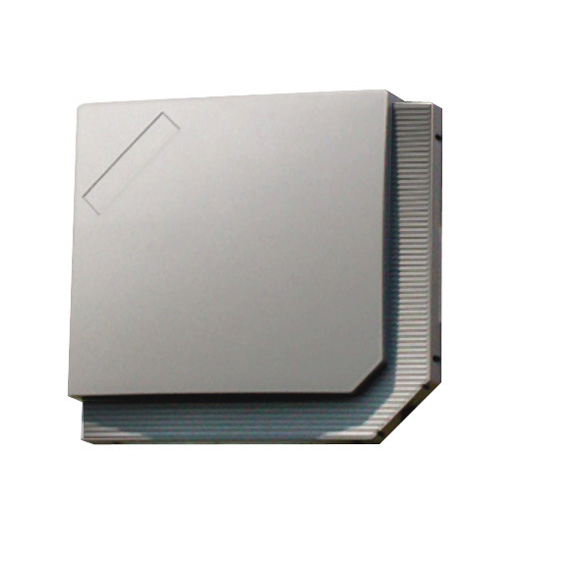

WISP Directional Panel Antenna, 2.4-GHz

Cost-effective antenna designed for indoor/outdoor use.

WISP24013PTNF

2 YEAR DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Provide maximum gain at 2.4 GHz.
  • Rugged design withstands the elements.
  • Provides efficient and stable performance with a VSWR of less than 1.8:1.


  • Further Details

  • Corner-exit RG-58U pigtail enables the panel to be mounted for vertical or horizontal polarity.
  • Heavy-duty outdoor mount is adjustable.
  • Attractive, low-profile UV-stable housing is aesthetically pleasing.
  • Includes mounting hardware.


  • Beamwidth 3 dB: 35°
    Horizontal and vertical
    Frequency 2.3-2.7 GHz
    Front-to-Back Ratio 18 dBi
    Frontal Wind Loading 100 mph: 27.9 lb. (12.7 kg)
    Gain 13 dBi
    Impedance (Nominal) 50 ohms
    Polarization Linear, vertical/horizontal
    Radome Material UV-resistant, stable plastic
    Temperature -40 to +158° F (-40 to 70° C)
    VSWR <1.8:1
    CE Approval Yes
    Connectors 12" RG-58 pigtail with N-Type F
    Power Input (maximum): 20 W
    Size 8.8"H x 8.1"W x 1.6"D (22.4 x 20.6 x 4.1 cm)
    Weight 1.2 lb. (0.5 kg)
    Warranty 2 Years
