Testers & Tools > Testers

click photo to enlarge

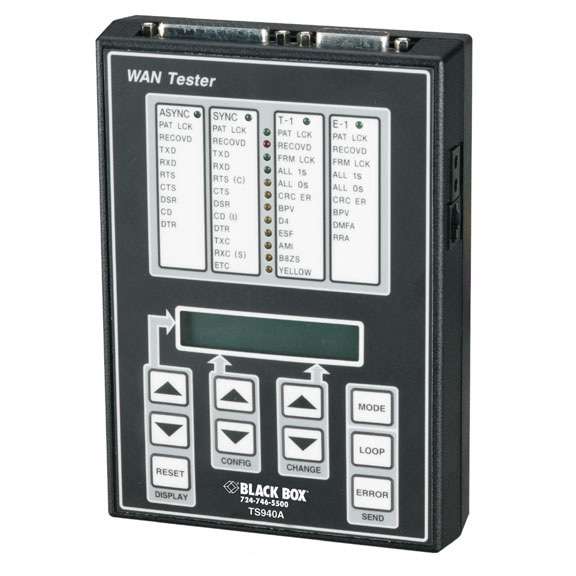

TS940A-R2

Photo may show similar product

Other views

WAN Tester

Test your T1, E1, asynchronous, and synchronous lines!

TS940A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Test T1, Fractional T1, E1, Fractional E1, asynchronous, and synchronous facilities and equipment.
  • Control the WAN tester from the front panel or local/remote VT100 terminal.
  • Comes with V.35, RS-232, RS-422/530, X.21, T1, and E1 interfaces.

  • Description

    WAN Tester


    Quick Facts

  • Test T1, Fractional T1, E1, Fractional E1, asynchronous, and synchronous facilities and equipment.
  • Control the WAN tester from the front panel or local/remote VT100 terminal.
  • Comes with V.35, RS-232, RS-422/530, X.21, T1, and E1 interfaces.

  • Further Details

  • Includes battery and built-in recharger.
  • Speeds from 50 bps to 8.192 Mbps.
  • Displays G.821 performance measurements.

    Need a sophisticated, easy-to-use, bit error rate tester in a compact package? No problem. Test your equipment with the BLACK BOX® WAN Tester. It operates on nickel metal hydride (NiMH) batteries for total portability!

    Four operating modes and a variety of test patterns make the WAN Tester an excellent choice. Control it from the front-panel push buttons or from a local or remote VT100™ terminal via its console port. You can perform all operations by using only 10 push buttons.

    The tester enables you to analyze a wide array of T1, Fractional T1, E1, Fractional E1, async, and sync communication facilities and equipment, such as modems, multiplexors, CSU/DSUs, and more.

    To select your parameters, simply scroll through values stored in its memory. The WAN Tester includes a 2 line by 16 character backlit LCD display and 16 LED indicators that show selected mode, test and operating parameters, and test data.

  • Technical Specifications for WAN Tester:

    Interface — Async/sync: RS-232, RS-422, RS-530, V.35;
    Sync mode also tests X.21 interface;
    T1: DS-1 Bipolar, AMI/B8ZS;
    E1: G.703, G.704, HDB3 coding
    Power — (8) NiMH batteries or via wallmounted power pack (90–130 VAC, 57–63 Hz, 6 W)
    Size — 5"H x 7"W x 2"D (12.7 x 17.8 x 5.1 cm)
    Weight — 1 lb. (0.5 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for WAN Tester:

    Product Data Sheets


    Connect your WAN Tester with:

    Accessory: TS943

    WAN Tester RJ-11 to DB9 Console Cable, 5-ft. (1.5-m)

    WAN Tester Console Cable, RJ-11 to DB9, 5-ft. (1.5-m)

    Accessory: TS941

    WAN Tester DB25 to M/34 Cable, 6-ft. (1.8-m)

    WAN Tester Cable, DB25 Male to M/34 Male Cable, 6-ft. (1.8-m)

    Accessory: TS942

    WAN Tester Dual Bantam to RJ-48 Cable, 6-ft. (1.8-m)

    WAN Tester Dual Bantam to RJ-48 Cable, 6-ft. (1.8-m)
