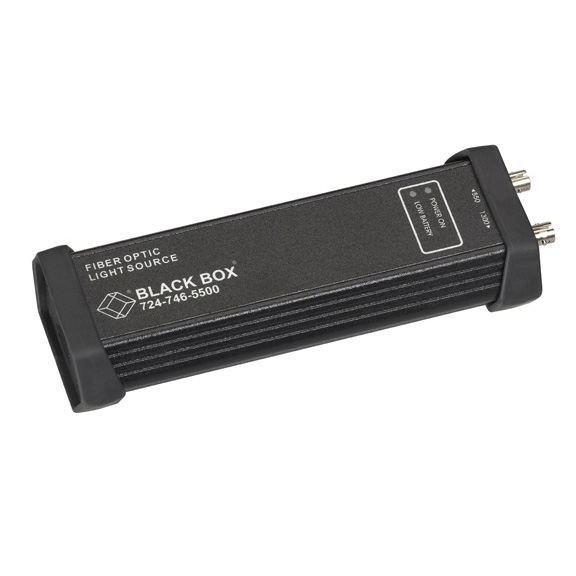

TS510A-R2

Photo may show similar product

Other views

Visible Laser Light Source

Easily identify light leaks in fiber optic cable.

TS510A-R2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Isolates light leaks or breaks in single- or multimode fiber optic cable.
  • Identifies microbends, macrobends, poor splices, and cracked connectors.


  • Description

    Visible Laser Light Source


    Quick Facts

  • Isolates light leaks or breaks in single- or multimode fiber optic cable.
  • Identifies microbends, macrobends, poor splices, and cracked connectors.

  • Further Details

  • Standard ST® connector.
  • Rugged aluminum enclosure.
  • Up to 14 hours of operation on one 9-volt alkaline battery. An indicator shows when power is running low.
  • Features a 650-nm wavelength and 3-Hz modulation.
  • Single-mode operation.

  • Uh-oh. The data sent over your fiber network wasn't received in its entirety. Your first guess is that there's a leak or break, but the trouble might be something else, too. Determine the problem quickly and easily with the Visible Laser Light Source.

    The Visible Laser Light Source enables you to isolate light leaks or breaks in both single-mode and multimode cable. What's more, it also identifies microbends, macrobends, poor splices, and cracked connectors.

    Built for heavy-duty use, the Visible Laser Light Source features a rugged aluminum enclosure. And with just one 9-volt alkaline battery, it can operate for up to 14 hours. When power's running low and it's time to replace the battery, an LED indicator prompts you to make the change.

    A built-in ST connector enables you to jack in the Visible Laser Light Source to your fiber optic network. Operating in single-mode, it features a 650-nm wavelength and 3-Hz modulation. Use it to troubleshoot fiber optic networks in temperatures up to 122° F (50° C).

    The next time your fiber network having a problem, diagnose it fast with the Visible Laser Light Source.


    Technical Specifications for Visible Laser Light Source:

    Battery Life 14 hours
    Environmental Operating temperature: 32 to 122° F (0 to 50° C);
    Storage temperature: 14 to 154° F (-10 to +68° C);
    Humidity: 10 to 90% noncondensing
    Fiber Size 9/125 µm–1000 um
    Pmin -5
    Wavelength 650 nm
    Connectors (1) ST
    Power (1) 9-V alkaline battery
    Size 6.75"H x 2.25"W x 1.5"D (17.1 x 5.7 x 3.8 cm)
    Weight 0.6 lb. (0.3 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
