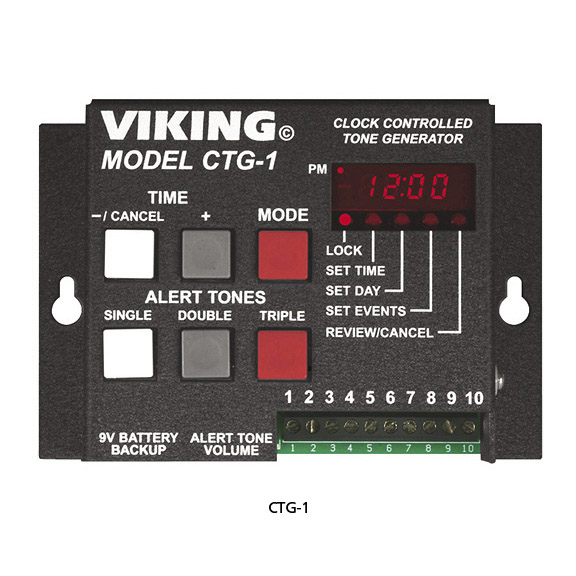

Viking Clock-Controlled Tone Generator

Add time-controlled alert and emergency tones to your paging system.

CTG-1


90 DAYS Warranty

Product Highlights

  • Enhance your paging system’s functionality with this clock-controlled tone generator.
  • Provides accurately timed alert tones or buzzer sounds.
  • Can be programmed to output single, double, or triple alert tones or buzzer sounds with up to 128 events in a 24-hour period.

  • Description

    Viking Clock-Controlled Tone Generator


    Quick Facts

  • Enhance your paging system’s functionality with this clock-controlled tone generator.
  • Provides accurately timed alert tones or buzzer sounds.
  • Can be programmed to output single, double, or triple alert tones or buzzer sounds with up to 128 events in a 24-hour period.

  • Further Details

  • Each day of the week can be programmed, and alert tones can be turned off on specific days (such as weekends).
  • Includes three contact closure inputs for triggering an emergency siren, evacuation signal, or a doorbell sound.
  • Accurate 24-hour digital clock.
  • Battery backup for maintaining clock time.
  • Battery-backup charging circuit for 9-volt batteries.


  • Technical Specifications for Viking Clock-Controlled Tone Generator:

    Audio Output — 600 ohms with adjustable volume;
    Maximum level: 0.4 dBm/1.05 Vrms across 600-ohm load
    Battery Backup — (1) 9-V alkaline or nickel cadmium rechargeable battery (not included); maintains clock time for more than 8 hours
    Operating Environment — Temperature: 32 to 90º F (0 to 32º C);
    Humidity: 5 to 95%, noncondensing
    Relay Output — DPDT-rated 125 VAC, 30 W (resistive load)
    Connectors — (1) 10-screw terminal block
    Power — 120 VAC, 60 Hz, external
    Size — 1.8"H x 5.3"W x 3.6"D (4.6 x 13.5 x 9.1 cm)
    Weight — 2 lb. (0.9 kg)
    Warranty — 90 days


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
