Digital Signage & Multimedia > Video Infrastructure

click photo to enlarge

AC328A-R4

Photo may show similar product

Other views

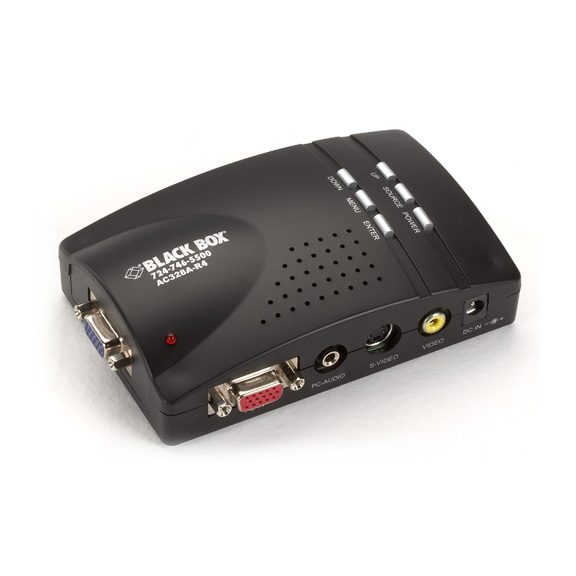

Video to VGA Portable

Get S-Video and Composite video on your VGA monitor today!

AC328A-R4

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Enables you to display video from any Composite or S-Video source on any VGA monitor.
  • Equipped with Composite, S-Video, and VGA (PC passthrough) inputs.
  • Now supports 1920 x 1080 resolution output for clearer monitor images.

  • Description

    Video to VGA Portable


    Quick Facts

  • Enables you to display video from any Composite or S-Video source on any VGA monitor.
  • Equipped with Composite, S-Video, and VGA (PC passthrough) inputs.
  • Now supports 1920 x 1080 resolution output for clearer monitor images.

  • Further Details

  • Control using pocket-size remote control or on the unit itself.
  • No software required. Very simple to cable and configure.
  • Great for repurposing old, unused VGA monitors for video equipment input.
  • Works with video standards worldwide. Input supports 50- to 60-Hz video frame detection (NTSC/PAL/SECAM).
  • Adustable deinterlaced output mode. Features 3D motion-adaptive interfield deinterlacing for higher-quality video.
  • Supports 3:2 pull-down conversion (film mode) and 2:2 pull-down (graphic mode).
  • Switchable between inputs to select your desired video source output.
  • Compact design. Fits easily on the desktop.

  • The Video to VGA Portable from Black Box gives you video input capabilities on your VGA monitor in a compact, easy-to-use package.

    Composite with S-Video inputs (as well as VGA passthrough) give this converter the flexibility to work with any VESA VGA-compatible monitor. It’s just what you need to put that dusty, unused PC monitor to good use again.

    Plug a DVD player, camcorder, or any other video device into this converter and connect it to the VGA monitor—it’s that easy! No software is required for installation. You can set up the converter about in 30 seconds. Motion-adaptive interfield deinterlacing results in crisp, clear video output when you’re done.

    A tiny, full-function remote control enables remote operation from where you sit, and push-button and remote control options enable you to set and save settings. Simply access an on-screen menu to control brightness, contrast, color, hue, and sharpness, and to select picture mode, resolution, and frequency. The unit also autosaves the last input source when you turn off the power.

    The Video to VGA Portable also features an on-screen display with English, German, Italian, Spanish, French, and Dutch, while supporting NTSC/PAL/SECAM standards for use around the world.



    Technical Specifications for Video to VGA Portable:

    Resolution (Maximum) — 1920 x 1080
    CE Approval — No
    RoHS — Yes
    Connectors — (2) HD15 (VGA) in/out); (1) Composite (RCA) in; (1) 4-pin mini DIN (S-Video) in; (1) 3.5-mm stereo audio in; (2) RCA stereo audio in; (1) 3.5-mm stereo audio out
    Power — 100–120 VAC, 60 or 75 Hz, 1 amp;
    Output: 6 VDC 800 mA
    Size — 1.2"H x 2.2"W x 3.7"D (3 x 5.6 x 9.4 cm)
    Weight — 0.3 lb. (0.1 kg)

    What’s included:
    • Video converter
    • Remote control with battery
    • 1-ft. VGA cable (male/male)
    • AC power adapter

    This product works with:
    • Premium VGA Video Extension Cable (EVNPS05)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Video to VGA Portable:


    Connect your Video to VGA Portable with:

    Accessory: EVNPS05-0003-FF

    Premium VGA Video Cable, PVC, 3-ft. (0.9-m)

    Premium VGA Video Extension Cable, Straight Hoods, Female/Female, 3-ft. (0.9-m)
