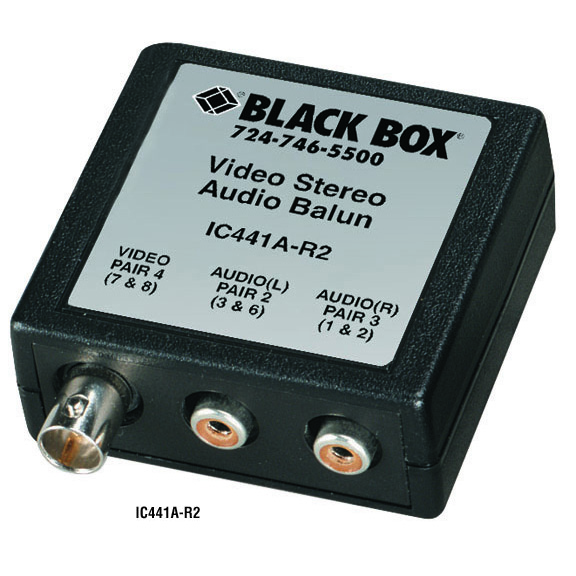

IC441A-R2

Photo may show similar product

Other views

Video/Stereo Audio Balun

Transmit Composite baseband video and audio signals across CAT3 or higher UTP cable.

IC441A-R2

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • For color CAT5 extensions, the Video/Stereo Audio Balun supports distances up to 2200 feet (670.6 m).
  • Great for classrooms, home audio/video systems, podium presentations, video kiosks, or any other application where you need to extend both video and audio signals economically.
  • Guaranteed for life!


  • Further Details

  • By using the UTP cable already installed in your building, you'll eliminate the expense of running up to four coax cables.
  • Enables convenient connections to a site's structured cabling via a modular wall jack in a work area.
  • Can also be used with the Video CCTV–A/V Hub (IC445A).

  • Use a pair of these baluns to transmit Composite baseband video and audio signals across CAT3 or higher UTP cable. The balun features one RJ-45 connector, one BNC connector, and two RCA connectors, and converts the baseband NTSC, PAL, or SECAM signal from 75-ohm coax video to UTP and converts 600-ohm RCA audio signals to UTP.

    Bandwidth Video: DC to 8 MHz;
    Audio: 20 Hz to 50 kHz
    Cable Required Between baluns: CAT3 or higher UTP, 24 AWG or lower
    Distance (Maximum) Over CAT3: 1200 ft. (365.8 m) for color video, 1500 ft. (457.2 m) for black-and-white video;
    Over CAT5: 2200 ft. (670.6 m) for color video, 2500 ft. (762 m) for black-and-white video
    Connectors (1) RJ-45 F, (1) BNC F, and (2) RCA F
    Power From the interface
    Size 2.3"H x 2.4"W x 1"D (5.8 x 6.1 x 2.5 cm)
    NOTE: Must be used in pairs.

    This product also works with:
  • Video CCTV–A/V Hub (IC445A)
  • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN556MS, EYN550MS)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.
