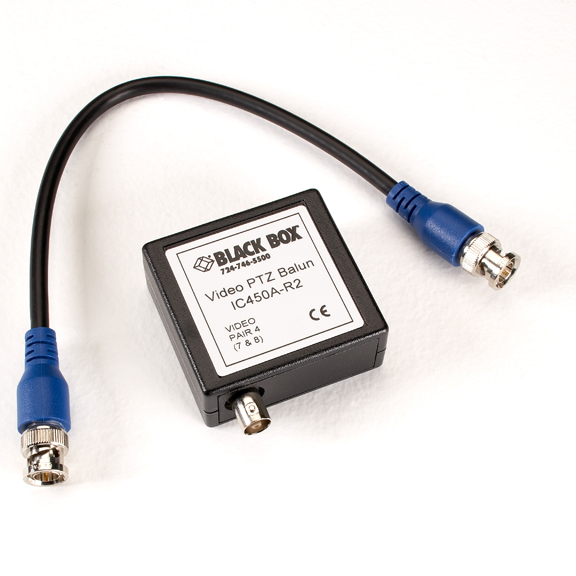

Video PTZ Balun

This balun puts CCTV video and PTZ control signals on UTP!

IC450A-R2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Save money! Transmit CCTV video and PTZ signals over a single inexpensive, easy-to-handle UTP cable instead of costly, bulky coax.
  • Ideal for campus and high-rise installations! Send color images up to 2200 feet (670.6 m) over Category 5 cable. Send black-and-white video up to 2500 feet (762 m)!
  • Guaranteed for life!


  • Description

    Video PTZ Balun


    Quick Facts

  • Save money! Transmit CCTV video and PTZ signals over a single inexpensive, easy-to-handle UTP cable instead of costly, bulky coax.
  • Ideal for campus and high-rise installations! Send color images up to 2200 feet (670.6 m) over Category 5 cable. Send black-and-white video up to 2500 feet (762 m)!
  • Guaranteed for life!

  • Further Details

  • Includes 10" coax lead for easier installation.
  • Works with most popular digital coax PTZ control systems.
  • Compact design. The convenient VELCRO mounting strip (included) enables simpler, neater installation.
  • Quicker moves, adds, and changes means less downtime for your system.
  • Images remain steady while system is idle, giving you reliable, accurate video.
  • Integrate CCTV security and surveillance equipment into your structured cabling system.

    Coax is expensive. Coax is hard to handle. Coax is bulky. Unfortunately you have to use coax to transmit closed-circuit television (CCTV) and pan, tilt, zoom (PTZ) signals—but not with the BLACK BOX® Video PTZ Balun.

    Eliminating coax cable in favor of unshielded twisted pair (UTP) requires CCTV baluns. But traditional CCTV baluns can't support certain CCTV systems with cameras that can be panned, tilted, or zoomed via remote control. These systems combine video and PTZ signals over a single coax cable, and the traditional baluns cannot handle the complex signals.

    That's where the Video PTZ Balun comes in. A pair of these baluns enables you to transmit CCTV video and "up-the-coax" PTZ control signals over a single, flexible UTP cable! The cost savings and convenience offered by Category 5 and Category 3 cable are clearly superior when compared to coax.

    The PTZ Balun is ideal for campus and high-rise installations. You can use Category 5 cable to transmit color images up to 2200 feet (670.6 m). Or send black-and-white video up to 2250 feet (762 m)! Picture quality (contrast, resolution, etc.) is maintained even at the maximum distance. You also get steady, reliable images when the system is idle.

    Quicker moves, adds, and changes mean less downtime for your surveillance system—and that means greater security. The VELCRO® mounting strip and included 10" coax lead enable simpler, more versatile installation. And because UTP is neater and more flexible than coax, your system is easier to manage and maintain.

    Use a pair of Video PTZ Baluns to integrate CCTV security and surveillance equipment into your structured cabling system. These baluns have been tested with some of the most popular digital coax PTZ control systems for quality assurance. The only thing you have to lose is bulky, expensive coax cable.

    This product includes:
  • (1) 10-inch BNC–BNC coax cable.

  • NOTE: Video PTZ Baluns must be used in pairs.

    This product works with:
    • CAT5 100-MHz Solid-Conductor Bulk Cable, 2-Pair (EYN717A), 4-Pair (EYN840A)
    Questions? Contact our FREE Tech Support.


    Technical Specifications for Video PTZ Balun:

    Bandwidth Video: DC to 8 MHz
    Cable Requirements UTP: Solid copper, 24 gauge or lower; Impedance: 100 ohms @ 1 MHz;
    Maximum capacitance: 20 pF/ft.;
    Attenuation: 6.6 dB/1000 ft. @ 1 MHz;
    BNC coax: Impedance: 75 ohms @ 1 MHz (RG59/U); Maximum of 25 ft. (7.6 m) of coax allowed per end-to-end link
    Common Mode Rejection Greater than 40 dB @ 8 MHz
    Impedance Input: 75 ohms (BNC); Output: 100 ohms (RJ-45)
    Distance (Maximum) Color: Category 3 UTP: 1200 ft. (365.8 m); Category 5 UTP: 2200 ft. (670.6 m);
    Black-and-white: Category 3 UTP: 1500 ft. (457.2 m); Category 5 UTP: 2500 ft. (762 m)
    Insertion Loss Less than 2 dB per pair over the frequency range from DC to 8 MHz
    Interfaces Supported NTSC, PAL, SECAM, Coaxitron™
    Pin Configuration RJ-45: Pins 7 & 8, reverse polarity sensitive
    Required Equipment CCTV cameras and PTZ controllers supporting (1) video and (1) PTZ signal over the same coax cable
    Return Loss Greater than 15 dB over the frequency range from DC to 8 MHz
    Systems Supported Pelco™ Coaxitron, Vicon™ Vicoax, Videoalarm™ Coaxlynx™, and other digital coax PTZ control systems
    Transmission Transparent to the user
    CE Approval Yes
    Connectors (1) BNC F, (1) RJ-45, (1) 10" coax lead
    Size 2.4"H x 2.3"W x 1"D (6.1 x 5.8 x 2.5 cm)
    Weight 0.2 lb. (0.1 kg)
    NOTE: Video PTZ Baluns must be used in pairs.

    This product works with:
    • CAT5 100-MHz Solid-Conductor Bulk Cable, 2-Pair (EYN717A), 4-Pair (EYN840A)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
