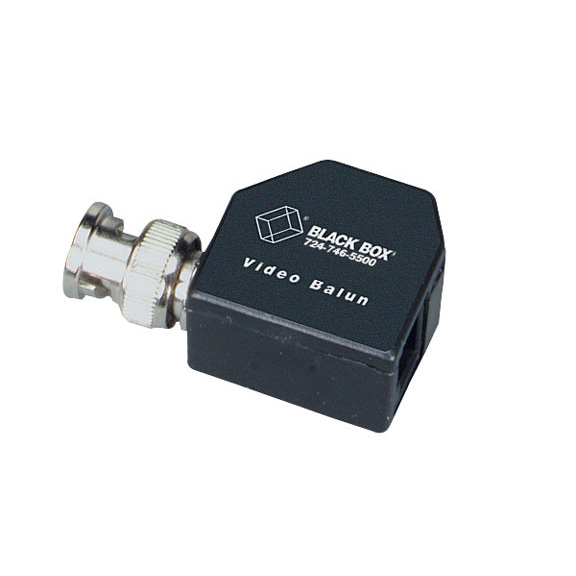

Video-Only Balun

Run video over inexpensive twisted-pair cable with this BNC balun.

IC440A

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Eliminates the need to use coax cable for extending Composite video.
  • Extend color video up to 2200 feet over CAT5 cable.
  • Use a pair of these baluns to convert a single Composite baseband video signal from 75-ohm coax cable to UTP via an RJ-45 connection.
  • Guaranteed for life!


  • Description

    Video-Only Balun


    Quick Facts

  • Eliminates the need to use coax cable for extending Composite video.
  • Extend color video up to 2200 feet over CAT5 cable.
  • Use a pair of these baluns to convert a single Composite baseband video signal from 75-ohm coax cable to UTP via an RJ-45 connection.
  • Guaranteed for life!

  • Further Details

  • Composite baseband signals converted include NTSC, PAL, and SECAM.
  • Use UTP cabling that may already be installed in your building to connect your baseband audio equipment.
  • Features one RJ-45 connector and one BNC connector.
  • Compact design.


  • Technical Specifications for Video-Only Balun:

    Cable Requirements — CAT3 or higher UTP: Solid copper, 24 AWG or lower
    Distance (Maximum) — CAT5 UTP: Color: 2200 ft. (670.5 m);
    Black-and-white: 2500 ft. (762 m)
    Systems Supported — NTSC, PAL, SECAM
    CE Approval — Yes
    Connectors — (1) BNC M, (1) RJ-45
    Power — From the interface
    Size — 1.8"H x 0.8"W x 1"D (4.6 x 2 x 2.5 cm)
    NOTE: All baluns must be used in pairs.

    This product works with:
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN556MS, EYN737MS)
    • Video CCTV–A/V Hub (IC445A)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
