Digital Signage & Multimedia > Video Infrastructure

click photo to enlarge

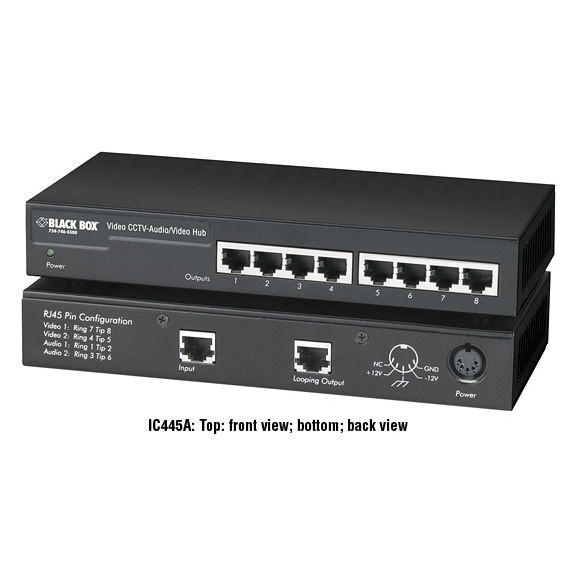

IC445A

Photo may show similar product

Other views

Video CCTV–A/V Hub

Run multiple combinations of audio/video signals.

IC445A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Run 1 S-Video signal or 2 baseband Composite video and 2 audio signals up to 2500 feet (762 m) to 8 locations over affordable CAT5 cable.


    • Description

    Video CCTV–A/V Hub


    Quick Facts

  • Run 1 S-Video signal or 2 baseband Composite video and 2 audio signals up to 2500 feet (762 m) to 8 locations over affordable CAT5 cable.

    • Further Details

  • Provides a looping output for easy daisychaining of units.
  • Use it with DVDs, VCRs, audio/video matrix switches, CCTV cameras and monitors, and other analog baseband audio/video equipment.
  • Supports NTSC and PAL systems.
  • Integrates seamlessly with a number of our video/audio baluns (see Buying Tips below), eliminating the need to run expensive coax or audio cable between the audio/video source and destination devices.
  • For one-to-many point-to-point configurations. Video and audio pairs are independent of each other, so it’s not necessary to use all in one application, or for all signals to be transmitted in the same direction.
  • Ideal for CCTV security and surveillance uses, classroom audio/video instruction, corporate audio/video presentations, and trade show demonstration systems.
  • Standard modular RJ-45 connections for quicker moves, adds, and changes.


    • Technical Specifications for Video CCTV–A/V Hub:

    Bandwidth (3 dB) — Video: DC to 8 MHz;
    Audio: 50 Hz to 16 kHz
    Cable Requirements — Between hub and baluns: CAT3 or higher solid UTP with 24 AWG or lower
    Distance (Maximum) — Over quality CAT5 cable, end-to-end: Composite video: Black-and-white: 2500 ft. (762 m), Color: 2200 ft. (671 m);
    S-Video: 1000 ft. (305 m)
    CE Approval — Yes
    Connectors — (10) RJ-45, (1) 5-pin DIN F (power inlet)
    Power — Input: 100–250 VAC, 50–60 Hz, autosensing, up to 700 mA;
    Output: +5 VDC at up to 4 A; +12 VDC at up to 1 A; -12 VDC at up to 0.6 A;
    Consumption: 5 watts maximum
    Size — 1.3"H x 8.5"W x 4"D (3.3 x 21.6 x 10.2 cm)
    Weight — Hub chassis: 1 lb. (0.5 kg);
    Power supply: 1.5 lb. (0.7 kg)
    This product works with:
  • Dual Audio/Video Balun (IC446A)
  • Video Only Balun (IC440A)
  • Video/Stereo Audio Balun (IC441A-R2)
  • S-Video Balun (IC447A)
  • S-Video with Dual Audio Balun (IC449A)
  • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
    • Questions? Contact our FREE Tech Support.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Video CCTV–A/V Hub:


    Connect your Video CCTV–A/V Hub with:
