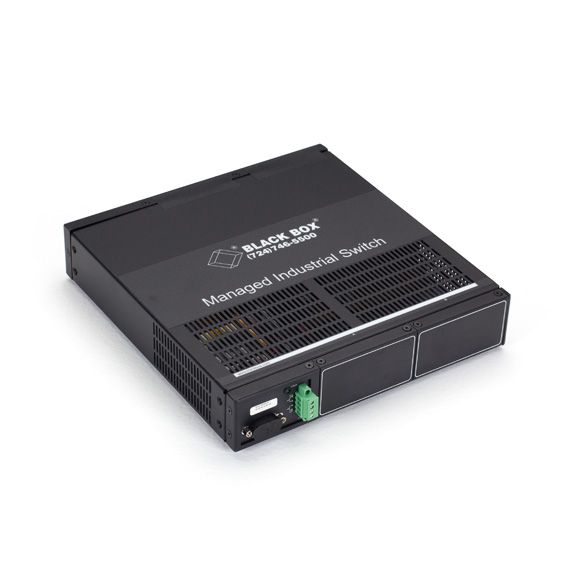

LEV2525A-CHASSIS

Photo may show similar product

Other views

Vertical-Mount Managed Fiber Switch Chassis, 110–240 VAC

When your network isn't typical, you need more than a typical switch.

LEV2525A-CHASSIS

Extended Double Diamond™ Warranty Available
(3 Year)

Product Highlights

  • More than 20 modular port options enable almost unlimited configuration flexibility.
  • Space-saving vertical wallmount.
  • Outfit the switch with copper-only, fiber-only, or mixed-media modules.

  • Description

    Vertical-Mount Managed Fiber Switch Chassis, 110–240 VAC


    Quick Facts

  • More than 20 modular port options enable almost unlimited configuration flexibility.
  • Space-saving vertical wallmount.
  • Outfit the switch with copper-only, fiber-only, or mixed-media modules.

  • Further Details

  • Supports up to a total of 16 ports.
  • RJ-45 ports feature Auto MDI/MDI-X.
  • Fiber modules have ranges from 2 to 70 kilometers (1.2 to 43.5 mi.)!
  • GBIC Transceiver Modules uplink to Gigabit Ethernet.
  • Ideal for use in industrial settings.
  • Robust management features.

  • Engineered to mount vertically against the wall, this rugged switch offers numerous port options for almost unlimited configuration flexibility.

    You're not the type for cookie-cutter solutions. When given choices of only A, B, or C, you want D through Z just to explore all your networking options.

    At Black Box, we know how you feel— and we've done something about it. Our Vertical-Mount Managed Fiber Switch is the switch you've always wanted, a variety of 20 modular port options that enable almost unlimited configuration flexibility.

    Plus, the switch withstands an extraordinary temperature range and is engineered to mount vertically against the wall, making it ideal for industrial environments.

    The Vertical-Mount Managed Fiber Switch is a great fit in transportation and traffic control systems, utilities, and factory environments, as well as video surveillance systems with segments requiring Gigabit backbone connections.

    Unleash your inner engineer.
    The Vertical-Mount Managed Fiber Switch is available in an autosensing AC version and three DC-powered versions. Each chassis features an A slot and a B slot that can be outfitted with Multiport Media Modules, Gigabit Slot Modules, or User-Selectable GBIC Transceiver Modules—all this enables you to customize the switch to your network's specifications.

    Multiport Media Modules come in three varieties: Copper Only, Fiber Only, and Mixed Media. You can connect Copper Only and Mixed Media modules with RJ-45 ports to Ethernet or Fast Ethernet.

    Fiber Only modules feature two, four, six, or eight 100BASE-FX or 10BASE-FL fiber ports—and some even handle both fiber standards!

    Mixed Media modules combine four or six RJ-45 ports with two or four fiber ports.

    You can also populate the switch's A or B slot with Gigabit Slot Modules. Start with a Slot Module that provides a slot for your GBIC Transceiver Module to uplink to Gigabit Ethernet.

    Although the Vertical-Mount Managed Fiber Switch has a near-infinite amount of configuration options, the total number of ports added to the A and B slots cannot exceed 16.

    Give this switch a hard hat!
    The Vertical-Mount Managed Fiber Switch operates at environmental extremes, has an optional redundant DC power supply, and provides security—plus it features a sleek, heavy-duty metal enclosure.

    It performs and helps you take charge.
    The Vertical-Mount Managed Fiber Switch is loaded with software that enables management via SNMP, tag- and port-based VLANs, and IGMP Snooping and Port Security. For LANs using ring topologies, Spanning Tree protocol, Link-Loss-Learn™, and S-Ring™ are also available.

    High-performance features include nonblocking speed on all ports and 802.1p Quality of Service (QoS) traffic prioritization. The Managed Fiber Switch is ready for use as a backbone switch where a mix of bursty data traffic and priority streaming traffic for Voice over IP (VoIP) and audio/video applications is present.


    Technical Specifications for Vertical-Mount Managed Fiber Switch Chassis, 110–240 VAC:

    Cooling Method Convection, designed for vertical mounting
    Enclosure High-strength metal
    Flow Control IEEE 802.3x full-duplex, all ports nonblocking
    Forward and Filter Rate 10 Mbps: 14,880 pps;
    100 Mbps: 148,880 pps;
    1000 Mbps: 1,488,000 pps
    MAC Addresses 4000 nodes, with address aging time of 155 seconds typical
    Management Via software: SNMP, tag- and port-based VLAN support, IGMP Snooping and Port Security, Spanning Tree protocol, Link-Loss-Learn™, S-Ring™
    Operating Environment Temperature: -60 to +205° F (+51 to +96° C);
    Humidity: 5 to 95% noncondensing;
    Altitude: -200 to +13,000 ft. (-60.9 to 3962.4 m)
    Packet Buffer Size 10 or 100 Mbps: 240 KB;
    1000 Mbps: 120 KB
    Standards IEEE 802.3: 10BASE-T;
    IEEE 802.3u: 100BASE-TX, 100BASE-FX;
    IEEE 802.3z: 1000BASE-TX (autonegotiation);
    IEEE 802.3ab: 1000BASE-TX;
    IEEE 802.1p: Priority protocol;
    IEEE 802.1d: Spanning Tree protocol;
    IEEE 802.1q: VLAN tagging;
    IEEE 802.3x: Flow control
    Switching Method Store and forward
    CE Approval Yes
    Connectors Chassis: (1) DB9 F management console;
    Modules: For details, see price block.
    Indicators LEDs: Per RJ-45 ports:
    LK: Steady on when twisted-pair link is operational;
    ACT: On with port activity;
    F/H: On for full-duplex mode, off for half-duplex mode;
    100/10: On for 100-Mbps speed, off for 10-Mbps speed;
    Per 10- and 100-Mbps fiber ports:
    LK: Steady on when fiber link is operational;
    ACT: On with port activity;
    F/H: On for full-duplex mode, off for half-duplex mode
    Power LEV2525A-CHASSIS: 100 to 240 VAC, 47 to 63 Hz, autosensing, internal;
    LEV2525A-24VDC: 18 to 36 VDC, internal;
    LEV2525A-48VDC: -36 to -70 VDC, internal;
    LEV2525A-125VDC: 88 to 300 VDC, internal
    Size 9.5"H x 8.75"W x 1.75"D (1U) (24.1 x 22.2 x 4.4 cm)
    Weight 4.2 lb. (1.9 kg)

    This product works with:
  • Fiber-Only Multiport Media Modules for Vertical Managed Fiber Switches
  • Mixed-Media Multiport Media Modules for Vertical Managed Fiber Switches
  • Copper-Only Multiport Media Modules for Vertical Managed Fiber Switches
  • Gigabit Slot Modules for Vertical Managed Fiber Switches
  • DIN Rail Brackets for Vertical Managed Fiber Switches
  • GBIC Transceiver for Managed and Vertical Managed Fiber Switches
  • Serial Null-Modem Console Attachment Cable for Managed and Vertical Managed Fiber Switches
  • DC Power Supply for Managed and Vertical Managed Fiber Switches
  • Blank Covers for Unused Slots for Managed and Vertical Managed Fiber Switches
  • Alarm Contacts for Managed and Vertical Managed Fiber Switches
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
