LES1102A

Photo may show similar product

Other views

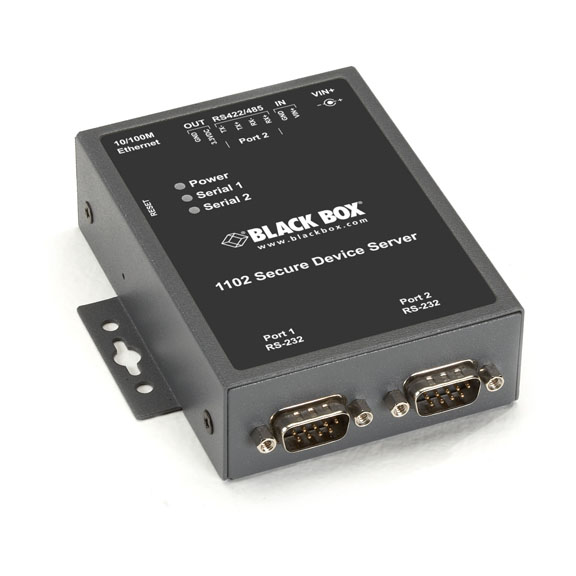

Value Line Secure Device Server, 2-Port

Conveniently manage devices right over your network.

LES1102A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • 10-/100-Mbps Ethernet is autosensing and autonegotiating for speed and duplex.


  • Description

    Value Line Secure Device Server, 2-Port


    Quick Facts

  • 10-/100-Mbps Ethernet is autosensing and autonegotiating for speed and duplex.

  • Further Details

  • Access serial console ports over your network—or even the Internet—using any standard Web browser.
  • Embedded with open-source Linux® based operating system for a high level of customization!
  • Supports auto failover through alternate dial-in.
  • Protects data traveling over a public network with Secure Shell (SSH) encryption, SSH tunneled serial bridging, SSH tunneling for TCP/DUP, IP packet filtering, and more.
  • Off-line data logging, on-line data buffering and logging, as well as port sniffing for multiple users per port.
  • For easy rollback, stores multiple local boot images locally. It's easy to restore configurations.
  • Supports up to 50 concurrent sessions (SDT tunnels).
  • To manage large numbers of console servers over a wide geographic area, even globally, use Virtual Central Management System Software (LES-VCMS-10-1Y, etc.).


  • Technical Specifications for Value Line Secure Device Server, 2-Port:

    "
    Approvals CE, RoHS
    CPU Processor 166 MHz ARM (Micrel KS8695P)
    Environmental Operating temperature: 41 to 122° F (5 to 50° C);
    Humidity: 5 to 90%, noncondensing
    Memory 6 MB SDRAM, 8 MB embedded flash
    Serial Standards RS-232
    Connectors Serial: (2) DB9 (RS-232);
    (1) terminal block (RS-422/-485);
    Network: (1) RJ-45 (10BASE-T/100BASE-TX)
    Power Input: 100-240 VAC, 50-60 Hz external;
    Consumption: Less than 20 W
    Dimensions 1.2"H x 3"W x 4.25"D (3 x 7.6 x 10.8 cm)
    Weight 1 lb. (0.5 kg)
    "


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Value Line Secure Device Server, 2-Port:

    Manuals

    • Value Line Secure Device Server
      (Version 1)

    Quick Start Guides

    • Value Line Secure Device Server PortShare Software Quick Start Guide
      PortShare Software Quick Start Guide for the LES1101A, LES1102A, LES1108A, LES1116A, LES1132A, LES1148A, LES1208A, LES1216A, LES1232A, LES1248A, LES1202A, LES1203A-11G, LES1204A-3G, LES1203A-M, and LES1204A (3)
    • Value Line Secure Device Server
      (Version 1)

    Firmware

    • Value Line Secure Device Server Firmware
      Firmware for the LES1101A and LES1102A (3.4.2u3)

    Black Box Explains


    Connect your Value Line Secure Device Server, 2-Port with:
