Networking > Console Servers

click photo to enlarge

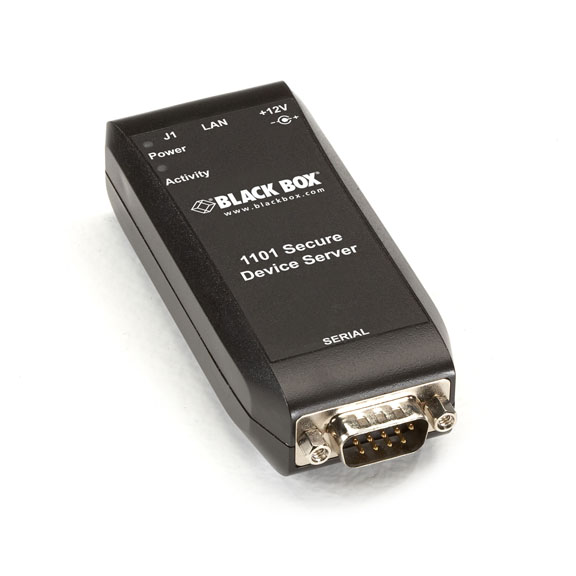

LES1101A

Photo may show similar product

Other views

Value Line Secure Device Server, 1-Port

Conveniently manage devices right over your network.

LES1101A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • 10-/100-Mbps Ethernet is auto-sensing and auto-negotiating for speed and duplex.
  • Access serial console ports over your network—or even the Internet—using any standard Web browser.
  • Embedded with open-source Linux® based operating system for a high level of customization!

  • Description

    Value Line Secure Device Server, 1-Port


    Quick Facts

  • 10-/100-Mbps Ethernet is auto-sensing and auto-negotiating for speed and duplex.
  • Access serial console ports over your network—or even the Internet—using any standard Web browser.
  • Embedded with open-source Linux® based operating system for a high level of customization!

  • Further Details

  • Supports auto failover through alternate dial-in.
  • Protects data traveling over a public network with Secure Shell (SSH) encryption, SSH tunneled serial bridging, SSH tunneling for TCP/DUP, IP packet filtering, and more.
  • Off-line data logging, on-line data buffering and logging, as well as port sniffing for multiple users per port.
  • For easy rollback, stores multiple local boot images locally. It’s easy to restore configurations.
  • Supports up to 50 concurrent sessions (SDT tunnels).


  • Technical Specifications for Value Line Secure Device Server, 1-Port:

    CPU Processor — 166 MHz ARM (Micrel KS8695P)
    Environmental — Operating temperature: 41 to 122º F (5 to 50º C);
    Humidity: 5 to 90%, noncondensing
    Memory — 6 MB SDRAM, 8 MB embedded flash
    Serial Standards — RS-232
    CE Approval — Yes
    RoHS — Yes
    Connectors — Serial: (1) DB9 (RS-232);
    Network: (1) RJ-45 (10BASE-T/100BASE-TX)
    Power — Input: 100–240 VAC, 50–60 Hz external;
    Consumption: Less than 1 W
    Size — 0.9"H x 1.8"W x 3.75"D (2.4 x 4.6 x 9.5 cm)
    Weight — 0.25 lb. (0.1 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Value Line Secure Device Server, 1-Port:

    Manuals

    • Value Line Secure Device Server
      (Version 1)

    Quick Start Guides

    • Value Line Secure Device Server
      (Version 1)
    • Value Line Secure Device Server PortShare Software Quick Start Guide
      PortShare Software Quick Start Guide for the LES1101A, LES1102A, LES1108A, LES1116A, LES1132A, LES1148A, LES1208A, LES1216A, LES1232A, LES1248A, LES1202A, LES1203A-11G, LES1204A-3G, LES1203A-M, and LES1204A (3)

    Firmware

    • Value Line Secure Device Server Firmware
      Firmware for the LES1101A and LES1102A (3.4.2u3)
