Networking > Switches

click photo to enlarge

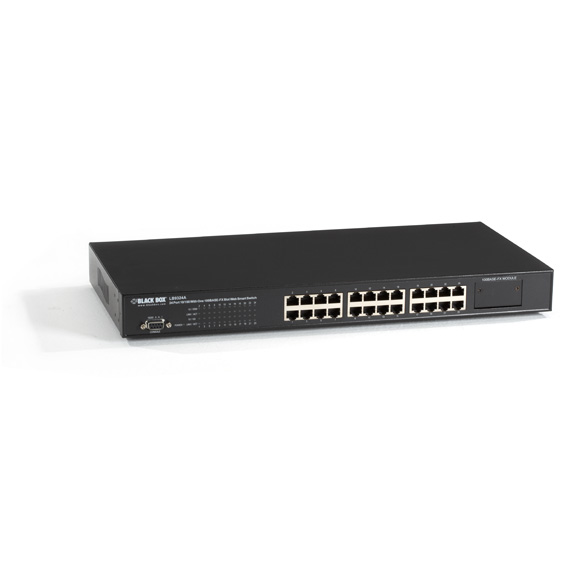

LB9324A

Photo may show similar product

Other views

Value Console Managed Switch, 24-Port

Console management in a value-priced yet capable switch.

This product replaces the Express Ethernet Switch (LB9024A-R2).

LB9324A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Adds ports to your network quickly and economically.
  • The 10-/100-Mbps ports are autosensing for speed and duplex.
  • Use any standard terminal emulation program to monitor and control the switch.
  • Auto MDI/MDI-X on all ports.

  • Description

    Value Console Managed Switch, 24-Port


    Quick Facts

  • Adds ports to your network quickly and economically.
  • The 10-/100-Mbps ports are autosensing for speed and duplex.
  • Use any standard terminal emulation program to monitor and control the switch.
  • Auto MDI/MDI-X on all ports.

  • Further Details

  • Internal, universal power supply.
  • Compact 1U rackmount chassis—the rackmount kit is included.
  • Console management in a value-priced yet capable switch.
  • Also available in a 16-port version.

  • The Value Console Managed Switch has all the features you're looking for in a basic utility switch—including console management—at a per-port price that will keep your budget happy.

    Setup is easy—use a terminal emulation program connected to the serial interface for configuration and management.

    Autosensing 10-/100-Mbps Ethernet ports automatically adapt to the speed and duplex of a connected device. Auto MDI/MDI-X ensures that you'll never need a crossover cable. Plus you don't need to deal with bulky power transformers—the switch has an internal universal power supply.


    Technical Specifications for Value Console Managed Switch, 24-Port:

    Buffer 1.25 MB
    Environmental Operating temperature: 32 to 131° F (0 to 55° C);
    Operating humidity: 10-90%, noncondensing
    Filtering and Forwarding Rate 10 Mbps: 14,880 pps;
    100 Mbps: 148,800 pps
    MAC Addresses 8 K
    Standards IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-T, IEEE 802.3x flow control
    Switching Method Store-and-forward
    CE Approval Yes
    RoHS Yes
    Connectors (24) RJ-45, (1) Uplink, (1) Power
    Indicators LEDs: Per Unit: (1) Power; Per Port: (1) LINK/ACT
    Power 100-240-VAC, 50-60 Hz internal power supply; 10 watts maximum;
    Dimensions 1.75"(1U) H x 17.3"W x 8.7"D (4.4 x 44 x 22 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Value Console Managed Switch, 24-Port:

    Manuals

    • Value Console Managed Switch User Manual
      User Manual for the LB9316A and LB9324A (Version 2)


    Connect your Value Console Managed Switch, 24-Port with:

    Accessory: LB9316C-SC-2K

    Multimode Fiber Uplink Module for Value Console Managed Switches, SC

    Multimode Fiber Uplink Module for Value Console Managed Switches, SC

    Accessory: LB9316C-SC-20K

    Single-Mode Fiber Uplink Module for Value Console Managed Switches, SC

    Single-Mode Fiber Uplink Module for Value Console Managed Switches, SC

    Accessory: EVNSL6-71-BS-0005

    CAT6 High-Density Data Center Patch Cable, 5-ft. (1.5-m), Blue

    CAT6 High-Density Data Center Patch Cable, 5-ft. (1.5-m), Blue

    Accessory: EVNSL643-0005

    GigaTrue CAT6 Channel 550-MHz Patch Cable (UTP), Snagless Boots, Red, 5-ft. (1.5-m)

    GigaTrue CAT6 Channel 550-MHz Patch Cable (UTP), Snagless Boots, Red, 5-ft. (1.5-m)
