Networking > Switches

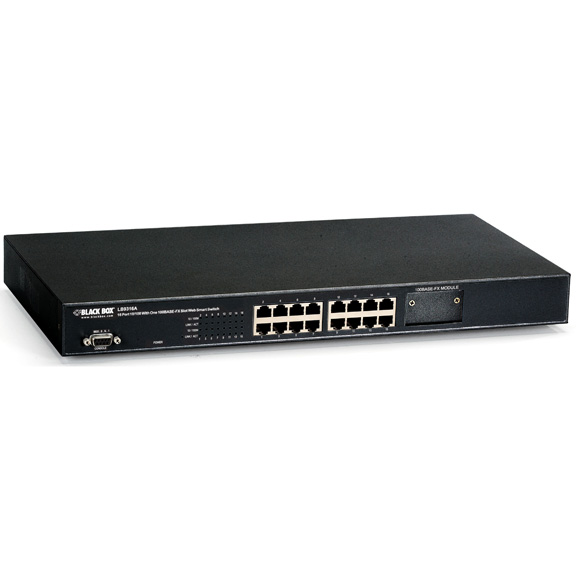

click photo to enlarge

LB9316A

Photo may show similar product

Other views

Value Console Managed Switch, 16-Port

Console management in a value-priced yet capable switch.

LB9316A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Adds ports to your network quickly and economically.
  • The 10-/100-Mbps ports are autosensing for speed and duplex.
  • Use any standard terminal emulation program to monitor and control the switch.
  • Auto MDI/MDI-X on all ports.
  • Internal, universal power supply.

  • Description

    Value Console Managed Switch, 16-Port


    Quick Facts

  • Adds ports to your network quickly and economically.
  • The 10-/100-Mbps ports are autosensing for speed and duplex.
  • Use any standard terminal emulation program to monitor and control the switch.
  • Auto MDI/MDI-X on all ports.
  • Internal, universal power supply.

  • Further Details

  • Compact 1U rackmount chassis—the rackmount kit is included.
  • Also available in a 24-port version.

  • The Value Console Managed Switch has all the features you’re looking for in a basic utility switch—including console management—at a per-port price that will keep your budget happy.

    Setup is easy—use a terminal emulation program connected to the serial interface for configuration and management.

    Autosensing 10-/100-Mbps Ethernet ports automatically adapt to the speed and duplex of a connected device. Auto MDI/MDI-X ensures that you’ll never need a crossover cable. Plus you don’t need to deal with bulky power transformers—the switch has an internal universal power supply.


    Technical Specifications for Value Console Managed Switch, 16-Port:

    Buffer — 1.625 MB
    Environmental — Operating temperature: 32 to 131° F (0 to 55° C);
    Operating humidity: 10–90%, noncondensing
    Filtering and Forwarding Rate — 10 Mbps: 14,880 pps;
    100 Mbps: 148,800 pps
    MAC Addresses — 4 K
    Standards — IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-T, IEEE 802.3x flow control
    Switching Method — Store-and-forward
    CE Approval — Yes
    RoHS — Yes
    Connectors — (16) RJ-45, (1) plink, (1) Power
    Indicators — LEDs: Per Unit: (1) Power; Per Port: (1) LINK/ACT
    Power — Autosensing 100–240-VAC, 50–60 Hz internal power supply;
    7.5 watts maximum
    Size — 1.75"(1U) H x 17.3"W x 8.7" D (4.4 x 44 x 22 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Value Console Managed Switch, 16-Port:


    Connect your Value Console Managed Switch, 16-Port with:

    Accessory: EVNSL643-0005

    GigaTrue CAT6 Channel 550-MHz Patch Cable (UTP), Snagless Boots, Red, 5-ft. (1.5-m)

    GigaTrue CAT6 Channel 550-MHz Patch Cable (UTP), Snagless Boots, Red, 5-ft. (1.5-m)

    Accessory: EVNSL6-71-BS-0005

    CAT6 High-Density Data Center Patch Cable, 5-ft. (1.5-m), Blue

    CAT6 High-Density Data Center Patch Cable, 5-ft. (1.5-m), Blue

    Accessory: LB9316C-SC-2K

    Multimode Fiber Uplink Module for Value Console Managed Switches, SC

    Multimode Fiber Uplink Module for Value Console Managed Switches, SC

    Accessory: LB9316C-SC-20K

    Single-Mode Fiber Uplink Module for Value Console Managed Switches, SC

    Single-Mode Fiber Uplink Module for Value Console Managed Switches, SC
