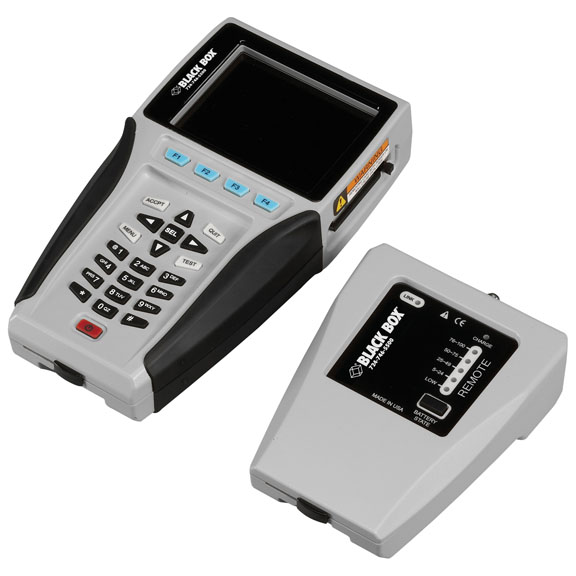

Validator NT

The all-in-one tester for certifying, identifying, configuring, and documenting a network!

NT955

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • A great value for technicians charged with troubleshooting interconnections. This kit includes everything you need to test, trace, and tune your network.
  • Certifies individual Ethernet cable runs at up to Gigabit speeds per IEEE 802.3 specifications.
  • Identifies active components of your network at the remote cable end.

  • Description

    Validator NT


    Quick Facts

  • A great value for technicians charged with troubleshooting interconnections. This kit includes everything you need to test, trace, and tune your network.
  • Certifies individual Ethernet cable runs at up to Gigabit speeds per IEEE 802.3 specifications.
  • Identifies active components of your network at the remote cable end.

  • Further Details

  • Configures links between nodes at Gigabit speed.
  • Use the included software to document your network and print job reports.
  • Port discovery and PING features.

    Lugging about multiple testers to perform a number of network tests? Lighten your load with the Validator NT. This kit has all that you need to certify, identify, configure, and document your network, as well as test coax, phone, audio, and security wiring.

    With its certification capabilities, you can test for TIA 568 interconnect problems, pinpointing fault locations and determining cable length and delay as well as noise conditions. At Gigabit speed, you can configure links between nodes on your network, checking IP addresses and more.

    You can also use the Validator NT to validate whether a network performs at advertised speeds, making it ideal for billing a cable installation job. Test and certify each cable run, print the results, and attach them to your invoice. It’s that easy!

    The tester also has port service discovery features and enables you to access IP addresses and PING equipment and flash hubs and switches for positive port location. No other tester/certifier does so much!

    Produce elaborate test schedules and document test results, then print them with Plan-Um™ software (included). It ties together all the different cable criteria in complex installations and displays cable and equipment connections graphically. You can also use Plan-Um to create office layouts or import CAD drawings.

    Functions include:
  • Signal tests on network cable
  • Wiremap up to eight locations at a time
  • TDR distance to opens and shorts
  • SKEW
  • NEXT (all combinations on all 12 pairs)
  • Channel response
  • Echo testing (return loss) for impedance mismatches
  • Signal-to-noise ratio (attenuation, amplitude, return loss)

    Performance and speed certification:
  • Supports IEEE 802.3 speed criteria with full BERT
  • Tests interconnect specifications per TIA 568/570
  • Measures signal quality through the cable against set criteria on cable data-carrying capability in real time
  • Measures signal quality in actual link environments to help determine cause of any cable inadequacies

  • Technical Specifications for Validator NT:

    Cable Length for Testing for Split Pairs (Maximum) — 1500 ft. (457.2 m) depending on cable type
    Cable Types — Shielded or unshielded CAT3, CAT5, CAT5e, CAT6; telephone; coax; speaker; security; and alarm wiring
    Display — 256-color active backlit LCD
    Keypad — Full navigation set; alphanumeric data entry; soft key functions
    Operating System — Linux®
    Interface — (1) serial port for direct printing; (1) USB for uploading files from/to a laptop or PC
    Power — AC adapter and (2) lithium ion rechargeable batteries (included)
    Size — Main unit: 9"H x 4.5"W x 2.1"D (22.9 x 11.4 x 5.3 cm);
    Smart Remote unit: 5.6"H x 4.4"W x 1.8"D (14.2 x 11.2 x 4.6 cm)
    Weight — Main unit: 1.6 lb. (0.7 kg);
    Smart Remote unit: 0.75 lb. (0.3 kg)
    Warranty — 1 Year


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
