Premises Security > Intercom & Paging

click photo to enlarge

V-1030C

Photo may show similar product

Other views

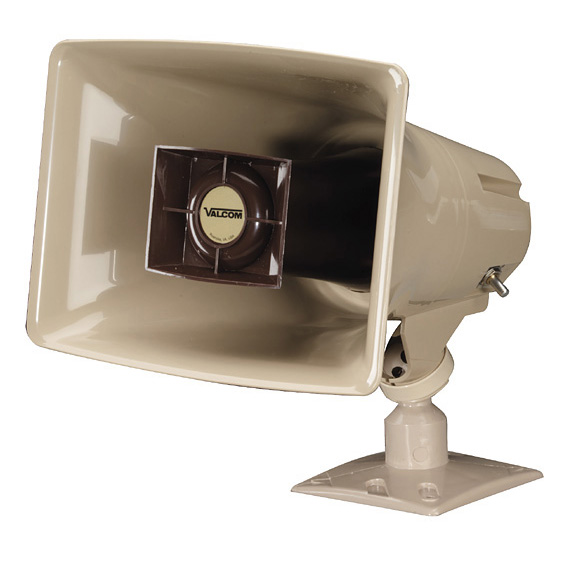

Valcom 5-Watt Amplified Horn

Be heard in areas with low to medium ambient noise.

V-1030C


90 DAYS Warranty

Product Highlights

  • Ideal for use in most offices, corridors, lobby areas, or any location with low to medium ambient noise.
  • Re-entrant-type horn in a beige, high-impact ABS housing.
  • Disperses sound 120º horizontally and 90º vertically.
  • Has a 5-watt amplifier module and volume control built in.

  • Description

    Valcom 5-Watt Amplified Horn


    Quick Facts

  • Ideal for use in most offices, corridors, lobby areas, or any location with low to medium ambient noise.
  • Re-entrant-type horn in a beige, high-impact ABS housing.
  • Disperses sound 120º horizontally and 90º vertically.
  • Has a 5-watt amplifier module and volume control built in.

  • Further Details

  • Use indoors or out—it’s weather resistant.
  • Omnidirectional mounting base that can be adjusted 360º horizontally and 160º vertically.
  • Comes with a clamp for mounting on an I-beam.
  • Base can be detached to enable horn mounting on a wall or an electrical box.
  • Operates on 24-VDC power.

  • Technical Specifications for Valcom 5-Watt Amplified Horn:

    Amplifier Module Output/Input — Rated output: 5 W RMS;
    Output load: 8 ohms;
    Input impedance: 600 ohms (1 kHz at rated output)
    Frequency Response — 275 Hz to 14 kHz
    Operating Environment — Temperature: -4 to +131° F (-20 to +55° C);
    Humidity: Up to 95%, noncondensing
    Sound Pressure Levels — 116 dB measured at 4 ft. (1.2 m) on axis with a 10-dBm input at 1 kHz
    Power — Amplifier module: -24 VDC, nominal, positive ground; operating current of 900 mA at -24 VDC
    Size — 7.4"H x 10"W x 10.5"D (18.8 x 25.4 x 26.7 cm)
    Weight — 4.8 lb. (2.2 kg)
    Warranty — 90 days


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
