Video & Multimedia > Converters/Scalers

click photo to enlarge

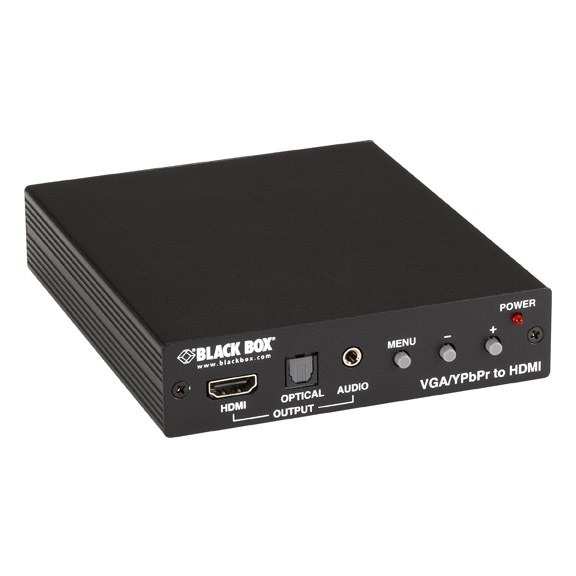

AVSC-VGA-HDMI

Photo may show similar product

Other views

VGA to HDMI Converter Scaler with Local VGA

Scale VGA or Component input for HD 1080p or WUXGA output.

AVSC-VGA-HDMI

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Upscales a VGA or a Component video signal for digital HDMI output to an HDTV screen at 1080p resolutions.
  • Features local VGA loop-through port for outputting PC or Component signals on a local monitor or display.

  • Description

    VGA to HDMI Converter Scaler with Local VGA


    Quick Facts

  • Upscales a VGA or a Component video signal for digital HDMI output to an HDTV screen at 1080p resolutions.
  • Features local VGA loop-through port for outputting PC or Component signals on a local monitor or display.

  • Further Details

  • Also supports WUXGA (1920 x 1200) resolutions.
  • Audio support, too. Converts a digital/analog audio signal for output via HDMI, TOSLINK™, and mini stereo jack connectors simultaneously.
  • Easy-to-use OSD menu makes it easy to choose output resolutions and adjust picture quality.
  • Ideal for integrating digital signage into an existing PC application.
  • Also great for scaling PC video for demanding healthcare, university lab, or graphics studio uses.
  • HDMI 1.2, HDCP 1.1, and DVI 1.0 standards compliant.
  • Compact, lightweight aluminum chassis.
  • RoHS compliant.

  • Here’s an easy, economical way to upscale analog video from a VGA source for clean, clear 1080p display on an LCD or a plasma screen.

    Just plug in a VGA cable from a PC, laptop, or other VGA source and the Black Box® VGA to HDMI Converter Scaler with Local VGA scales the video signal for digital output on an HDMI screen. It’s just what you need to get computer video to play on that big, new HDTV of yours.

    Or plug in the included Component to VGA breakout cable—a DVD player or a satellite or CATV set-top box, for instance—and convert a Component YPbPr video source signal for digital HDMI display.

    You dictate the level and degree of conversion and scaling on the box itself, selecting your desired resolution through its OSD interface. No complicated configuration is necessary.

    The VGA to HDMI Converter Scaler with Local VGA supports a wide range of HDTV resolutions—up to 1080p and PC resolutions up to WUXGA.

    When “Native” output is selected, the box automatically detects the factory setting of the connected display and then outputs the corresponding resolution and refresh rate.

    You can also adjust the output image’s contrast, brightness, hue, saturation, and sharpness, as well as its RGB (color tone) level and aspect ratio size.

    Plus, through the scaler’s integrated HD15 VGA loop-through port, you can plug in a local VGA monitor (or Component screen via an adapter cable).*

    In addition to scaling video, the VGA to HDMI Converter Scaler with Local VGA supports audio connections. Combine audio with video through HDMI or output it separately. The scaler provides stereo LPCM analog/digital audio input and LPCM analog/digital output.

    Connect the box to high-end amplifiers via its digital optical TOSLINK™ cabling or attach analog audio equipment via 3.5-mm jacks.

    *NOTE: If you connect a PC to to the VGA input, local output will only support PC resolutions. If you connect an HD/SD source to the VGA input, local output will support only HD/SD resolutions.


    Technical Specifications for VGA to HDMI Converter Scaler with Local VGA:

    Resolutions Supported —
    VGA input/output: PC: 480i/576i (NTSC/PAL), 480p/576p, 720p at 50/60 Hz, 1080i at 25/30 Hz, 1080p at 50/60 Hz, VGA at 60/72/75/85 Hz, SVGA at 56/60/72/75/80 Hz, XGA at 60/70/75/85 Hz, SXGA at 60/75/85 Hz, UXGA at 60 Hz, WXGA at 60 Hz (1280 x 800), WSXGA at 60 Hz (1680 x 1050 Hz), WUXGA at 60 Hz (1920 x 1200 Hz);
    HDMI SD/HD output: 480i/576i (NTSC/PAL), 480p/576p, 720p at 50/60 Hz, 1080i at 25/30 Hz;
    HDMI PC output: VGA at 60/72/75/85 Hz, SVGA at 56/60/72/75/80 Hz, XGA at 60/70/75/85 Hz, SXGA at 60/75/85 Hz, UXGA at 60 Hz, WXGA at 60 Hz (1280 x 800), WSXGA at 60 Hz (1680 x 1050 Hz), WUXGA at 60 Hz (1920 x 1200 Hz)
    CE Approval — Yes
    Connectors — Input: (1) HD15 F (PC/HDTV), (1) 3.5-mm audio jack, (1) TOSLINK optical fiber;
    HDTV output: (1) HDMI, (1) 3.5-mm jack, (1) TOSLINK optical fiber;
    Local VGA output: (1) HD15 F
    Power — 5 VDC; Consumption: 10 W (maximum)
    Size — 1"H x 3.9"W x 6.1"D (2.5 x 10 x 15.5 cm)
    Weight — 0.8 lb. (0.4 kg)
    *NOTE: If you connect a PC to to the VGA input, local output will only support PC resolutions. If you connect an HD/SD source to the VGA input, local output will support only HD/SD resolutions.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for VGA to HDMI Converter Scaler with Local VGA:

    Manuals

    • VGA to HDMI Converter Scaler with Local VGA Manual
      Manual for the AVSC-VGA-HDMI.

    Black Box Explains


    Connect your VGA to HDMI Converter Scaler with Local VGA with:

    Accessory: EVNPS09-0050

    Premium VGA Cable with Audio, 50-ft. (15.2-m)

    Premuim VGA Cable with Audio, (2) HD15 Male/(2) 3.5 mm Male, PVC

    Accessory: EVNPS09-0035

    Premium VGA Cable with Audio, 35-ft. (10.6-m)

    Premuim VGA Cable with Audio, (2) HD15 Male/(2) 3.5 mm Male, PVC

    Accessory: EVNPS09-0025

    Premium VGA Cable with Audio, 25-ft. (7.6-m)

    Premuim VGA Cable with Audio, (2) HD15 Male/(2) 3.5 mm Male, PVC

    Accessory: EVNPS09-0005

    Premium VGA Cable with Audio, 5-ft. (1.5-m)

    Premuim VGA Cable with Audio, (2) HD15 Male/(2) 3.5 mm Male, PVC
