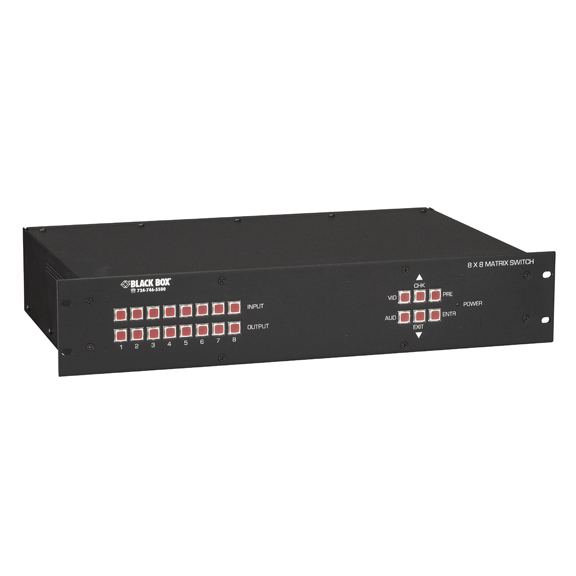

AC1120A-RJ45

Photo may show similar product

Other views

VGA and Audio Matrix Switch with RJ-45 Outputs and Serial Control, 8 x 8

A built-in transmitter makes it easy to route VGA and 1080p HD video over CAT5 cable.

AC1120A-RJ45

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • For cross-point switching of PC or HD (VGA or YPbPr) video signals.
  • Features eight HD15 input ports and eight RJ-45 output ports for tranmitting directly over CATx cable.
  • A built-in CAT5 transmitter eliminates the need to buy a separate transmitter.

  • Description

    VGA and Audio Matrix Switch with RJ-45 Outputs and Serial Control, 8 x 8


    Quick Facts

  • For cross-point switching of PC or HD (VGA or YPbPr) video signals.
  • Features eight HD15 input ports and eight RJ-45 output ports for tranmitting directly over CATx cable.
  • A built-in CAT5 transmitter eliminates the need to buy a separate transmitter.

  • Further Details

  • This high-end matrix switch gives you eight RJ-45 video outputs, each capable of independently displaying any of the eight inputs in any combination.
  • Ideal for digital signage display systems where you want to switch source inputs for screen output on various screens.
  • Also great for broadcast, multimedia conference, and classroom applications, as well as command and control centers.
  • Switched video output can also be blanked.
  • Outputs PC resolutions up to 1900 x 1200 and HD video up to 1080p.
  • A built-in CAT5 transmitter enables you to send 1600 x 1200 video up to 300 feet at 85 HZ or 1280 x 1024 video up to 500 feet at 60 Hz.
  • Switch using buttons on the front panel or by issuing RS-232 commands.
  • Just pair each port with a receiver at the other end.
  • Eliminates the need for bulky VGA cables.
  • Intuitive keypads enable you to check channel status and configure new input/output ties.
  • Use front panel to view switch routings (ties) either from input or from output side.
  • Program preset switching patterns at certain times of the day—great for automating digital signage!
  • Stores up to eight preset routing patterns. Reconfigure at the push of a button.
  • Has two independent serial RS-232 interfaces, a screw terminal, and an RJ-45 port. Control the switch remotely through either port.
  • Blinking CHECK light alerts you to any detected system faults. The switch also monitors voltage levels and temperature.
  • 2U, 19" rackmountable enclosure.
  • RoHS compliant.


  • Technical Specifications for VGA and Audio Matrix Switch with RJ-45 Outputs and Serial Control, 8 x 8 :

    MTBF 900,000 hrs. (estimated)
    Resolutions Supported (Maximum) PC: 1900 x 1200 at 60 Hz;
    HD video: 1080p
    Video Level Supported 0.3 V to 0.7 V (1 V p-p) on RGB; 0 to 5 VDC on sync
    CE Approval Yes
    Connectors Video input: (8) HD15 F (VGA);
    Video output: (8) RJ-45;
    Serial (RS-232) control: (1) 3-screw terminal with detachable mating connector, (1) RJ-45 (auxiliary)
    Power 100-240 VAC, 50-60 Hz, autosensing
    Size 3.5"H (2U) x 19"W x 12.8" D (8.9 x 48.3 x 7.2 cm)
    Weight 9.4 lb. (4.3 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
