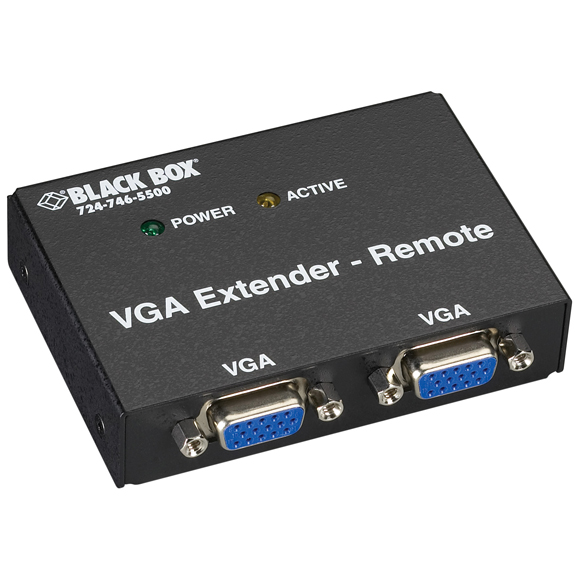

AC555A-REM-R2

Photo may show similar product

Other views

VGA Receiver, 2-Port

Connect two remote monitors in a VGA Transmitter extender application.

AC555A-REM-R2

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Works with the 4-port VGA Transmitter (AC555A-4-R2) to extend V GA video up to 500 feet.
  • An equalization (gain) control enables you to fine-tune the picture.
  • Has a 2-kV avalanche diode, which provides greater electrostatic discharge (ESD) protection and more reliable operation.
  • Connects to two VGA monitors.


  • Further Details

    This product works with:
  • VGA Transmitter, 4-Port (AC555A-4-R2)
  • CAT5 Solid-Conductor Cable (EYN556MS, EYN550MS)
  • VGA Balun (AC640A)
  • Questions? Contact our FREE Tech Support.

    Distance (Maximum) 500 ft. (152.4 m)
    Resolution (Maximum) 1024 x 768
    User Controls (1) equalizer selector switch
    Connectors (1) RJ-45, (1) 5 VDC in, (2) HD15 F out
    Indicators (1) Power, (1) Active
    Power External: Input: 120 VAC, 60 Hz;
    Output: 5 VDC, 600 mA
    Size 0.6"H x 3.3"W x 2.3"D (1.5 x 8.4 x 5.8 cm)
    Weight 0.4 lb. (0.2 kg)
    This product works with:
  • VGA Transmitter, 4-Port (AC555A-4-R2)
  • CAT5 Solid-Conductor Cable (EYN556MS, EYN550MS)
  • VGA Balun (AC640A)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.
