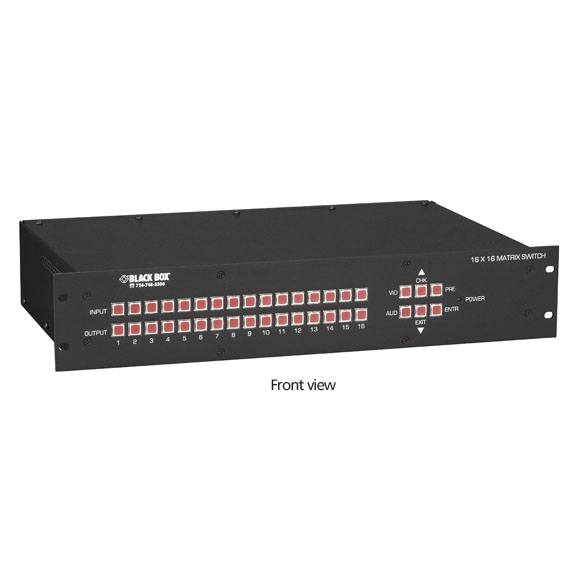

VGA Matrix Switch with Serial Control

A switching matrix made for easy VGA and 1080i HD video routing!

AC1122A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • For cross-point switching of PC or HD (VGA or YPbPr) video signals.
  • Available with 16 or 32 HD15 ports (8 input/8 output or 16 input/16 output).

  • Description

    VGA Matrix Switch with Serial Control, 16 x 16


    Quick Facts

  • For cross-point switching of PC or HD (VGA or YPbPr) video signals.
  • Available with 16 or 32 HD15 ports (8 input/8 output or 16 input/16 output).

  • Further Details

  • Switch using front-panel buttons or via RS-232 commands.
  • Switched video output can also be blanked.
  • Outputs PC resolutions up to 1900 x 1200 and HD video up to 1080p. Also works with analog SD video.
  • Has two independent serial RS-232 interfaces, a screw terminal and an RJ-45 port. Control the switch remotely through either port.
  • Use front panel to view switch routings (ties) either from input or from output side.
  • Intuitive up and down arrow buttons on front-panel keypad enable you to check channel status and configure new input/output ties.
  • For easy recall, stores up to 8 or 16 preset routing patterns. Reconfigure for frequently used switch patterns at the push of a button.
  • Can also be programmed to switch between preset patterns at certain times of the day—great for automating video distribution to digital signage.
  • For scheduling reliability, features a real-time clock with battery backup.
  • Ideal for large digital signage display systems where you want to switch source inputs for screen output on various screens.
  • Also great for broadcast, multimedia conference, and classroom applications, as well as command and control centers.
  • Works with BLACK BOX® Mini CAT5 Extenders for transmitting VGA signals over CAT5 cable.
  • Blinking CHECK light alerts you to any detected system faults. Unit also monitors voltage levels and temperature.
  • Compact and reliable, with a 2U-high, 19" rackmountable enclosure.
  • RoHS compliant.

  • Technical Specifications for VGA Matrix Switch with Serial Control:

    CE Approval Yes
    MTBF 900,000 hrs. (estimated)
    Resolutions Supported (Maximum) PC: 1900 x 1200 at 60 Hz;
    HD video: 1080p
    Video Level Supported 0.3 V to 0.7 V (1 V p-p) on RGB; 0 to 5 VDC on sync
    Connectors Video input: (8) or (16) HD15 F (VGA);
    Video output: (8) or (16) HD15 F (VGA);
    Serial (RS-232) control: (1) 3-screw terminal with detachable mating connector, (1) RJ-45 (auxiliary)
    Power 100-240 VAC, 50-60 Hz, autosensing
    Size 3.5"H (2U) x 19"W x 12.8D (8.9 x 48.3 x 7.2 cm)
    Weight 9.4 lb. (4.3 kg)

    NOTE: HD15-to-3 RCA cables may be required for some video connections. To order, contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
