Video & Multimedia > Converters & Scalers

click photo to enlarge

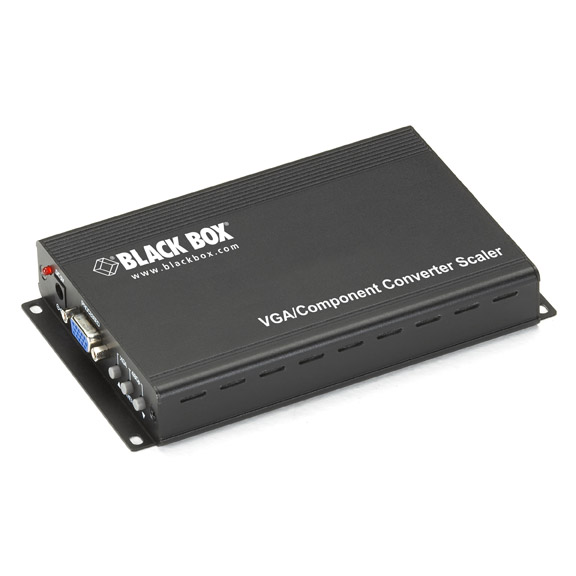

AC345A-R2

Photo may show similar product

Other views

VGA/HDTV Scaler Plus

Convert any video output for use with any display.

AC345A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Provides the functions of a video scaler, scan converter, and format transformer in one unit.
  • Scales the resolution of any PC or HDTV video signal up or down to match that of another PC or HDTV.
  • Provides a steady VGA signal to your display device, enabling you to switch seamlessly from one input to another.
  • Inverts the VGA output horizontally, making it perfect for teleprompters and rear-projection systems.

  • Description

    VGA/HDTV Video Scaler Plus


    Quick Facts

  • Provides the functions of a video scaler, scan converter, and format transformer in one unit.
  • Scales the resolution of any PC or HDTV video signal up or down to match that of another PC or HDTV.
  • Provides a steady VGA signal to your display device, enabling you to switch seamlessly from one input to another.
  • Inverts the VGA output horizontally, making it perfect for teleprompters and rear-projection systems.

  • Further Details

  • Fine-tune the output picture by adjusting the resolution and refresh rates.
  • Offers the unique capability to mirror the VGA input signal (VGA to VGA).
  • Automatically detects the input mode and timing parameters.
  • Provides VGA to Component video (Y-Pb-Pr or RGBHV) and Component video (Y-Pb-Pr or RGBHV) to VGA conversion.
  • Converts between RGBHV and Y-Pb-Pr.
  • Also supports loop-out HD15 output for local monitor viewing.
  • Offers easy push-button on-screen display menu control.
  • Adjust sampling clock, phase, and position on screen.
  • A large memory enables real-time frame-rate capture and conversion.
  • Enclosure is EMI shielded.

  • What’s included:
  • (1) 3-ft. VGA (HD15 male) to Component ([3] RCA) cable
  • (1) 3-ft. VGA (HD15 male/male) cable
  • (1) power supply
  • User’s manual


  • Technical Specifications for VGA/HDTV Scaler Plus:

    Input Format — RGBHV, Y-Pb-Pr, Y-Cb-Cr
    Output Format — RGBHV, Y-Pb-Pr
    Input Resolution — PC: 640 x 480, 800 x 600, 1024 x 768, 1280 x 800, 1440 x 900, 1280 x 1024, 1400 x 1050, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200;
    HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Output Resolution — PC: 680 x 480, 800 x 600, 1024 x 768, 1280 x 800, 1440 x 900, 1280 x 1024, 1400 x 1050, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200;
    HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Adjustments — Brightness, contrast, color, RGB
    Connectors — Input: (1) HD15 F
    Output: (2) HD15 F
    CE Approval — Yes
    RoHS — Yes
    Power — 115 VAC to 12 VDC adapter
    Size — 1.2"H x 5.5"W x 3"D (3 x 13.9 x 7.6 cm)
    Weight — 0.75 lb. (0.34 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for VGA/HDTV Scaler Plus:

    Manuals

    • VGA/HDTV Scaler Plus Manual
      Manual for the AC345A-R2

    Product Data Sheets

    Application Diagrams
