AC556A-R2

Photo may show similar product

Other views

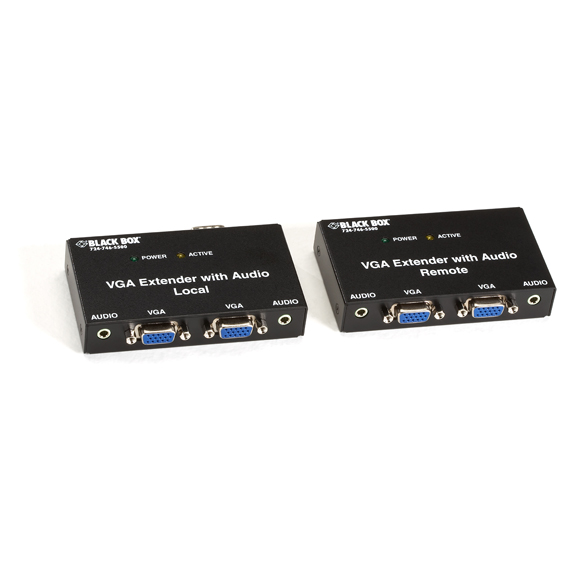

VGA Extender Kit with Audio, 2-Port Local, 2-Port Remote

Place two remote VGA displays and speakers up to 500 feet from your PC.

AC556A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Ideal for digital signage applications, such as exhibits, retail, trade shows, and airports.
  • Enables you to extend VGA and audio over ordinary CAT5, CAT5e, and CAT6 cable.
  • Both the local and the remote units support two monitors with speakers.

  • Description

    VGA Extender Kit with Audio, 2-Port Local, 2-Port Remote


    Quick Facts

  • Ideal for digital signage applications, such as exhibits, retail, trade shows, and airports.
  • Enables you to extend VGA and audio over ordinary CAT5, CAT5e, and CAT6 cable.
  • Both the local and the remote units support two monitors with speakers.

  • Further Details

  • Has a 2-kV avalanche diode, which provides greater electrostatic discharge (ESD) protection and more reliable operation.
  • An equalization (gain) control on the remote unit enables you to fine-tune the picture.

  • This unit features a simple and functional design. The transmitter (local unit) duplicates the input VGA signal and transmits it through CATx cable to the receiver (remote unit), which broadcasts the signal to two VGA outputs. The kit consists of a local unit and a remote unit.

    This product works with:
  • CAT5 Solid-Conductor Cable (EYN556MS, EYN550MS)
  • VGA Balun (AC640A)
  • Questions? Contact our FREE Tech Support.

    What’s included:
  • Local unit
  • Remote unit
  • (4) rubber feet
  • 6-ft. (1.8-m) male-to-male audio cable
  • 6-ft. (1.8-m) VGA male to VGA female cable
  • 6-ft. (1.8-m) power cords, (2) power supplies
  • User’s manual

  • Technical Specifications for VGA Extender Kit with Audio, 2-Port Local, 2-Port Remote:

    Distance (Maximum) — 500 ft. (152.4 m)
    Resolution Maximum — 1024 x 768
    User Controls — (1) equalizer selector switch
    Connectors — Local unit: (1) HD15 M in, (1) RJ-45, (1) 5 VDC in, (1) stereo audio in, (2) HD15 F out, (2) stereo audio out;
    Remote unit: (1) RJ-45, (1) 5 VDC in, (2) HD15 F out, (2) stereo audio out
    Indicators — On each local and remote unit: (1) Power, (1) Active
    Power — External: Input: 120 VAC, 60 Hz;
    Output: 5 VDC, 600 mA
    Size — Each unit: 0.6"H x 4.1"W x 2.3"D (1.5 x 10.4 x 5.8 cm)
    Weight — Each unit: 0.4 lb. (0.2 kg)
    This product works with:
  • CAT5 Solid-Conductor Cable (EYN556MS, EYN550MS)
  • VGA Balun (AC640A)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
