Video & Multimedia > Baluns


click photo to enlarge

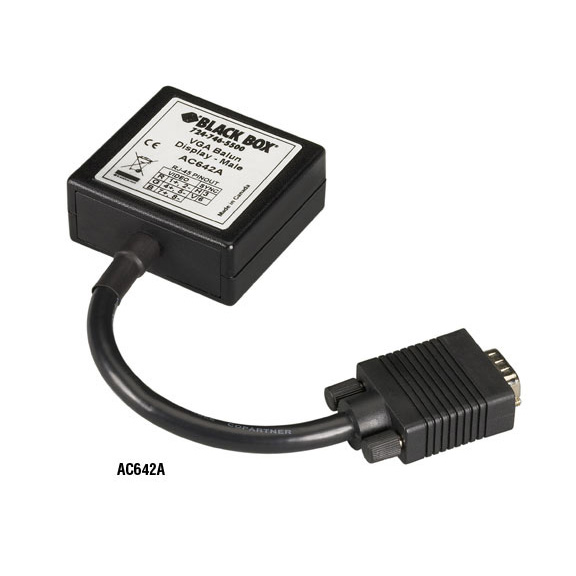

AC642A

Photo may show similar product

Other views

VGA Display Balun, Male

Use CAT5 cable instead of VGA cable for your long video runs.

AC642A

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Receives VGA signals transmitted over economical 4-pair shielded twisted-pair (STP) cable.
  • Guaranteed for life!


  • Description

    VGA Display Balun, Male


    Quick Facts

  • Receives VGA signals transmitted over economical 4-pair shielded twisted-pair (STP) cable.
  • Guaranteed for life!

  • Further Details

  • Support VGA resolutions of 640 x 480 (15 MHz) at distances of 450 feet (137.1 m). Higher resolutions are possible at shorter distances when transferring SVGA, XGA, and SXGA video.
  • Save conduit space by using existing CAT5 STP cables to distribute video and by using CAT5 UTP cables for keyboard and mouse extension to classrooms or conference rooms.
  • Great for long source-to-display connections where using coax cables can be cumbersome and expensive.


    Source-to-display extensions without the need for VGA cabling.
    Putting a lot of distance between a PC video source and a display device can be expensive if you use standard VGA cable to connect the two. How about using lower-cost twisted-pair cable instead? With Black Box® VGA Baluns, you can.

    These compact, nonpowered devices enable you to quickly set up VGA source-to-display runs at distances up to 450 feet.


  • Technical Specifications for VGA Display Balun, Male:

    Distance (Maximum) Over STP CAT5 cable: VGA: 450 ft. (137.1 m) using 640 x 480 at 15 MHz;
    SVGA: 350 ft. (106.7 m) using 800 x 600 at 30 MHz;
    XGA: 250 ft. (76.2 m) using 1024 x 780 at 60 MHz;
    SXGA: 200 ft. (61 m) using 1280 x 1024 at 100 MHz
    CE Approval Yes
    Connectors (1) shielded RJ-45;
    (1) HD15 M on 6" (15.2-cm) lead
    Size 1"H x 2.4"W x 2.3"D (2.5 x 6.1 x 5.8 cm)

    NOTE: Must be paired with a source balun.

    This product works with:
  • VGA Source Balun (AC640A)
  • CAT5 Shielded Cable (STP) (EVNSL60)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
