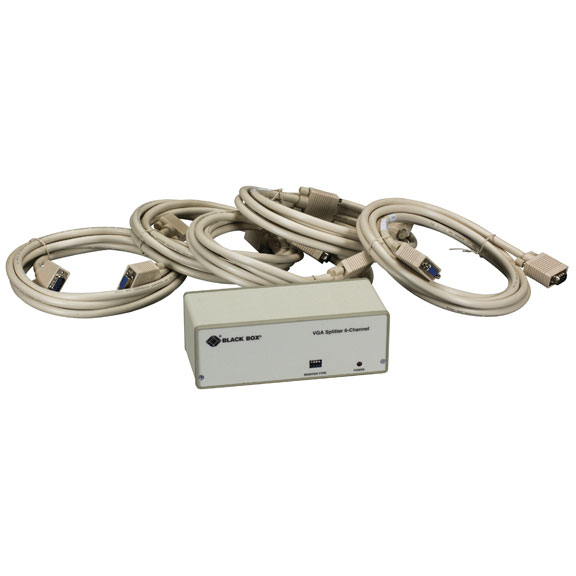

AC159A-R3

Photo may show similar product

Other views

VGA 6-Channel Video Splitter, 115/230 VAC

Take the message from your PC's screen to multiple monitors.

AC159A-R3

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Provides the distance you need. Send displays up to 250 feet (76.2 m)!
  • Adds power to displays, demonstrations, classrooms, even manufacturing facilities.


  • Description

    VGA 6-Channel Video Splitter, 115/230 VAC


    Quick Facts

  • Provides the distance you need. Send displays up to 250 feet (76.2 m)!
  • Adds power to displays, demonstrations, classrooms, even manufacturing facilities.

  • Further Details

  • Distribute on-line information efficiently to workstations on your factory floor while maintaining your CPU in a separate room.
  • Quick setup. Just plug in your monitors and snap a few DIP switches.
  • Cascade units to transmit to as many monitors as you want.
  • The 300-MHz bandwidth gives you clear, sharp images at any resolution: VGA, Super VGA, and XGA!

    Sharp images. Long-distance broadcasting. The versatility to handle a variety of applications, in any kind of environment.

    These qualities—and more—have made a BLACK BOX® VGA Video Splitter an industry favorite. And they'll make one of our VGA Splitters your favorite solution, too.

    A single VGA Video Splitter enables you to transmit displays from your CPU to up to six other monitors up to 250 feet (76.2 m) away. And if you cascade the splitters, you can transmit to as many monitors as necessary. Furthermore, the 300-MHz bandwidth also provides the clearest images at any resolution—VGA, SVGA, even XGA®!

    Setup is simple. Just connect the cables from all monitors to a splitter and flip a few DIP switches. That's all it takes to project what's on your PC's screen to multiple monitors.

    The uses for a VGA Video Splitter are practically limitless, but some applications are especially popular.

    The tale of the (video) tape.
    Everyone knows how prominent the stock market is in the news. Brokerage firms, stock exchanges, and day trader offices rely on the power of a video splitter.

    Just think, one video splitter enables you to run real-time ticker crawls across multiple monitors. Another splitter puts up-to-the-moment business news on other monitors.

    Broadcasting via the circuitous route.
    Companies that use Closed-Circuit TV (CCTV) feeds can spread the message even further with a VGA Video Splitter. Splitters are perfect for department stores, sports bars, and stadiums.

    Your presentation is a real class act.
    Are you in front of an audience on a regular basis? If so, a VGA Video Splitter enables you to bring that extra, professional polish to classroom lectures or business presentations. Show everyone the graphic details that convey your points or seal the deal.

    The tools of the trade.
    Make your company's presence known at your next trade show. Create multiple attention-grabbing video kiosks or senses-shattering walls of video. Attract attendees to your booth, drum up positive word of mouth, and look great doing it. Your bottom line will thank you for it.

    Music to your…eyes.
    Nowadays, concerts aren't just about the music—they're multimedia events. Enhance the show with video images transmitted to multiple, large-screen displays. The show goes on in new and spectacular ways.

    Safety first.
    The factory floor is unsafe for CPUs, but your workers need information to do their jobs. With a VGA Video Splitter, you can distribute news and information to workstations on the floor while maintaining CPUs in separate rooms.

    A variety of choices.
    Other splitter options include 2-, 4-, 8-, and 10-channel, and 115-VAC and 230-VAC units.

    What's included:
  • Splitter
  • (1) 6-ft. (1.8-m) HD15 Male/Male VGA input cable
  • (5) 10-ft. (3-m) Male/Female VGA Video Extension Cables

    This product works with:
  • VGA Video Extension Cable (EVNPS05)
  • 2-Channel VGA Booster (AC074A-R3)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for VGA 6-Channel Video Splitter, 115/230 VAC:

    Controls Monitor Type Selection: 4-position front-panel DIP switch
    CE Approval Yes
    Connectors VGA input and outputs to monitors: HD15 F;
    Power input: 5-pin mini DIN
    Indicators (1) Red LED for power
    Power 100–260 VAC, autosensing
    Size 2.5"H x 7.3"W x 3.3"D (6.4 x 18.5 x 8.4 cm)
    Weight 3 lb. (1.4 kg)
    This product works with:
  • VGA Video Extension Cable (EVNPS05)
  • 2-Channel VGA Booster (AC074A-R3)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
