AC160A-R3

Photo may show similar product

Other views

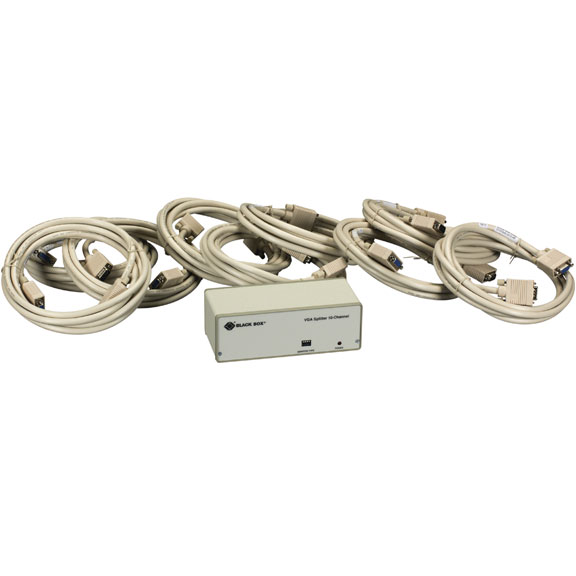

VGA 10-Channel Video Splitter, 115/230-VAC

Take the message from your PC's screen to multiple monitors.

AC160A-R3

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Provides the distance you need. Send displays up to 250 feet (76.2 m)!
  • Adds power to displays, demonstrations, classrooms, even manufacturing facilities.


  • Further Details

  • Distribute on-line information efficiently to workstations on your factory floor while maintaining your CPU in a separate room.
  • Quick setup. Just plug in your monitors and snap a few DIP switches.
  • Cascade units to transmit to as many monitors as you want.
  • The 300-MHz bandwidth gives you clear, sharp images at any resolution: VGA, Super VGA, and XGA!

    Sharp images. Long-distance broadcasting. The versatility to handle a variety of applications, in any kind of environment.

    These qualities—and more—have made a BLACK BOX® VGA Video Splitter an industry favorite. And they'll make one of our VGA Splitters your favorite solution, too.

    A single VGA Video Splitter enables you to transmit displays from your CPU to up to 10 other monitors up to 250 feet (76.2 m) away. And if you cascade the splitters, you can transmit to as many monitors as necessary. Furthermore, the 300-MHz bandwidth also provides the clearest images at any resolution—VGA, SVGA, even XGA®!

    Setup is simple. Just connect the cables from all monitors to a splitter and flip a few DIP switches. That's all it takes to project what's on your PC's screen to multiple monitors.

    The uses for a VGA Video Splitter are practically limitless, but some applications are especially popular.

    The tale of the (video) tape.
    Everyone knows how prominent the stock market is in the news. Brokerage firms, stock exchanges, and day trader offices rely on the power of a video splitter.

    Just think, one video splitter enables you to run real-time ticker crawls across multiple monitors. Another splitter puts up-to-the-moment business news on other monitors.

    Broadcasting via the circuitous route.
    Companies that use Closed-Circuit TV (CCTV) feeds can spread the message even further with a VGA Video Splitter. Splitters are perfect for department stores, sports bars, and stadiums.

    Your presentation is a real class act.
    Are you in front of an audience on a regular basis? If so, a VGA Video Splitter enables you to bring that extra, professional polish to classroom lectures or business presentations. Show everyone the graphic details that convey your points or seal the deal.

    The tools of the trade.
    Make your company's presence known at your next trade show. Create multiple attention-grabbing video kiosks or senses-shattering walls of video. Attract attendees to your booth, drum up positive word of mouth, and look great doing it. Your bottom line will thank you for it.

    Music to your…eyes.
    Nowadays, concerts aren't just about the music—they're multimedia events. Enhance the show with video images transmitted to multiple, large-screen displays. The show goes on in new and spectacular ways.

    Safety first.
    The factory floor is unsafe for CPUs, but your workers need information to do their jobs. With a VGA Video Splitter, you can distribute news and information to workstations on the floor while maintaining CPUs in separate rooms.

    A variety of choices.
    Other splitter options include 2-, 4-, 6-, and 8-channel, and 115-VAC or 230-VAC units.

    What's included:
  • Splitter
  • (1) 6-ft. (1.8-m) HD15 Male/Male VGA input cable
  • (9) 10-ft. (3-m) Male/Female VGA Video Extension Cables

    This product works with:
  • VGA Video Extension Cable (EVNPS05)
  • 2-Channel VGA Booster (AC074A-R3)
    Questions? Contact our FREE Tech Support.

  • Controls Monitor Type Selection: 4-position front-panel DIP switch
    CE Approval Yes
    Connectors VGA input and outputs to monitors: HD15 F;
    Power input: 5-pin mini DIN
    Indicators (1) Red LED for power
    Power 100–260 VAC, autosensing
    Size 2.5"H x 7.3"W x 3.3"D (6.4 x 18.5 x 8.4 cm)
    Weight 3.5 lb. (1.6 kg)
    This product works with:
  • VGA Video Extension Cable (EVNPS05)
  • 2-Channel VGA Booster (AC074A-R3)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

  • Manuals

    • VGA 2-Channel Video Splitter
      (Version 1)

    Product Data Sheets


    Accessory: EVNPS05-0010-MF

    Premium VGA Video Extension Cable, Male/Female, 10-ft. (3.0-m)

    Premium VGA Video Extension Cable, Male/Female, 10-ft. (3.0-m)

    Double Diamond Warranty
    Extended Double Diamond™ Warranty Available (3 Additional Year)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The VGA 10-Channel Video Splitter, 115/230-VAC comes with a standard 1 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    VGA 8-Channel Video Splitter, 115/230-VAC AC058A-R3 $749.95

    VGA 6-Channel Video Splitter, 115/230 VAC AC159A-R3 $662.95



    Add to Cart

    Price: $849.95

    Quantity Available: 8

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 3.8 lbs.
    HxWxD: 4 x 13 x 17 in.
