Networking > Extenders

click photo to enlarge

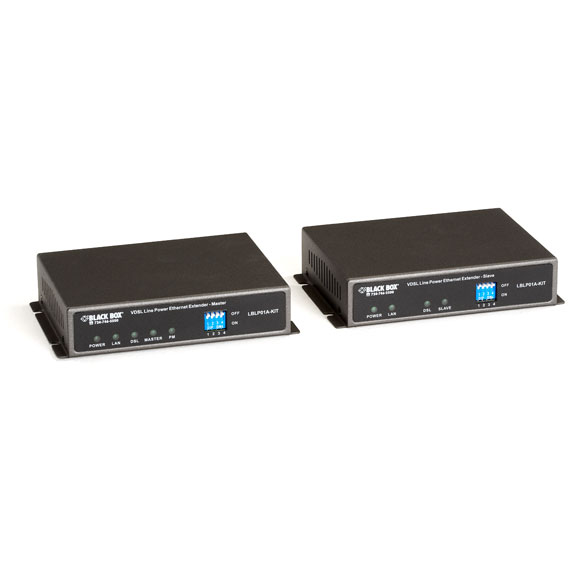

LBLP01A-KIT

Photo may show similar product

Other views

VDSL2 Line Power Ethernet Extender Kit

Combine Ethernet and power on one voice-grade UTP cable.

LBLP01A-KIT

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Supports distances of up to 984 feet (300 m) at 98/53 Mbps on 26 AWG voice-grade UTP cable.
  • Enables you to save money by reusing infrastructure.
  • The central-side unit provides power to the remote unit across the VDSL2 paper.
  • Kit includes two extenders—one for the central side and one for the remote side.
  • Supports 100-Mbps downstream and 60-Mbps upstream for distances up to 500 feet (152.4 m).

  • Description

    VDSL2 Line Power Ethernet Extender Kit


    Quick Facts

  • Supports distances of up to 984 feet (300 m) at 98/53 Mbps on 26 AWG voice-grade UTP cable.
  • Enables you to save money by reusing infrastructure.
  • The central-side unit provides power to the remote unit across the VDSL2 paper.
  • Kit includes two extenders—one for the central side and one for the remote side.
  • Supports 100-Mbps downstream and 60-Mbps upstream for distances up to 500 feet (152.4 m).

  • Further Details

  • Dual autosensing, autonegotiating 10-/100-Mbps Ethernet ports enable you to send two separate Ethernet data streams over the same VDSL2 link.
  • Auto MDI/MDI-X means you never need a crossover cable on the Ethernet side.
  • DIP switches for central side and remote side configuration.
  • Low latency for video and voice applications.
  • Conforms to the Safety-Extra-Low-Voltage (SELV) standard.
  • This high-speed Ethernet extender requires no power outlet on the remote side, because power is provided by the extender on the central side across the UTP cable.

    The VDSL PoE Ethernet Extender Kit features two extenders. The central-side extender is a PoE PSE device, which supplies power to the remote-side extender, which is a PoE PD device. This eliminates the need to supply a spare power outlet for the remote-side extender.

    Installation is easy—just connect the extenders, then configure them using simple DIP switches.

    What’s included:
    (1) VDSL2 Line Power Ethernet Extender (Central)
    (1) VDSL2 Line Power Ethernet Extender (Remote)
    (1) 12V DC, 2A Power Adapter for Central unit
    (1) CD containing the user’s manual


    Technical Specifications for VDSL2 Line Power Ethernet Extender Kit:

    Environmental — Operating temperature: 32 to 122° F (0 to 50° C);
    Humidity: (2) 5–95%, noncondensing
    CE Approval — Yes
    Connectors — DSL: (1) RJ-11;
    Ethernet: (1) RJ-45
    Indicators — LEDs: Central Side: (1) Power, (1) LAN, (1) DSL, (1) Master, (1) PM;
    Remote Side: (1) Power, (1) LAN, (1) DSL, (1) Slave
    Power (Input) — Central side: 12 /V DC 2A from a 110/220-VAC, 50/60 Hz power supply;
    Remote side: 10 mA@-48VDC from central side over RJ-11 connection
    Size — 0.8"H x 4.7"W x 3.5"D (2 x 12 x 9 cm)
    What’s included:
    (1) VDSL2 Line Power Ethernet Extender (Central)
    (1) VDSL2 Line Power Ethernet Extender (Remote)
    (1) 12V DC, 2A Power Adapter for Central unit
    (1) CD containing the user’s manual


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for VDSL2 Line Power Ethernet Extender Kit:

    Manuals

    • VDSL2 Line Power Ethernet Extender Kit
      (Version 1)

    Application Diagrams


    Connect your VDSL2 Line Power Ethernet Extender Kit with:

    Accessory: EVNSL81-0006

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Blue, 6-ft. (1.8-m)

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Blue, 6-ft. (1.8-m)
