Networking > PoE

click photo to enlarge

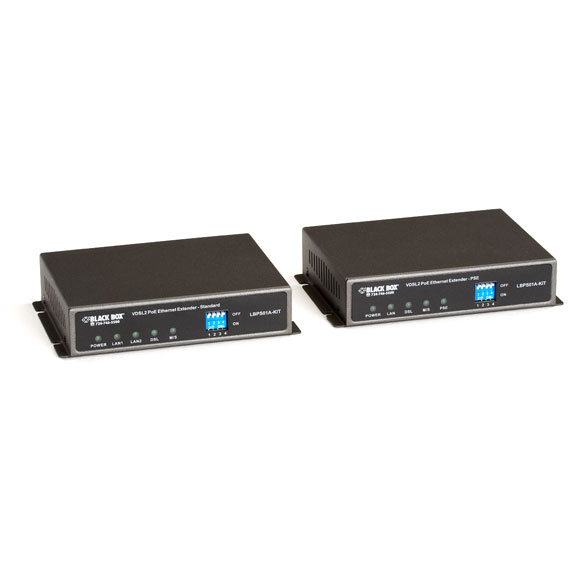

LBPS01A-KIT

Photo may show similar product

Other views

VDSL PoE Ethernet Extender Kit, PSE

Integrate this Ethernet extender into your PoE network.

LBPS01A-KIT

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Kit includes two extenders—one of which acts as PoE power source equipment (PSE), the other is a standard extender.
  • Extends 10BASE-T/100BASE-TX Ethernet across ordinary voice-grade copper wire.
  • Supports 100-Mbps downstream and 60-Mbps upstream for distances up to 500 feet (152.4 m).

  • Description

    VDSL PoE Ethernet Extender Kit, PSE


    Quick Facts

  • Kit includes two extenders—one of which acts as PoE power source equipment (PSE), the other is a standard extender.
  • Extends 10BASE-T/100BASE-TX Ethernet across ordinary voice-grade copper wire.
  • Supports 100-Mbps downstream and 60-Mbps upstream for distances up to 500 feet (152.4 m).

  • Further Details

  • Supports distances of up to 4000 feet (1219 m) at 28/0.3 Mbps.
  • Autosensing, autonegotiating 10-/100-Mbps Ethernet port.
  • Auto MDI/MDI-X means you never need a crossover cable on the Ethernet side.
  • DIP switches for master/slave configuration.
  • Low latency for video and voice applications.

  • This high-speed Ethernet extender enables you to power PoE devices without the need for an additional power outlet.

    The VDSL PoE Ethernet Extender Kit features two extenders, one of which is a PoE PSE device, which supplies power to a PoE PD device such as an IP camera or wireless access point. This enables you to seamlessly integrate the extenders into a PoE infrastructure and eliminates the need to supply a spare power outlet for distant network devices.

    Installation is easy—just connect the extenders then configure them using simple DIP switches.

    What’s included:
    (1) VDSL PoE Ethernet Extender PSE (PSE Unit)
    (1) VDSL PoE Ethernet Extender PSE (Standard Unit)
    (1) 12V DC, 2A Power Adapter for VDSL2 PoE Ethernet Extender, PSE (PSE Unit)
    (1) 5V DC, 1A Power Adapter for VDSL2 PoE Ethernet Extender, PSE (Standard Unit)
    (1) CD containing the user’s manual


    Technical Specifications for VDSL PoE Ethernet Extender Kit, PSE:

    Environmental — Operating temperature: 32 to 122° F (0 to 50° C);
    Humidity: (2) 5–95%, noncondensing
    CE Approval — Yes
    Connectors — PSE unit: DSL: (1) RJ-11; Ethernet: (1) RJ-45;
    Standard unit: DSL: (1) RJ-11; Ethernet: (2) RJ-45
    Indicators — LEDs: PSE unit: (1) Power, (1) LAN, (1) DSL, (1) M/S, (1) PSE;
    Standard unit: (1) Power, (1) LAN1, (1) LAN2, (1) DSL, (1) M/S
    Power — PSE Unit: Input: 12 VDC, 2A from 110/220-VAC, 50/60 Hz power supply; Output: 100 mA@-48 VDC IEEE 802.3af compliant power;
    Standard unit: Input: 5 VDC, 1A from 110/220-VAC, 50/60 Hz power supply
    Size — 0.8"H x 4.7"W x 3.5"D (2 x 12 x 9 cm)
    What’s included:
    (1) VDSL PoE Ethernet Extender PSE (PSE Unit)
    (1) VDSL PoE Ethernet Extender PSE (Standard Unit)
    (1) 12V DC, 2A Power Adapter for VDSL2 PoE Ethernet Extender, PSE (PSE Unit)
    (1) 5V DC, 1A Power Adapter for VDSL2 PoE Ethernet Extender, PSE (Standard Unit)
    (1) CD containing the user’s manual


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for VDSL PoE Ethernet Extender Kit, PSE:

    Manuals

    • VDSL PoE/PSE Ethernet Extender Kit Manual
      Manual for the LBPS01A-KIT (Version 1)

    Product Data Sheets

    Application Diagrams


    Connect your VDSL PoE Ethernet Extender Kit, PSE with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $46.30

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $92.59

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    VDSL PoE Ethernet Extender Kit, PSE LBPS01A-KIT $462.95

    VDSL PoE Ethernet Extender Kit, PD LBPD01A-KIT $390.95

    G.SHDSL Two-Wire Ethernet Network Extender Kit LR0201A-KIT $926.95
