Networking > PoE

click photo to enlarge

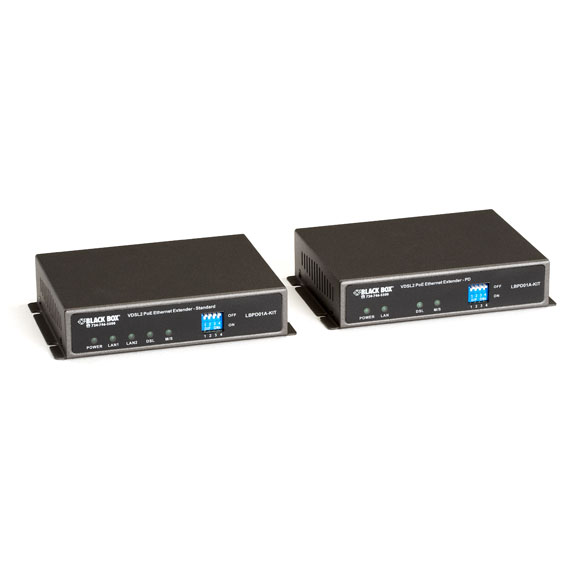

LBPD01A-KIT

Photo may show similar product

Other views

VDSL PoE Ethernet Extender Kit, PD

Integrate this Ethernet extender into your PoE network.

LBPD01A-KIT

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Kit includes two extenders—one with standard power and one that’s a PoE powered device (PD).
  • The PD extender draws its power from a PoE switch or midspan power injector, enabling you to easily integrate it into a PoE infrastructure without the need to supply another power outlet.
  • Extends 10BASE-T/100BASE-TX Ethernet across ordinary voice-grade copper wire.
  • Supports 100 Mbps downstream and 60 Mbps upstream for distances up to 500 feet (152.4 m).

  • Description

    VDSL PoE Ethernet Extender Kit, PD


    Quick Facts

  • Kit includes two extenders—one with standard power and one that’s a PoE powered device (PD).
  • The PD extender draws its power from a PoE switch or midspan power injector, enabling you to easily integrate it into a PoE infrastructure without the need to supply another power outlet.
  • Extends 10BASE-T/100BASE-TX Ethernet across ordinary voice-grade copper wire.
  • Supports 100 Mbps downstream and 60 Mbps upstream for distances up to 500 feet (152.4 m).

  • Further Details

    This VDSL PoE Ethernet Extender Kit features two extenders, one of which is a PoE PD device powered by a PSE device such as our 8-Port Unmanaged 10/100 Fast Ethernet Switch with 4 PoE Ports (LPB208A-R2). This enables you to seamlessly integrate the extenders into a PoE infrastructure and eliminates the need for a spare power outlet on one end of the link.

    Installation is easy—just connect the extenders then configure them using simple DIP switches.

    What’s included:
    (1) VDSL PoE Ethernet Extender PD (PD Unit)
    (1) VDSL PoE Ethernet Extender PD (Standard Unit)
    (1) 5V DC, 1A Power Adapter for VDSL2 PoE Ethernet Extender PD (Standard)
    (1) CD containing the user’s manual


    Technical Specifications for VDSL PoE Ethernet Extender Kit, PD:

    Environmental — Operating temperature: 32 to 122° F (0 to 50° C);
    Humidity: 5–95%, noncondensing
    CE Approval — Yes
    Connectors — PD Unit: DSL: (1) RJ-11; Ethernet: (1) RJ-45
    Standard Unit: DSL: (1) RJ-11; Ethernet: (2) RJ-45
    Indicators — LEDs: PD Unit: (1) Power, (1) LAN, (1) DSL, (1) M/S
    Standard Unit: (1) Power, (1) LAN1, (1) LAN2, (1) DSL, (1) M/S
    Power — PD unit: 100mA@-48VDC from IEEE 802.3af PSE or PoE injector;
    Standard unit: 5 VDC, 1 amp from 110/220-VAC, 50/60 Hz power supply
    Size — 0.8"H x 4.7"W x 3.5"D (2 x 12 x 9 cm)
    What’s included:
    (1) VDSL PoE Ethernet Extender PD (PD Unit)
    (1) VDSL PoE Ethernet Extender PD (Standard Unit)
    (1) 5V DC, 1A Power Adapter for VDSL2 PoE Ethernet Extender PD (Standard)
    (1) CD containing the user’s manual


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for VDSL PoE Ethernet Extender Kit, PD:

    Manuals

    • VDSL PoE/PD Ethernet Extender Kit User Manual
      User Manual for the LBPD01A-KIT

    Application Diagrams


    Connect your VDSL PoE Ethernet Extender Kit, PD with:

    Accessory: EVNSL81-0006

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Blue, 6-ft. (1.8-m)

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Blue, 6-ft. (1.8-m)

    Accessory: LPB208A-R2

    8-Port Unmanaged 10/100 Fast Ethernet Switch with 4 PoE Ports

    8-Port Unmanaged 10/100 Fast Ethernet Switch with 4 PoE Ports

    Accessory: TS150A-R2

    Power Panel CAT5/CAT6 DVM and Network PoE Tester

    Power Panel CAT5/CAT6 DVM and Network PoE Tester

    Accessory: PD-TESTER

    PowerDsine PoE Tester, RJ-45

    PowerDsine PoE Tester, RJ-45
