Infrastructure Hardware > Patch Panels

click photo to enlarge

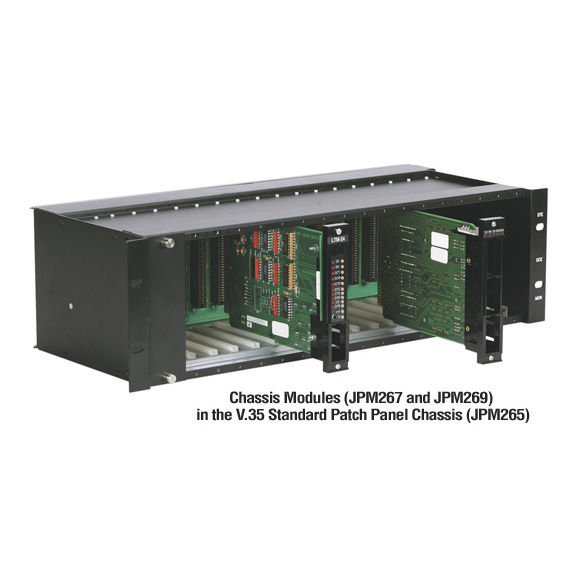

JPM267

Photo may show similar product

Other views

V.35 Standard Patch Panel Chassis Modules, Patch Module

Modules for testing V.35 DCE/DTE equipment through the chassis.

JPM267


Lifetime Warranty

Product Highlights

  • Hot-swappable. Adding or removing a module will not cause an interruption in service.
  • Both modules include circuit activity LEDs.
  • Transparent to all protocols (Physical layer).
  • Guaranteed for life!

  • Description

    V.35 Standard Patch Panel Chassis Patch Module


    Quick Facts

  • Hot-swappable. Adding or removing a module will not cause an interruption in service.
  • Both modules include circuit activity LEDs.
  • Transparent to all protocols (Physical layer).
  • Guaranteed for life!

  • Further Details

  • V.35 Patch Module (JPM267) includes a front-panel monitor patch cavity, a front-panel DCE patch cavity, a front panel DTE patch cavity, and a connection to a set of rear chassis DCE/DTE ports (M/34). It enables you to make patches from the DTE and DCE ports on the card’s rear to other patch cards in the chassis using the optional JPM258 and JPM259 cable.
  • V.35 Test Module (JPM269) is a V.35 monitoring card that’s installed in the leftmost slot of the chassis. It features associated test points, a front-panel monitor patch cavity, a connection to a rear chassis monitor port for optional external test equipment, a lamp test button, and a total of 10 monitoring LEDs.

  • Technical Specifications for V.35 Standard Patch Panel Chassis Modules, Patch Module:

    These products work with:
  • V.35 Standard Patch Panel Chassis (JPM265, JPM265E)
  • Patch Cables (JPM258–JPM259)
  • V.35 to RS-232 (DB25) Gender Chargers (FA058–FA059)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for V.35 Standard Patch Panel Chassis Modules, Patch Module:


    Connect your V.35 Standard Patch Panel Chassis Modules, Patch Module with:

    Accessory: JPM258

    RS-232 and V.35 Standard Patch Panel Cables, 2-ft. (0.6-m)

    RS-232 and V.35 Standard Patch Panel Cable, 2-ft. (0.6-m)
